Simrad NSS16 EVO3S User Manual

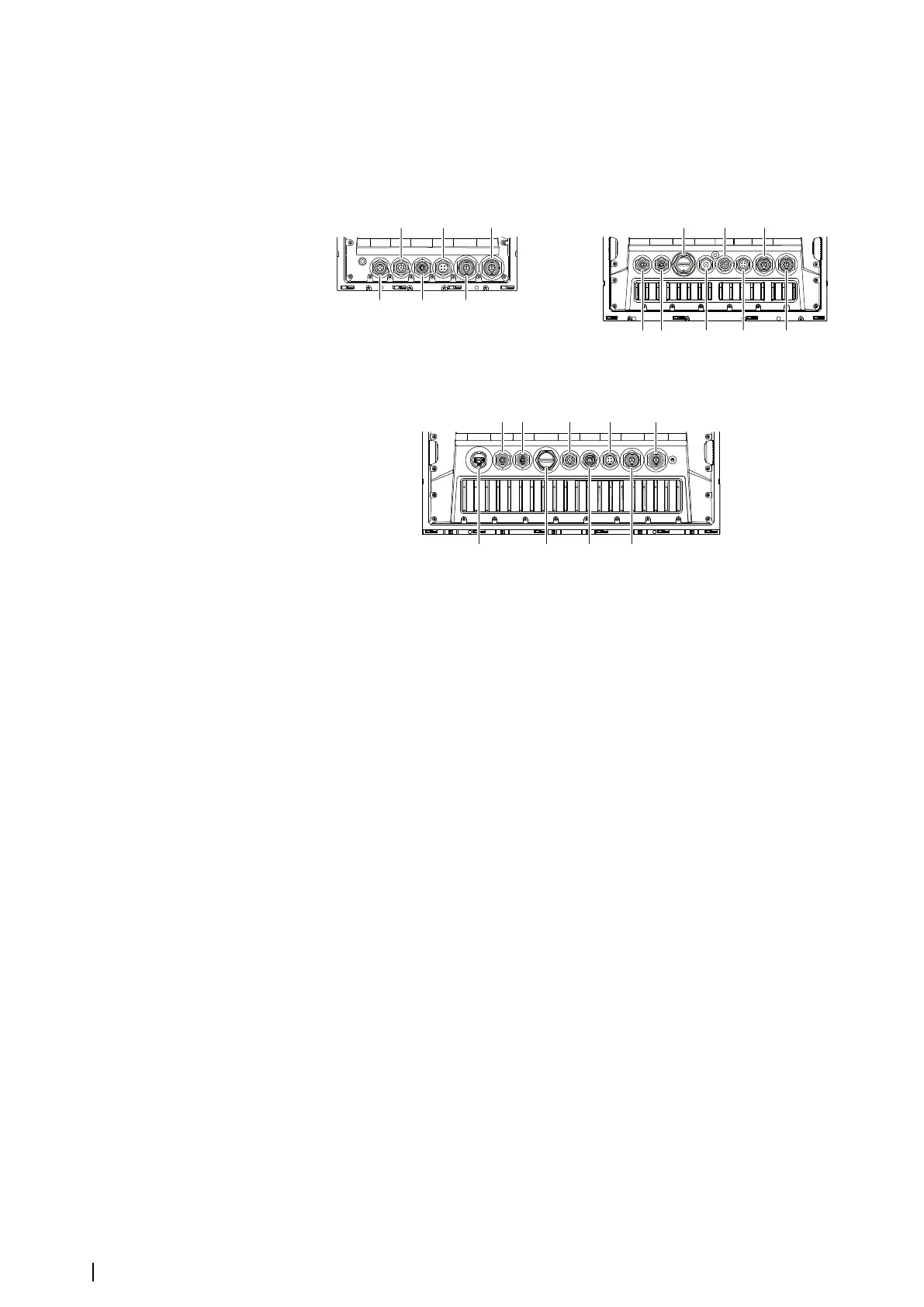

Connectors
Connectors
9" units
E
F
SONAR 2
SONAR 1
POWERE
THERNETVIDEONMEA2000
D
C
A
B
12" units
ETHERNET ETHERNET HDMI VIDEO NMEA2000
POWER
SONAR 1
SONAR 2
A A
G
B
C
D E
F
16" units
ETHERNET ETHERNETUSB HDMI
VIDEO NMEA2000 POWER SONAR 1 SONAR 2
AA
H
G
BC
D E
F
A Ethernet - Ethernet network
B Power - power, power control, and external alarm
C Video- composite video and NMEA0183
D NMEA 2000 - NMEA 2000 data
E Sonar CH1
F Sonar CH2
G HDMI - HDMI video output
H USB connector - mouse, keyboard or mass storage
10
Introduction | NSS evo3S Installation Manual

Simrad NSS16 EVO3S Specifications

General

Brand	Simrad
Model	NSS16 EVO3S
Category	GPS
Language	English
