Talkers and listeners
Only one talker (output device) can be connected to a serial input (RX) on the unit, in
accordance with the NMEA0183 protocol. However, an output port (TX) on the unit may be
connected to up to three listener (receiver) devices, dependent on the hardware capabilities
of the receiver.
Ethernet
The Ethernet port(s) can be used for transfer of data and synchronization of user created
data. It is recommended that each device in the system is connected to the Ethernet
network.
No special setup is required for establishing an Ethernet network.

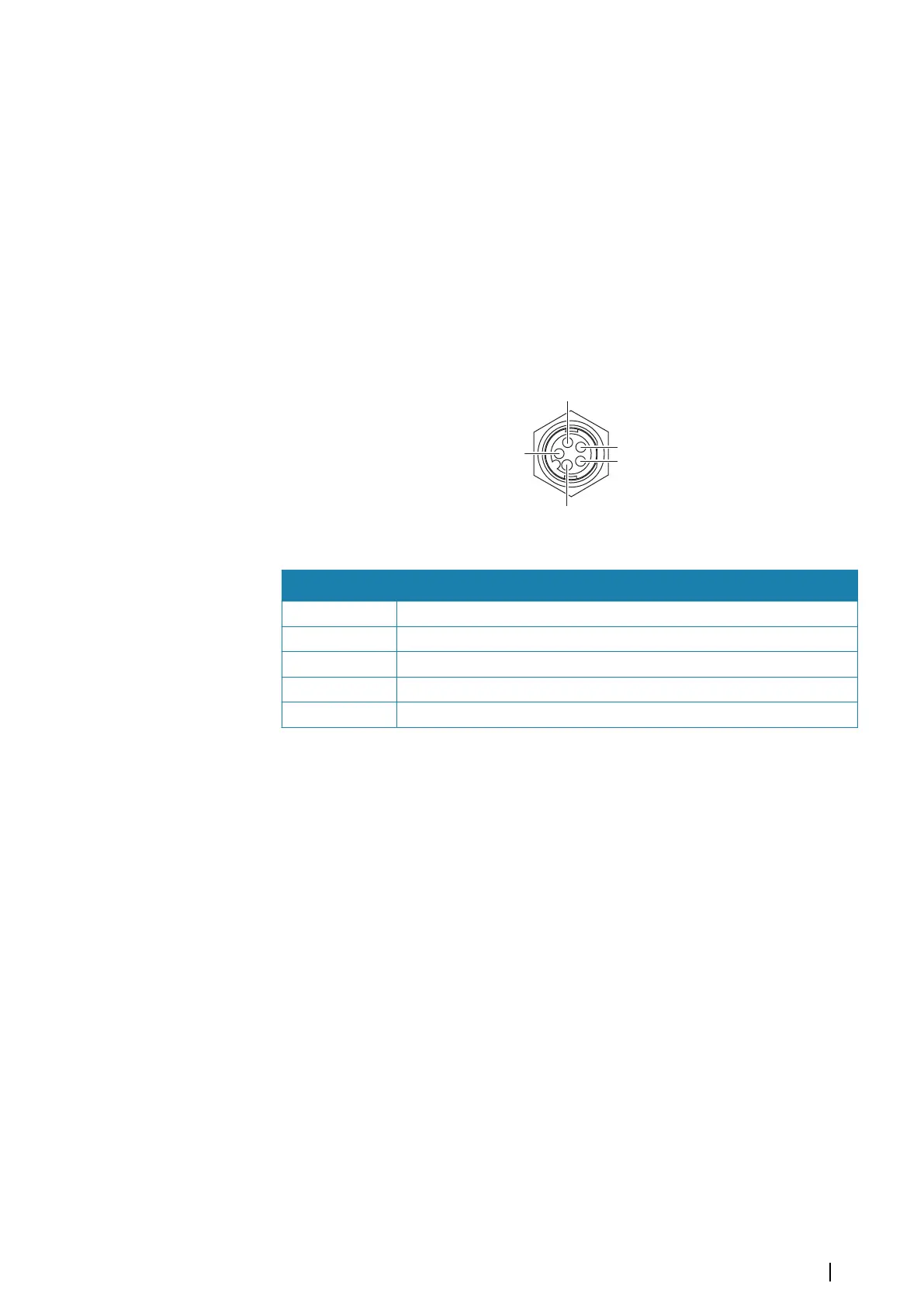

Ethernet connector details
1
2
3
4
5
Unit socket (female)
Pin Purpose
1 Transmit positive TX+
2 Transmit negative TX-
3 Receive positive RX+
4 Receive negative RX-
5 Shield
Ethernet expansion device
Connection of network devices can be made via an Ethernet expansion device. Additional
expansion devices can be added to provide the required number of ports.
Wiring | NSS evo3S Installation Manual
21
