Simrad NSS16 EVO3S - Dimensional Drawings

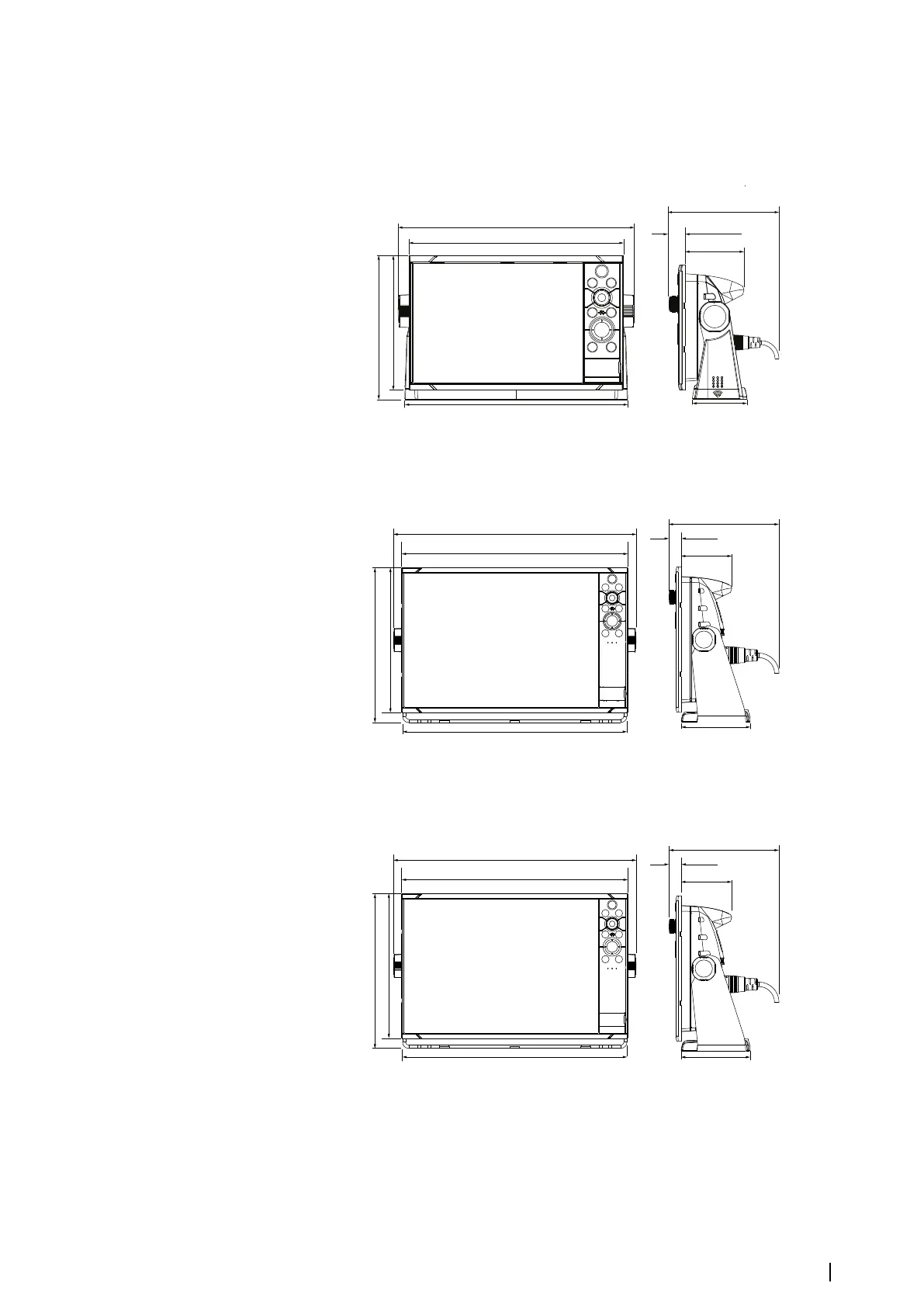

Dimensional drawings
9" unit
310.9 mm (12.24”)
287.0 mm (11.30”)
179.5 mm (7.07”)
166.3 mm (6.55”)
131.0 mm (5.15”)
(2.74”)
18.5 mm (0.73”)
69.6 mm
66.6 mm (2.62”)
296.2 mm (11.66”)
12" unit
377.1 mm (14.85”)
351.5 mm (13.84”)
240.6 mm (9.47”)
170.3 mm (6.70”)
78.1 mm
(3.07”)
225.3 mm (8.87”)
18.5 mm (0.73”)
349.0 mm (13.74”)
106.7 mm (4.
20”)
16" unit
462.1 mm (18.19”)
436.5 mm (17.19”)
263.9 mm (10.39”)
170.3 mm (6.70”)
79.6 mm
256.0 mm (10.08”)
434.0 mm (17.09”)
18.5 mm (0.73 ”)
(3.13”)
106.8 mm (4.21”)
