Panel mounting
Refer to the separate mounting template for panel mounting instructions.

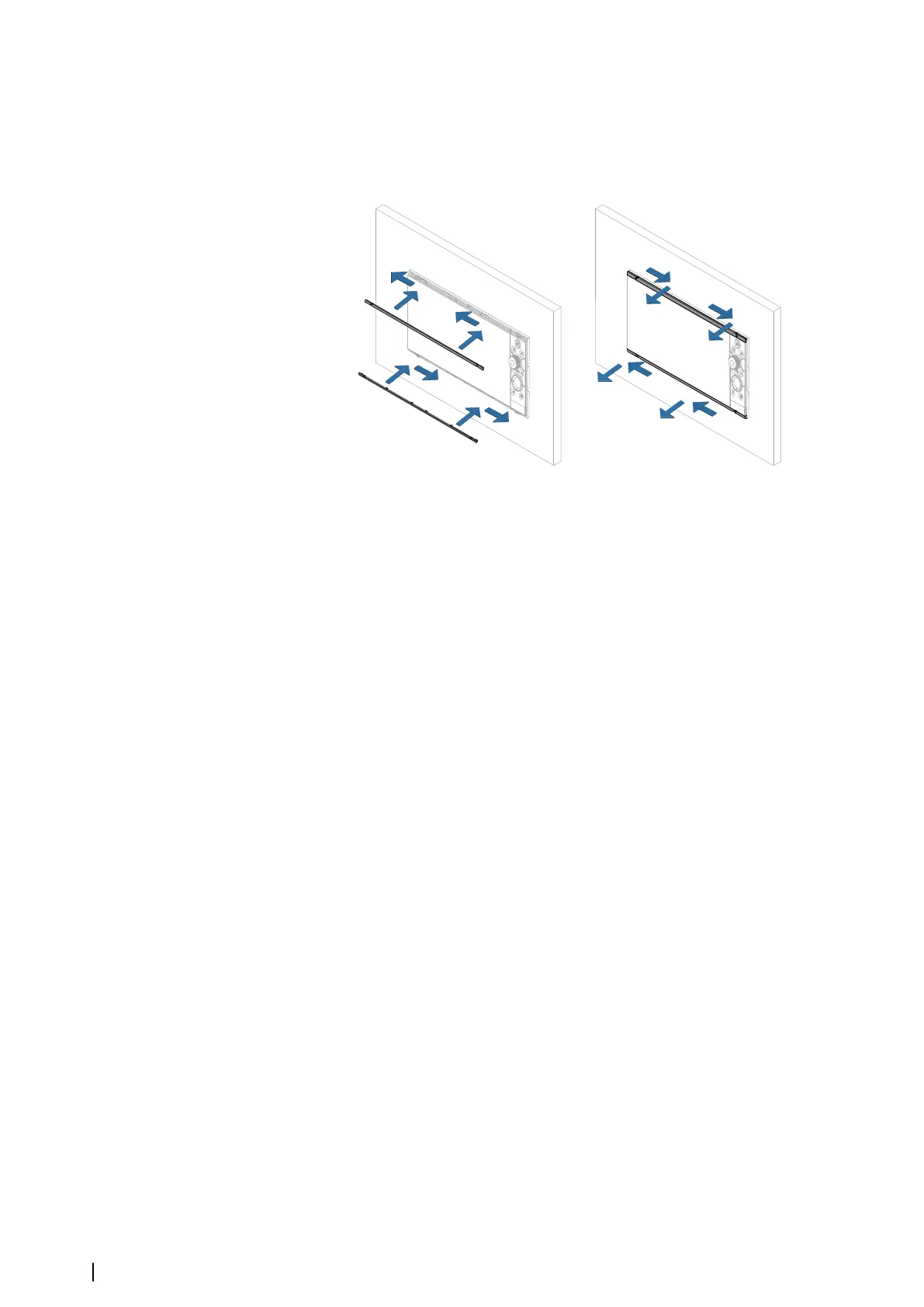

Bezel fitment and removal
Ú
Note: The unit in the illustration is an example only.
14
Installation | NSS evo3S Installation Manual
