Introduction

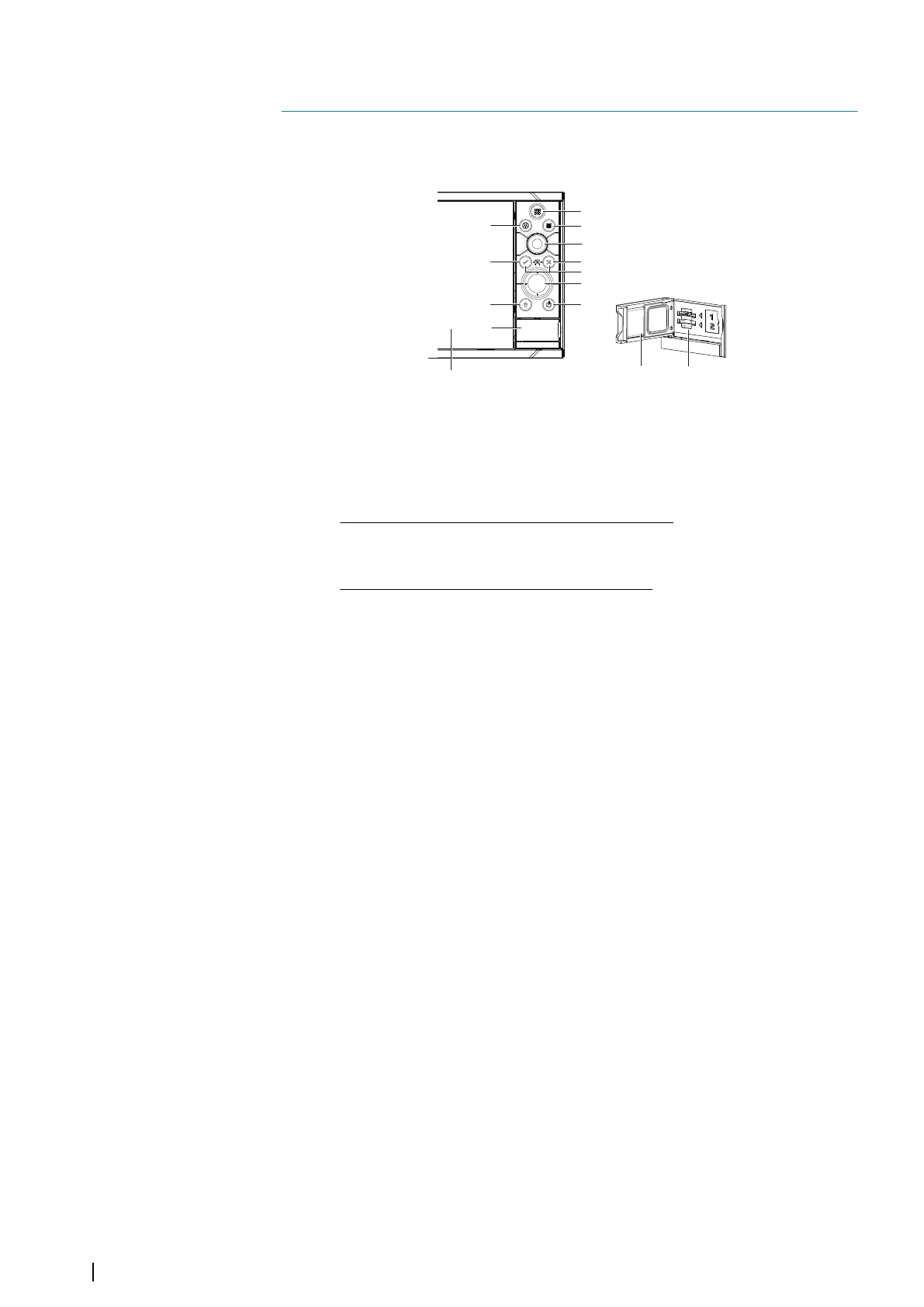

Front controls
1
11
5
2
7
3
4
6
9
10
12
13
12
8
1 Touch screen
2 Pages/Home - press to open the Home page for page selection and setup
options
3 WheelKey - user configurable key, refer to "Configuring the WheelKey" on page 19.
Default without an autopilot connected to the system:
• Short press: toggles between panels on split screen
• Long press: maximizes active panel on split screen
Default with an autopilot connected to the system:
• Short press: opens the autopilot controller and puts the autopilot in standby
mode
• Long press: toggles between panels on split screen
4 Menu key - press to display the active panel's menu
5 Rotary knob - turn to zoom or scroll the menu, press to select an option
6 Enter key - press to select an option or to save settings
7 Exit key - press to exit a dialog, return to previous menu level, and clear the cursor
from the panel
8 MOB - press simultaneously the Enter and Exit keys to create a MOB at the
vessel's position
9 Arrow keys - press to activate the cursor or to move the cursor
Menu operation: press to navigate through menu items and to adjust a value
10 Mark key - press to place waypoint at vessel position or at cursor position when
cursor is active
11 Power key - press and hold to turn the unit ON/OFF
Press once to display the System Controls dialog, additional presses to toggle
through three default dimming levels
12 Card reader door
13 Dual card reader slots
1
10
Introduction | NSS evo3 Operator Manual
