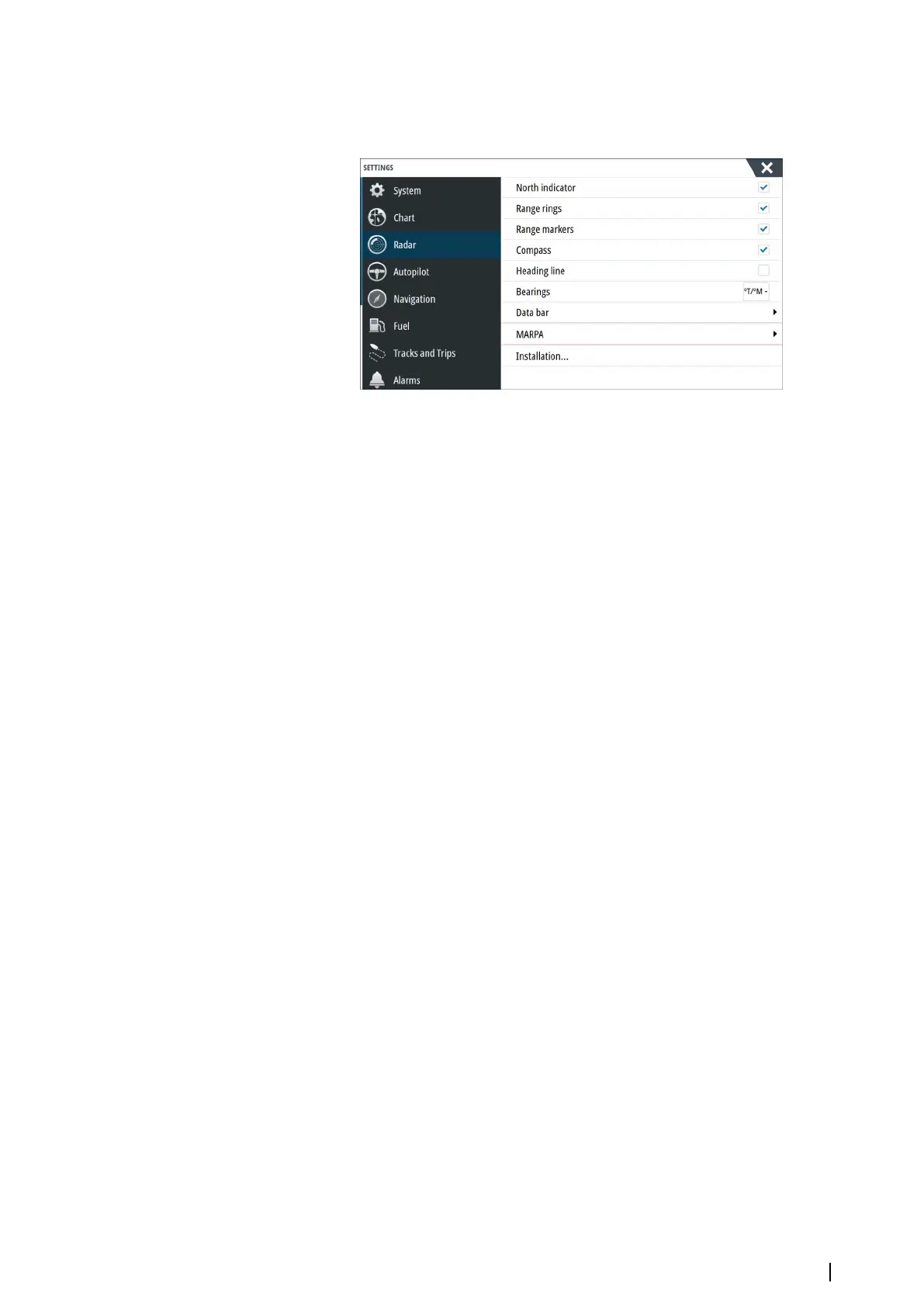

Radar settings
Radar symbology
You can select which optional radar items that should be turned on/off collectively from the
menu. Refer to the Radar panel illustration.
Bearings
Used for selecting whether the radar bearing should be measured in relation to True/
Magnetic North (°T/°M) or to your relative heading (°R).
Data bar
Turns on/off the radar data bar. Refer to the radar panel illustration.
The data bar can show up to 3 targets, arranged with the most dangerous targets on top.
You can select to show MARPA targets on top and before any AIS targets, even if the AIS
targets are closer to your vessel.
MARPA settings
You can define the length of the MARPA trail making it easier to follow target movement.
A circle can be added around your vessel to present the danger zone. The radius of the ring is
the same as the closest point of approach as set in the Dangerous Vessels dialog. Refer to
"Defining dangerous vessels" on page 102. An alarm triggers if a vessel is tracking into your safe
zone.
Installation
The Installation option is used for radar installation, described in the separate Radar or NSS
evo3 Installation manuals.
Radar | NSS evo3 Operator Manual
73
