Radar
The radar panel can be set up as a full screen view or combined with other panels.
The radar image can also be displayed as an overlay on a chart panel. For more information,
see "Chart overlay" on page 29.
Ú
Note: Radar overlay requires data from a heading sensor or compass to ensure proper
orientation with the chart.

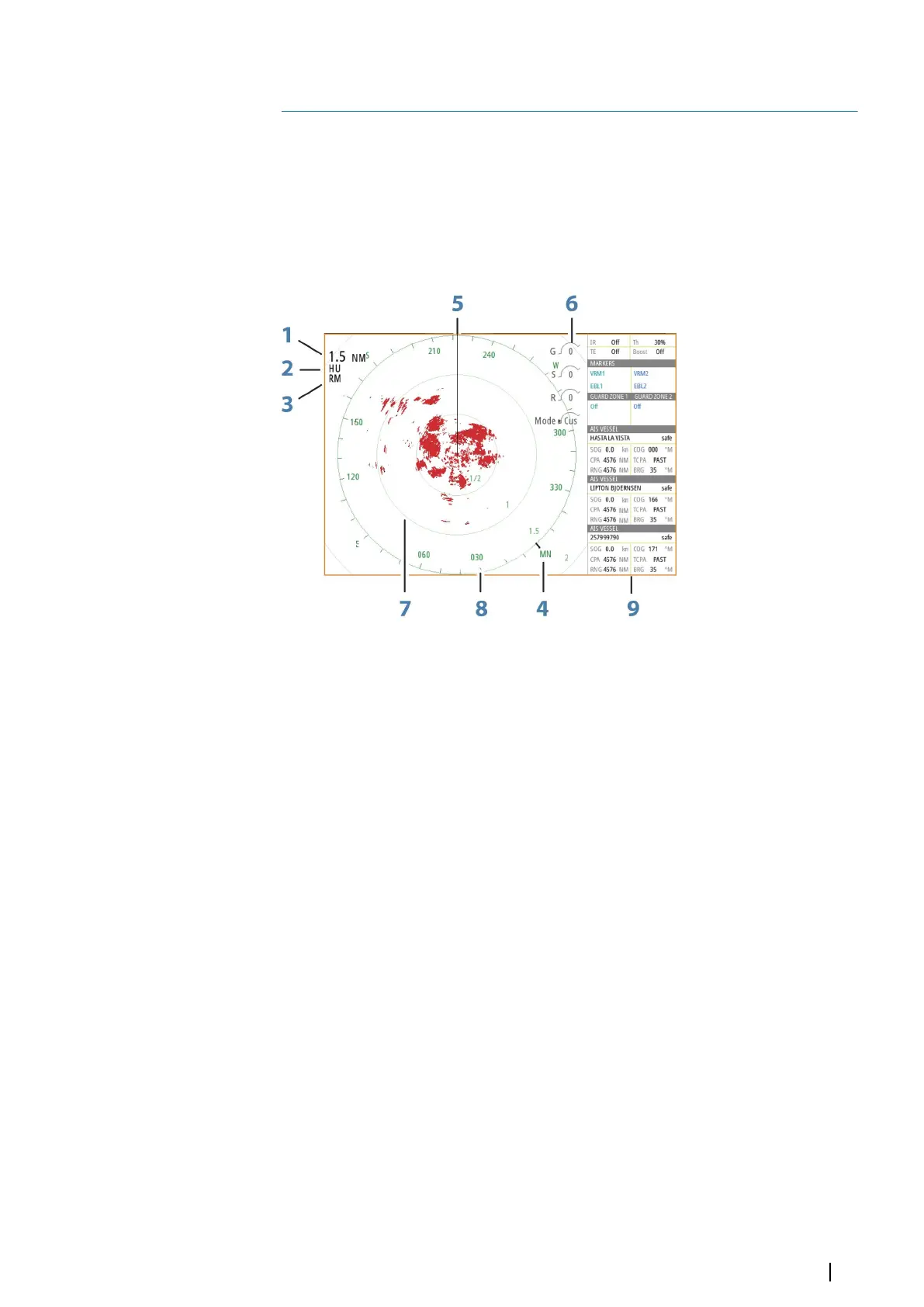

The radar panel
1 Range
2 Orientation
3 Motion
4 Compass*
5 Heading line*
6 Rotary controls
7 Range rings*
8 Range markers*
9 Data bar
* Optional radar symbology.
Radar symbology can be turned ON/OFF collectively from the Radar menu, or individually as
described in "Radar settings panel" on page 73.
Dual radar
You can connect to any combination of two supported radars and see both radar images at
the same time.
Ú
Note: Interference will be seen on the Broadband Radar on most ranges when a pulse or
Halo radar, and a Broadband radar are transmitting at the same time on the same boat.
We recommend to only transmit on one radar at a time. For example, transmit
Broadband radar for typical navigational usage, or pulse or Halo radar to locate weather
cells, defined coastlines at a distance and to trigger Racons.
You can select a dual radar panel by pressing and holding the Radar application button on
the Home page, or by creating a favorite page with two radar panels.
9
Radar | NSS evo3 Operator Manual
63
