1 Home button
2 Application panel
3 Instrument bar
Navigation and sensor information. The bar can be turned off and it can be
configured by the user.
4 Menu button
5 Zoom buttons
6 System controls dialog
Quick access to basic system settings.
Display the dialog by a short press on the Power key or by swiping down from top
of the screen.
7 Status bar
8 Dialog
Information to or input from the user.
9 Alarm message
Displayed if dangerous situations or system faults occur.
10 Menu
Panel specific menu.
Split pages
You can have up to 4 panels on each page.

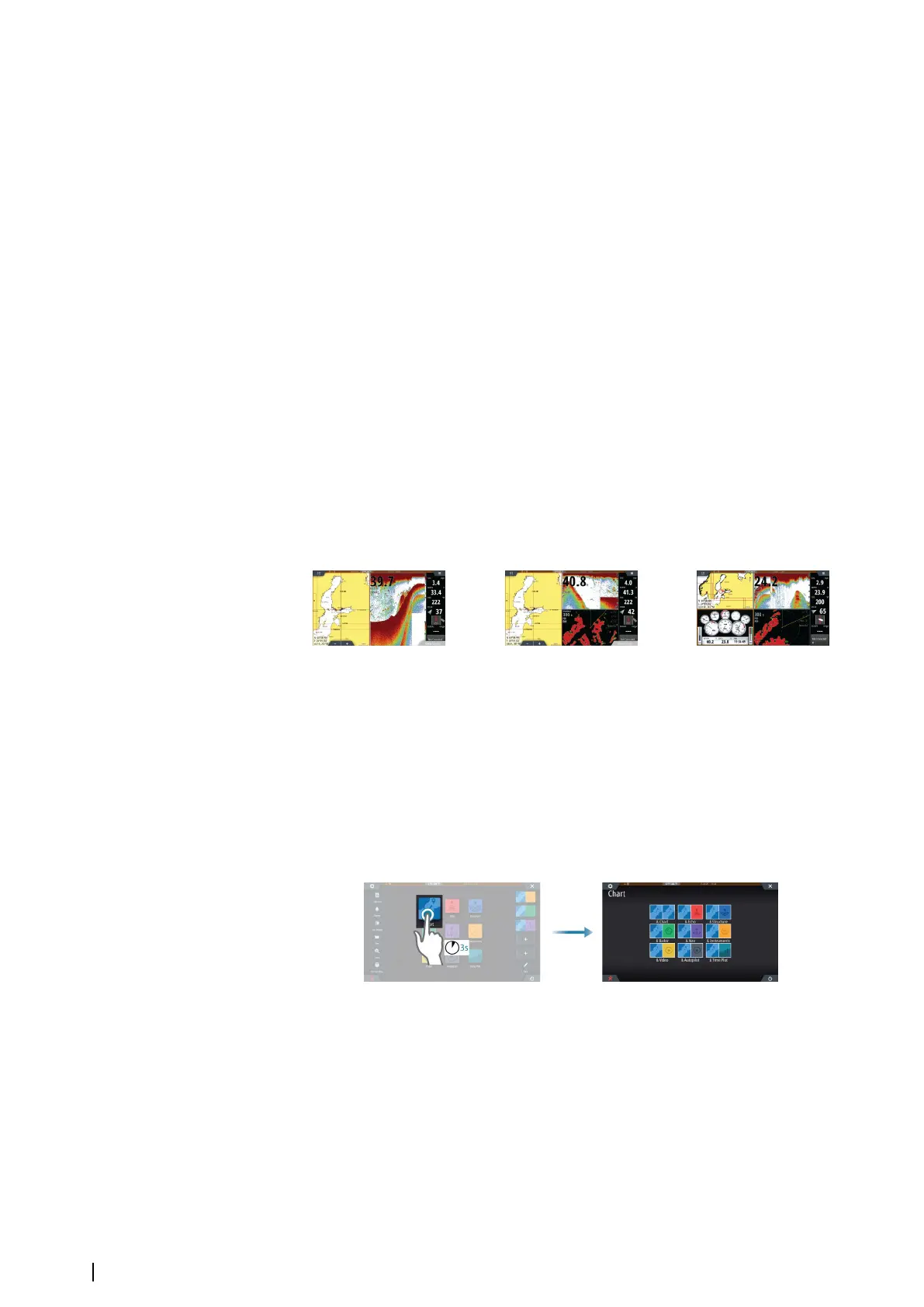

2 panels page 3 panels page
4 panels page
Panel sizes in a split page can be adjusted from the System Controls dialog.
Pre-configured split pages
Each full screen application has several pre-configured split pages, featuring the selected
application combined with each of the other panels.
Ú
Note: The number of pre-configured split pages cannot be changed, and the pages
cannot be customized or deleted.
Access a pre-configured split page by pressing and holding the main panel button.
Favorite pages
All preconfigured favorite pages can be modified and deleted, and you can create your own.
You can have a total of 12 favorite pages.
For more information, refer to "Adding new favorite pages" on page 20.
Integration of 3
rd
party devices
Several 3
rd
party devices can be connected to the NSS evo3. The applications are displayed
on separate panels or integrated with other panels.
