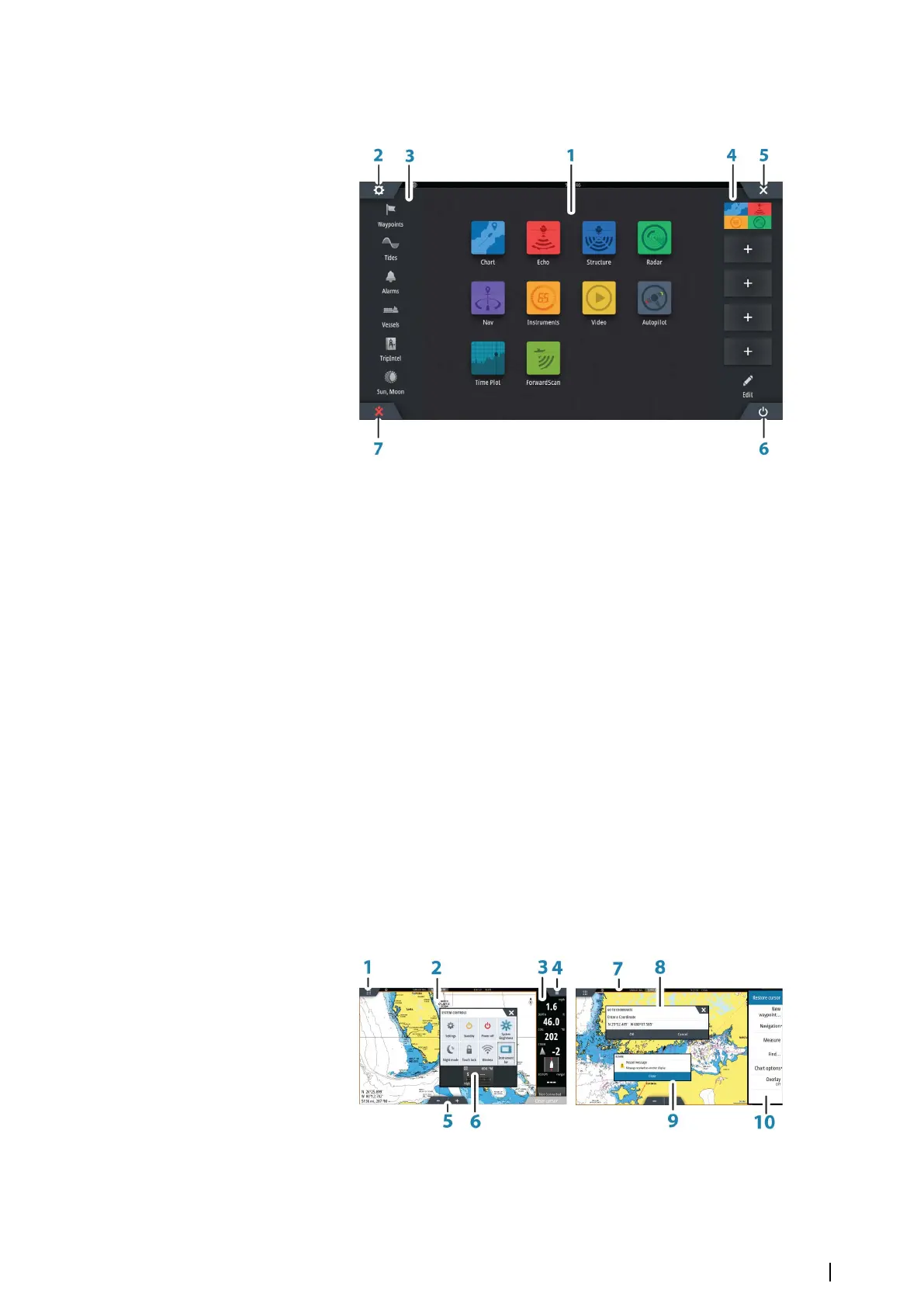

The Home page

1 Applications

Select a button to display the application as a full page panel.

Press and hold a button to display pre-configured split page options for the

application.

2 Settings button

Select to access Settings dialogs.

3 Tools

Select a button to access dialogs used for carrying out a task, or for browsing

stored information.

4 Favorites

Select a button to display the panel combination.

Press and hold a favorite button to enter edit mode for the Favorites panel.

5 Close button

Select to exit the Home page and return to the previous active page.

6 Power button

Select to power off the unit.

7 Man Over Board (MOB) button

Select to save a Man Over Board (MOB) waypoint at the current vessel position.

Application pages

Each application connected to the system is presented on panels. The application can be

presented as a full page, or in combination with other panels in a multiple panel page.

All application pages are accessed from the Home page.

Introduction | NSS evo3 Operator Manual
