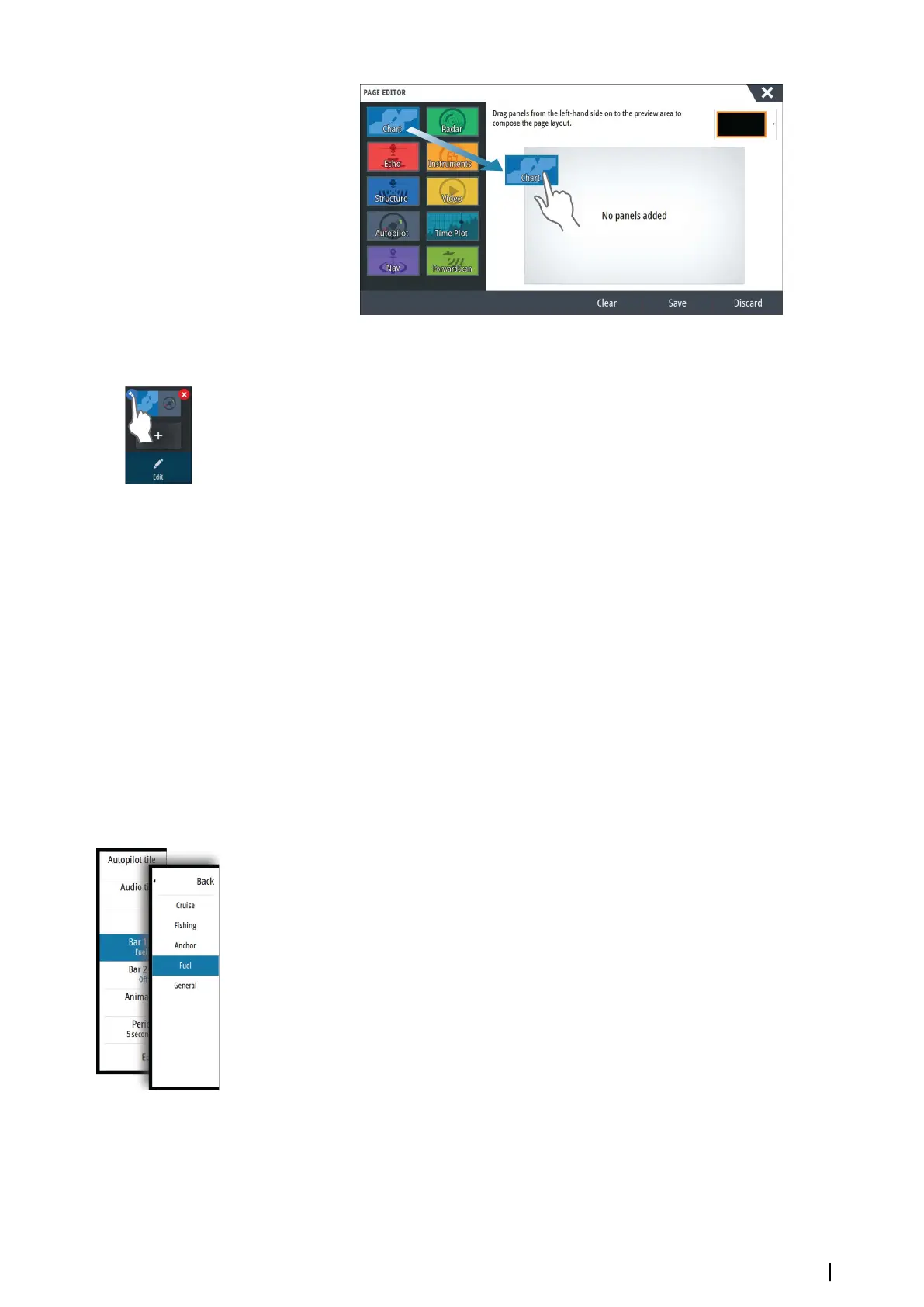

Edit favorite pages
1. Select the edit icon in the Favorite panel:
-
Select the X icon on a favorite icon to remove the page
- Select the tool icon on a favorite icon to display the page editor dialog
2. Add or remove panels in the page editor dialog
3. Save or discard your changes to leave the favorite edit mode.
Setting the appearance of the Instrument bar
Data sources connected to the system can be viewed in the Instrument bar.
You can configure the Instrument bar to display either one or two bars. If you specify to
display two bars you can set it to alternate the bars automatically. You can specify the
information displayed in the instrument bars.
Use the menu to select a predefined activity for one or both of the bars. When an activity bar
is selected, predefined instrument gauges are displayed in the instrument bar.
You can turn the Instrument bar off from the System controls dialog.
Ú
Note: This only turns the Instrument bar off for the current page.
Turning the Instrument bar on/off
1. Activate the System controls dialog
2. Deactivate/activate the instrument bar icon to toggle the bar on and off.
Select a predefined activity bar
1. Activate the Instrument bar by selecting it
2. Select the MENU button to open the menu
3. Select Bar 1 or Bar 2 and then a predefined activity bar.
Predefined gauges are displayed in the instrument bar. You can change a gauge in the
activity Instrument bar, refer to Edit the content of the Instrument bar below.
Edit the content of the Instrument bar
1. Activate the Instrument bar by selecting it
2. Select the MENU button to open the menu
3. Select Edit to change an instrument gauge followed by the gauge you want to change
4. Select the content you want to display from the Choose Data dialog
5. Select Menu and then Finish editing to save your changes.
Customizing your system | NSS evo3 Operator Manual
21
