TCPIP
CAN NETWORK
Servo Control
Board #3
Servo Control
Board #2
Servo Control
Board #1
Motion Computer
3 x Boards
Flash Rom Fitted
Sega Game System
NAOMI 2 or Triforce,
Dimm Bd, GD Rom
Drive, I/O Bd, PSU.
Game
Monitor
Audio
System
Handle
Pedal

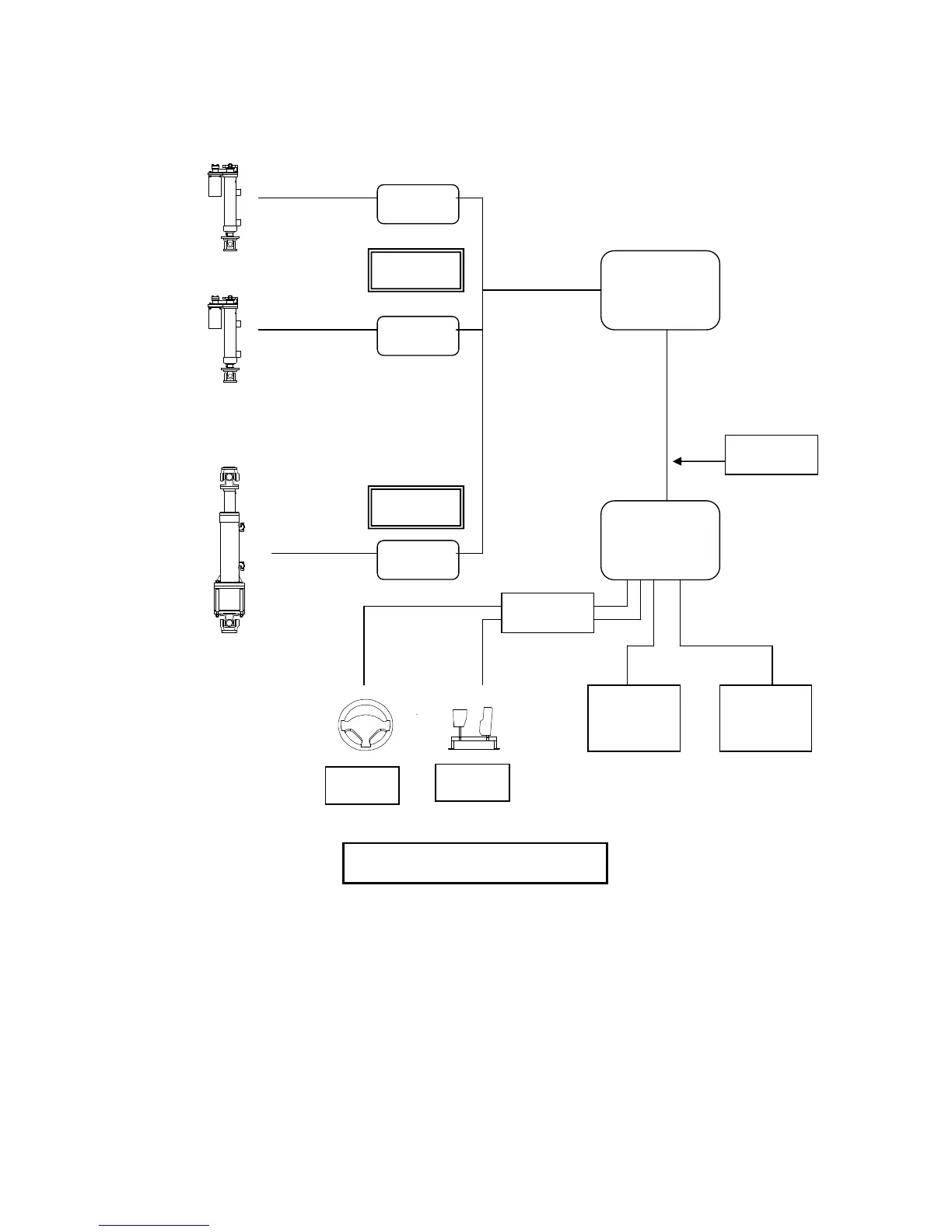

SYSTEM DIAGRAM OF CYCRAFT
LAN cable
I / O Board
Toshiba
Mitsubishi
