Page 17

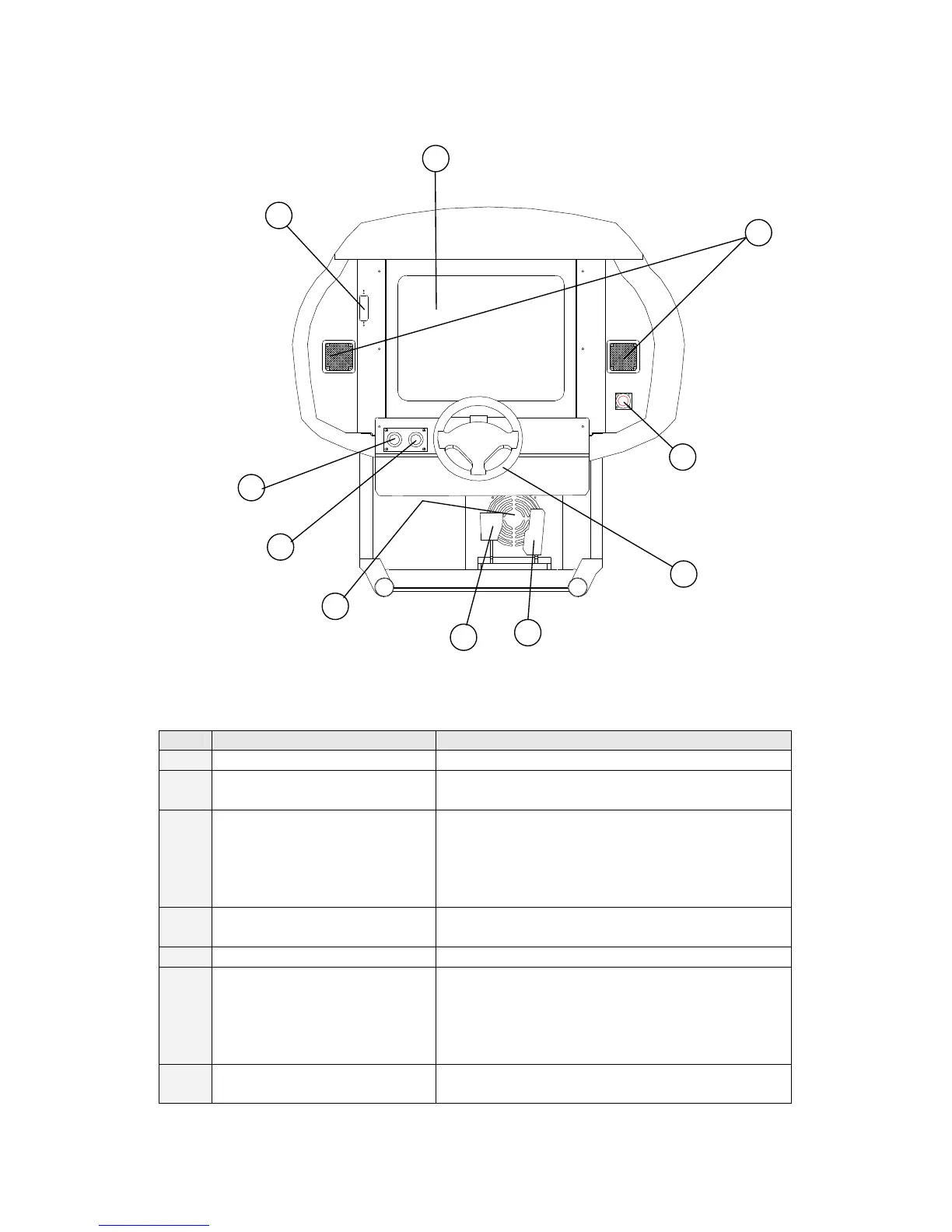

No. Item Description
1 Cabin (Seat + Monitor) Carries the player and moves during operation.
2 Main Frame Holds the cabin, actuator system and
electronics.
3 Actuators Three electric linear actuators that move the
cabin in 3 DOF (degrees of freedom). The two
actuators on top of the cabin creates pitch and
roll motions. The actuator behind the cabin
creates heave motion.
4 Motion System Cabinet
Unit (MSCU)
Houses all the control electronics and electrical
components.
5 Coin Chute Tower Carries the coin chute mechanism.
6 Motion Stop Switch Pressing this button will stop the simulator
motion but game play will continue. Motion
resumes 3 seco
This button can be used in case of emergency
when motion must be stopped.
7 Operator Panel Houses indicators and switches to set and
control Cycraft. Refer to Chapter 2 for details.
