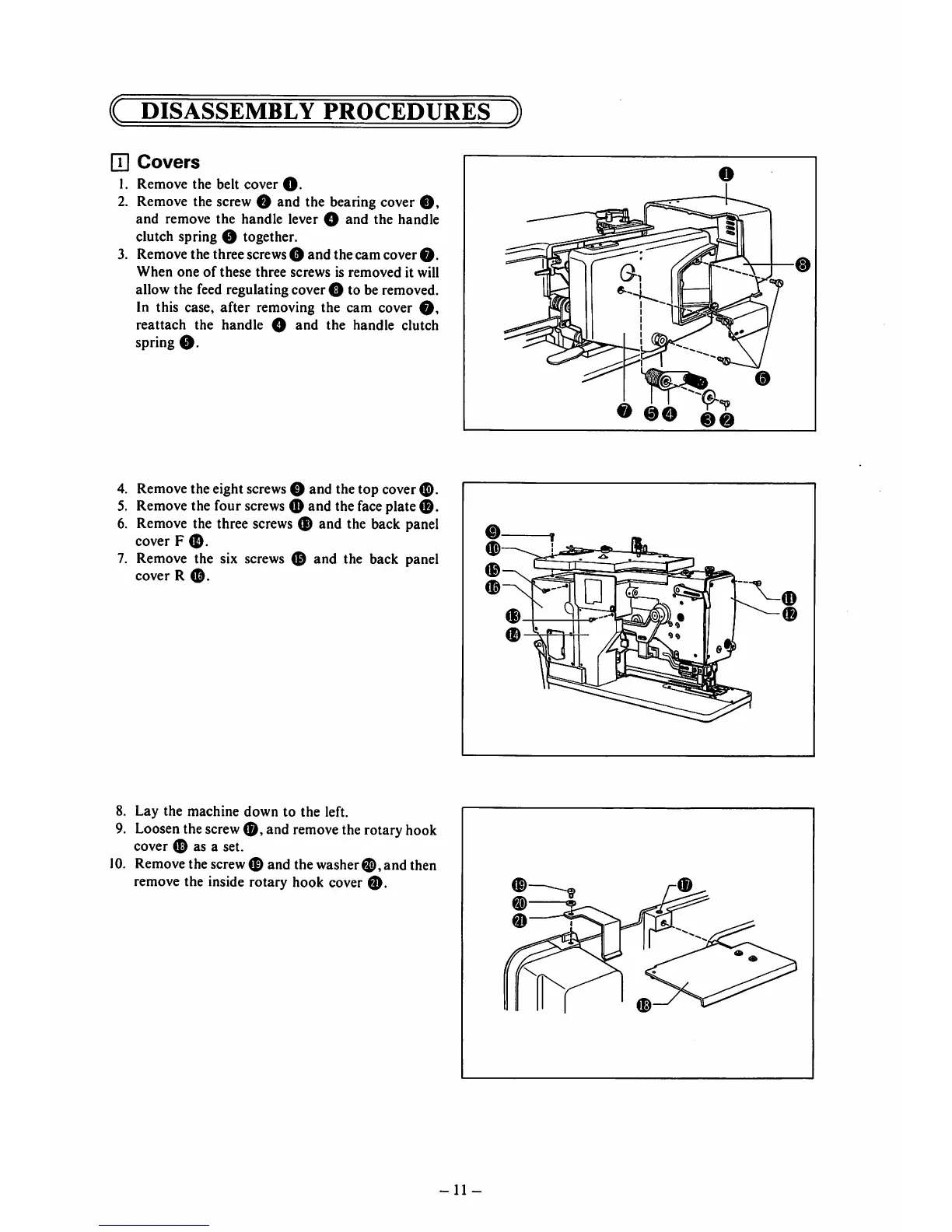

DISASSEMBLY
PROCEDURES
|
[0
Covers
1. Remove the belt cover
O-
2. Remove the screw o and the bearing cover
and remove the handle lever O and the handle
clutch spring 0 together.
3. Remove the three screwsO and the cam cover
0.
When
one
of
these
three
screws
is
removed
it
will
allow the feed regulating cover 0 to be removed,
in this case, after removing the cam cover
0,
reattach the handle 0 and the handle clutch
spring
0.
4. Remove the eight screws0 and the top cover
0.
5. Remove the four screws0 and the faceplate
0.
6. Remove the three screws 0 and the back panel
cover F
0.
7. Remove the six screws 0 and the back panel
cover
R0.
8.
Lay
the
machine
down
to
the
left.
9.
Loosen
the
screw
0,
and
remove
therotaryhook
cover 0 as a set.
10.
Removethe screw0 and the washer
0,
and then
remove the inside rotary hook cover
0.
0
-11
-
0
&
