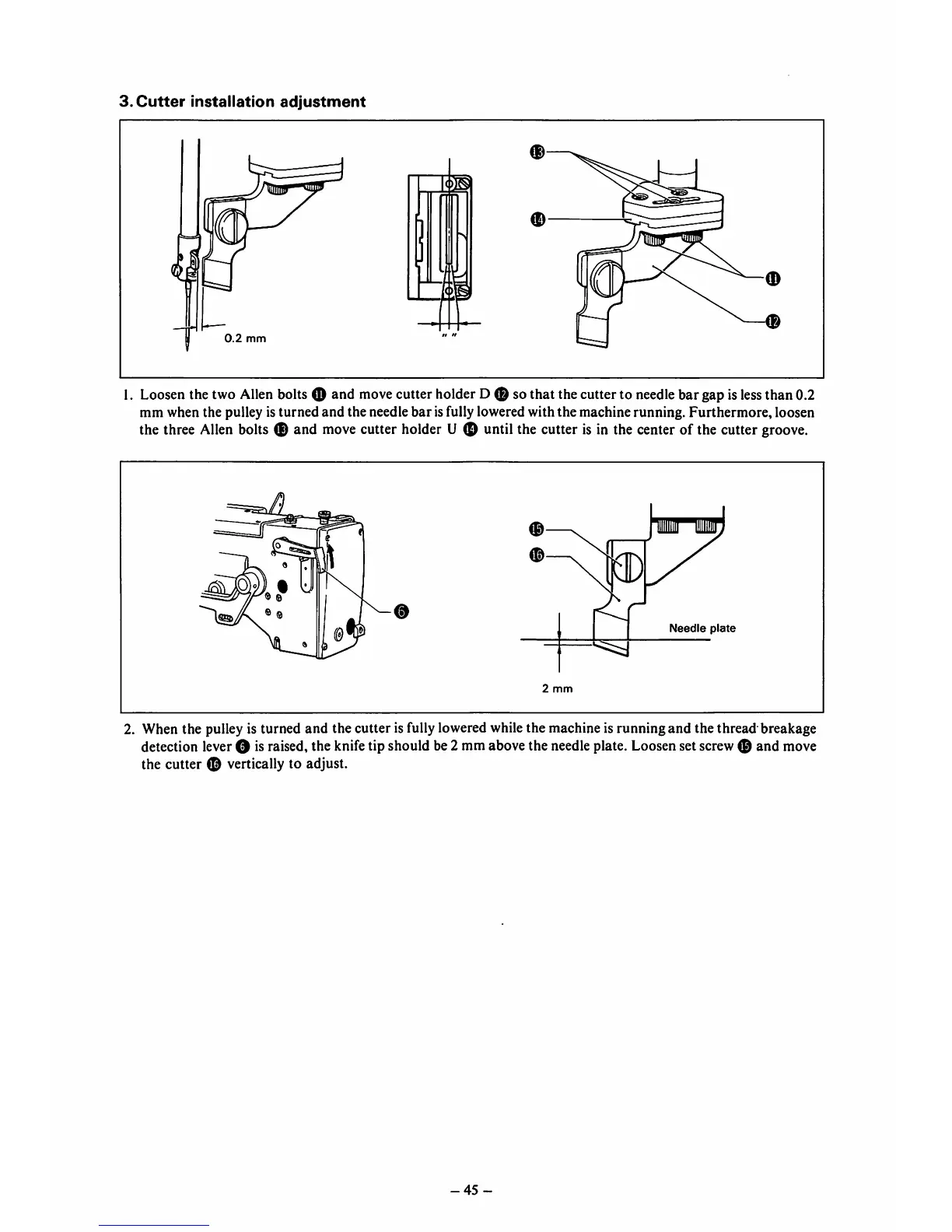

3.
Cutter
installation
adjustment
•
2
mm
I. Loosen the two Allen bolts O and movecutter holder D 0 so that the cutter to needlebar gap islessthan 0.2
mm when the pulley is turned
and
the needle
bar
isfully lowered with the machine running.
Furthermore,
loosen
the three Allen bolts 0 and move cutter holder U 0 until the cutter is in the center of the cutter groove.
0
0
Needle
plate
2
mm
2. When the pulley is turned and the cutter is fully lowered whilethe machine is running and the thread breakage
detection leverO is raised, the knife tip should be 2 mm above the needle plate. Loosen set screw 0 and move
the cutter 0 vertically to adjust.
-45
