0.5~1
mm
3.

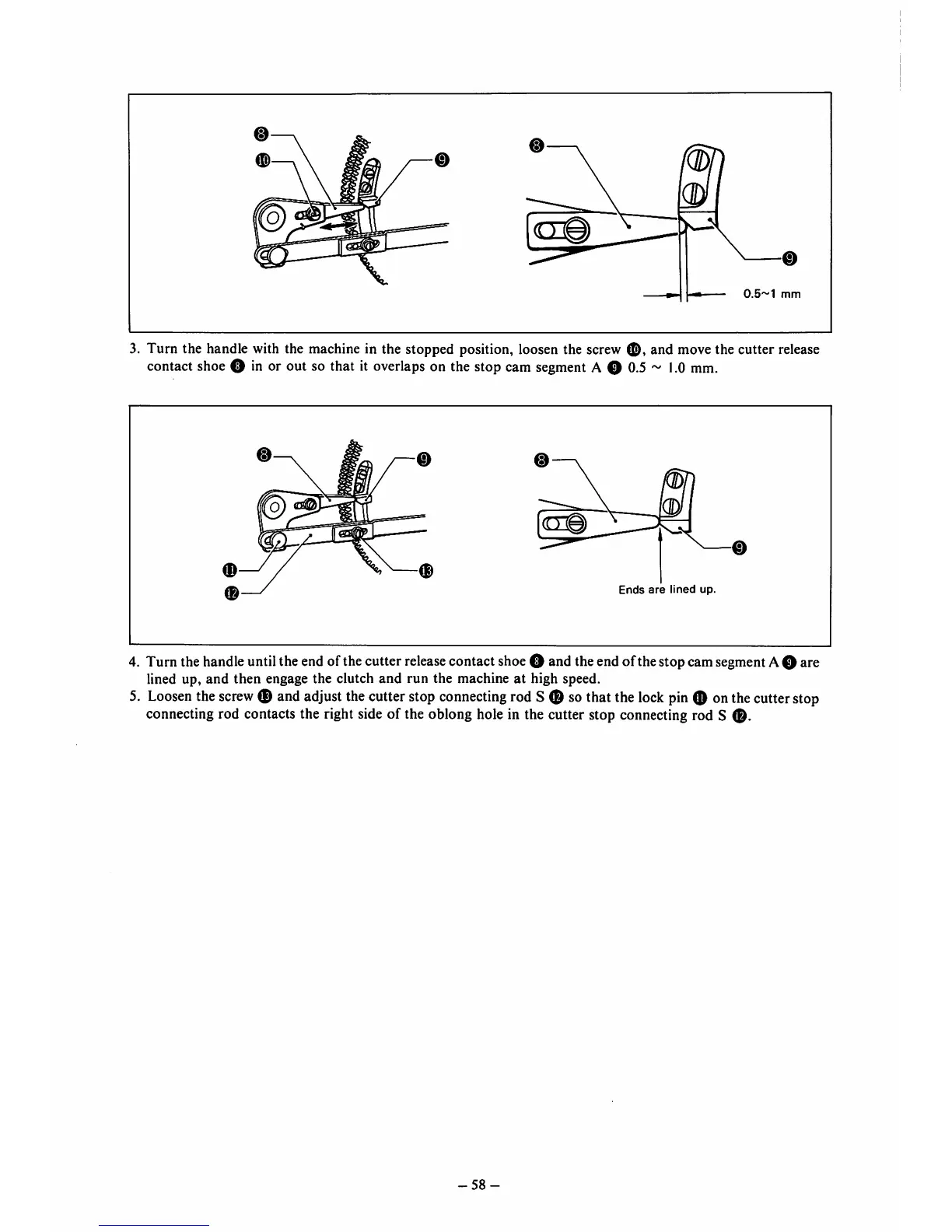

Turn
the handle with the machine in the stopped position, loosen the screw and move the cutter release
contactshoeO in or out so that it
overlaps
on the stop cam
segment
A ©
0.5
~
1.0
mm.
Ends
are
lined
up
4. Turn the handleuntilthe end ofthecutter
release
contact shoe© and theendofthestopcam
segment
A© are
lined up,
and
then
engage the clutch
and
run
the machine
at
high speed.
5.
Loosen
the
screw
©
and
adjust
the
cutter
stop
connecting
rod
S © sothatthe
lock
pin
© on
the
cutter
stop
connecting rod contacts the right side of the oblong hole in the cutter stop connecting rod S
©.
