OPERATING THE MACHINE
AB10ERJN Operation Manual 7-3 © Jul. 2022

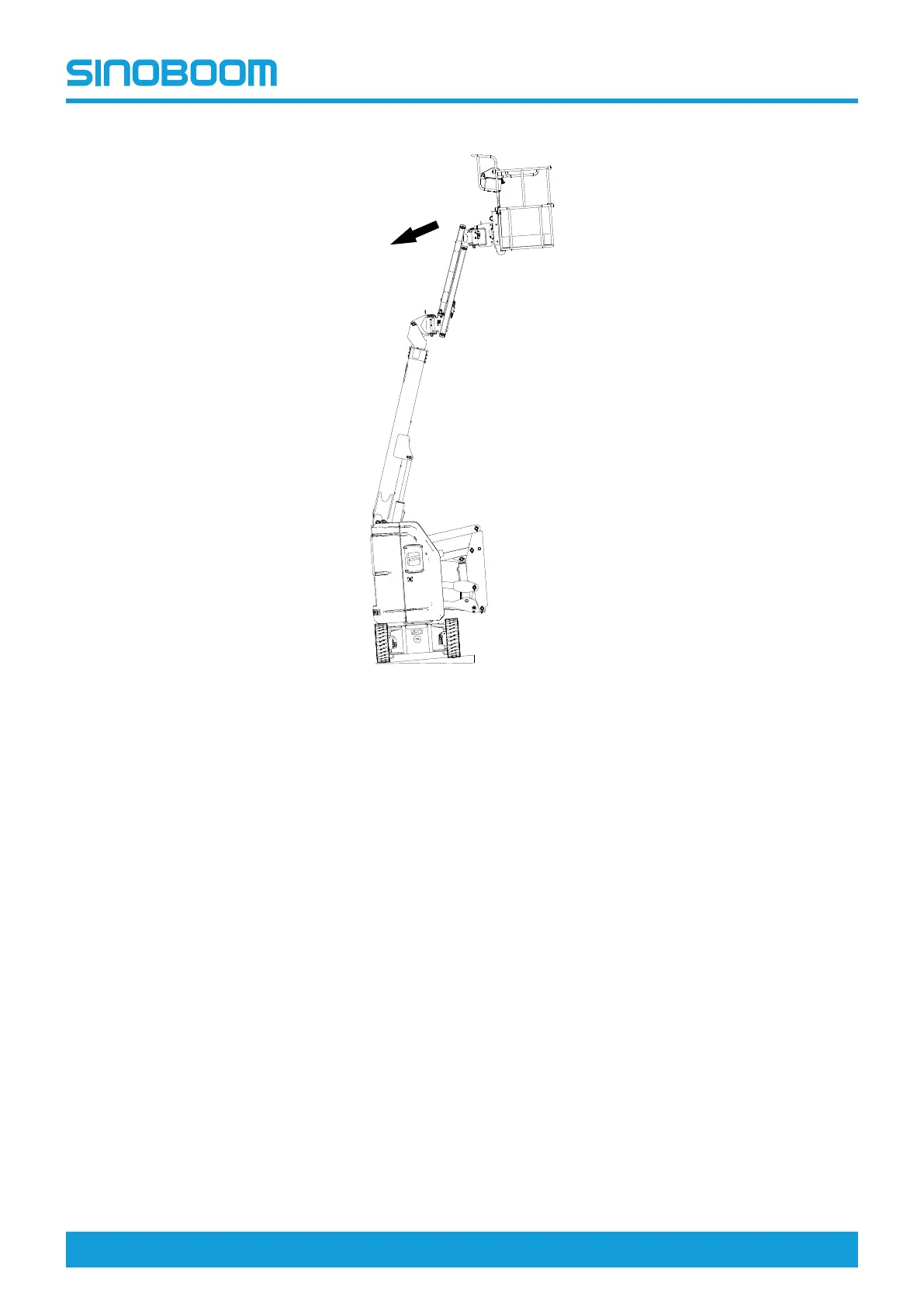

Figure 7-2 Position of least backward stability
1. Articulating boom fully retracted;
2. Main boom fully retracted and fully raised;
3. Jib boom fully raised;
4. Turntable rotated 90°;
5. The machine will tip over in the direction as indicated by the arrow if overloaded or operated on a slope
beyond the maximum allowable inclination angle.
EMERGENCY STOP
1. Push in the emergency stop button on the platform
controller to OFF position, and then all functions of
the platform controller will get inoperative.
2. Push in the emergency stop button on the ground
controller to OFF position, and then all functions of
the ground controller and platform controller will get
inoperative.
3. Push in the main power switch at the back of the
chassis to OFF, the system power will be
disconnected and all functions will get inoperative.
The main power switch is located as shown in the
below figure.
