OPERATING THE MACHINE
AB10ERJN Operation Manual 7-5 © Jul. 2022

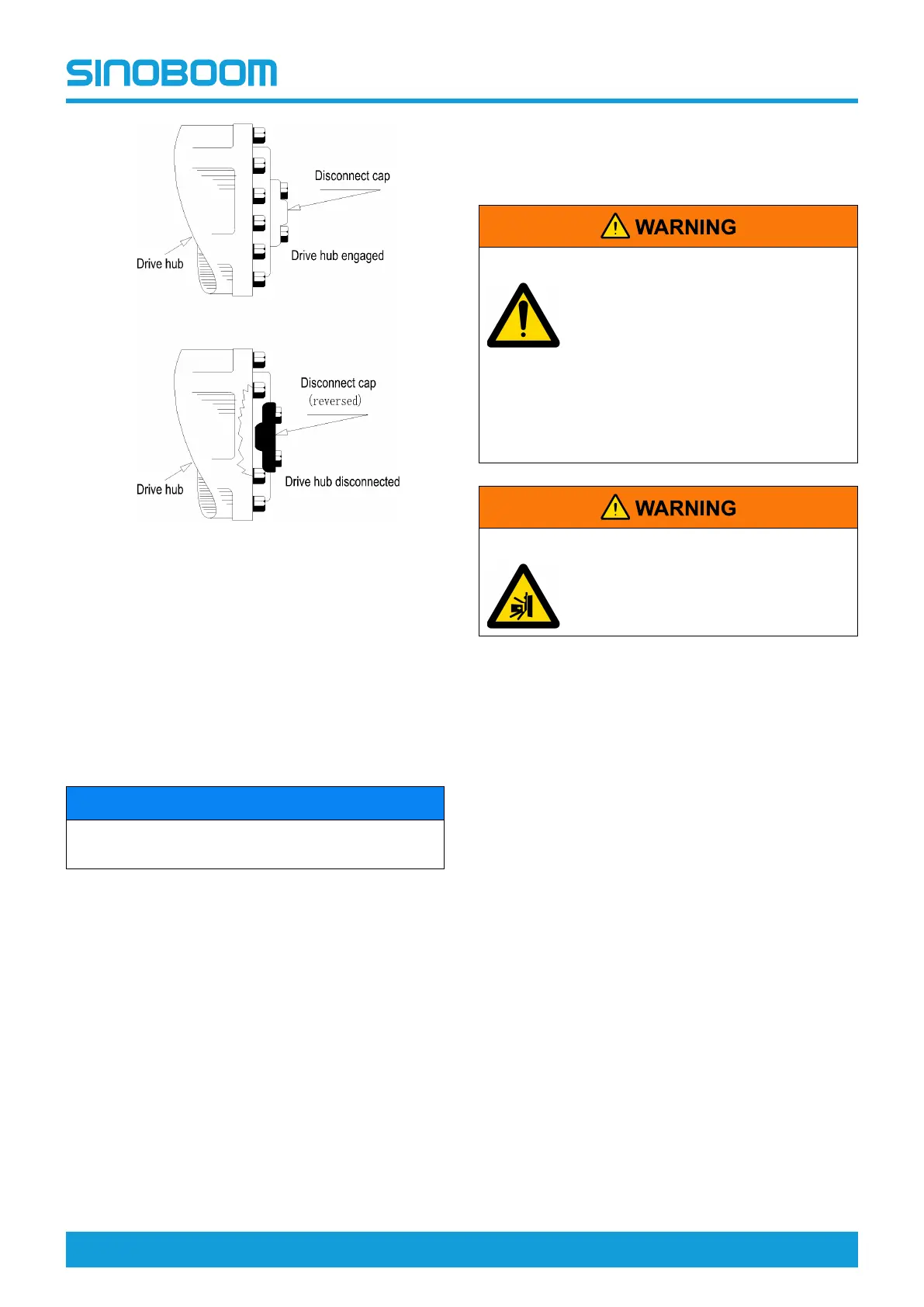

Figure 7-4
5. After moving the machine, position machine on a
firm level surface.
6. Choke the wheels securely to prevent motion of the
machine.
7. Loosen the bolts on each drive hub, then reverse
the cover of drive hub.
8. Tighen the bolts and engage the drive hub.
9. Remove the chokes as necessary.
NOTICE
The allowable towing speed is 3km/h (1.9mph)，the
maximum towing distance is 1km (0.6mile)
OPERATION FROM
GROUND
UNSAFE OPERATION HAZARD
• Unless in emergency situations,
do not operate the machine from
the ground controller when there
is any person on the platform.
• Do not operate the machine if any
control handle or switch that
controls the movement of the
platform does not return to OFF
position after being released.
COLLISION HAZARD
When operating the boom, make sure
the area around or under the platform is
free of persons or obstacles.
Before operation:
1. Ensure the storage battery is well connected before
operating the machine.
2. Turn the ground/platform select switch on the
ground controller to ground control position.
3. Pull out the red emergency stop button on the
ground controller to ON position.
4. Turn the key switch on the ground controller to ON
position.
To position the platform:
1. Turn on the enable switch and meanwhile push
upward/pull downward the main boom luffing switch
to raise or lower the main boom.
2. Turn on the enable switch and meanwhile push the
main boom telescoping switch to the right/left to
extend or retract the main boom.
3. Turn on the enable switch and meanwhile push
upward/pull downward the articulating boom luffing
switch to raise or lower the articulating boom.
4. Turn on the enable switch and meanwhile pull
downward/push upward the turntable rotation
switch to rotate the turntable clockwise or
anticlockwise.
5. Turn on the enable switch and meanwhile push
upward/pull downward the platform leveling switch
to level up or down the platform.
