TRANSPORTING AND LIFTING THE MACHINE
LIFTING THE MACHINE
WITH A CRANE
Follow these requirements when lifting the machine by
crane:
1. The boom must be stowed while lifting the machine.
2. Ensure the boom is positioned in the same direction
as the chassis travels.
3. Ensure the controllers and chassis components are
safe and reliable.
4. Remove all loose parts from the machine.
5. Determine the center of gravity of the machine: X is
927.4mm (36.5in); Y: 876.2mm (34.5in).

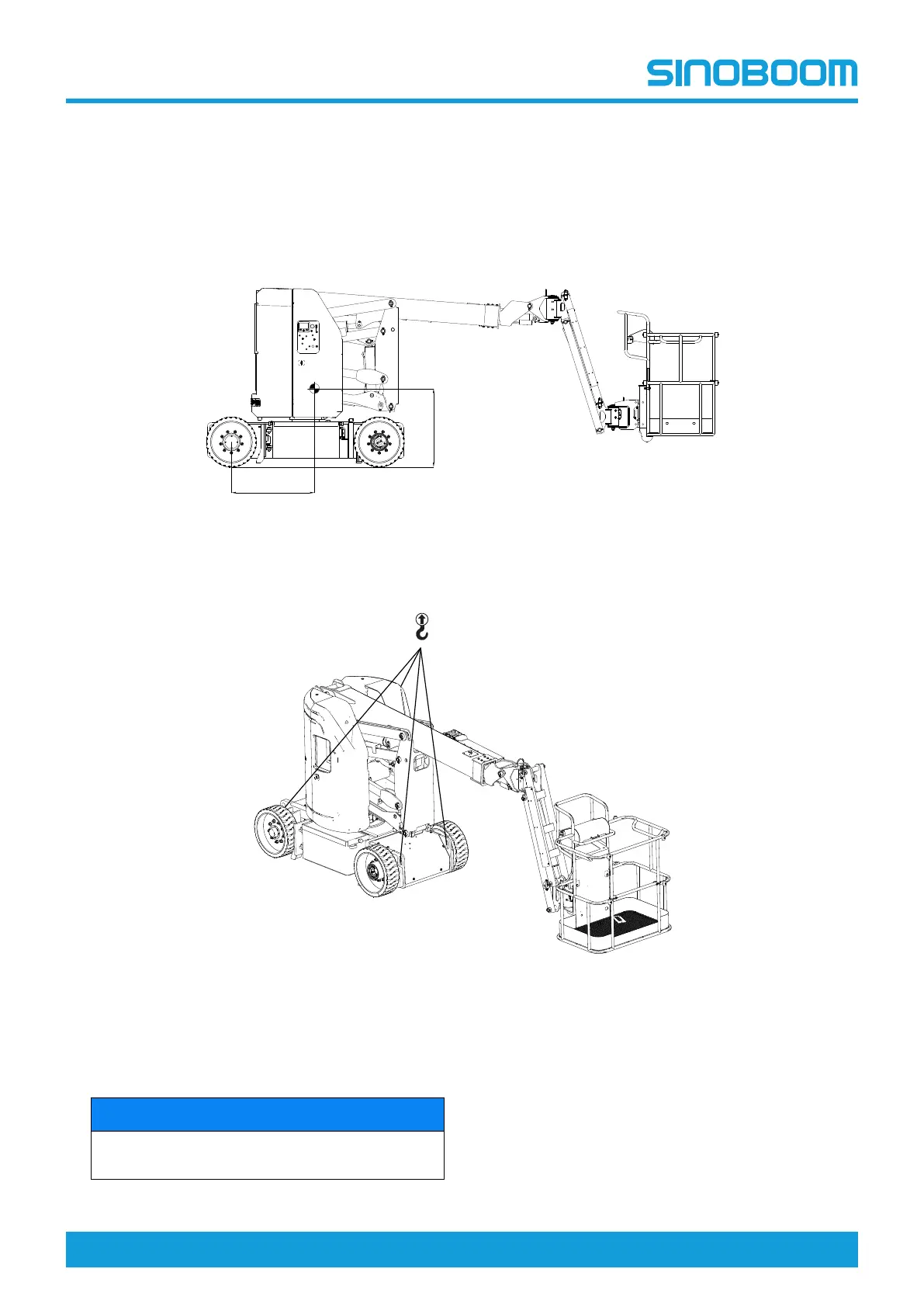

Figure 8-1
6. Lift the machine as shown in the figure below.
Figure 8-2
7. Connect the rigging to the lifting point specified on
the machine. Adjust the rigging to avoid damage to
the machine and to keep the machine horizontal.
NOTICE
To protect the machine, choose rigging with
appropriate length.
TRANSPORTING THE
MACHINE
Follow these requirements when transporting the
machine by truck or trailer:
1. Before transporting, turn the key switch on ground
controller to OFF, and remove the key.
