Sinoboom GTJZ0612E - Page 48

© Mar. 2022 6-6 GTJZ0612E&0812E&1012E&1212E Operation Manual

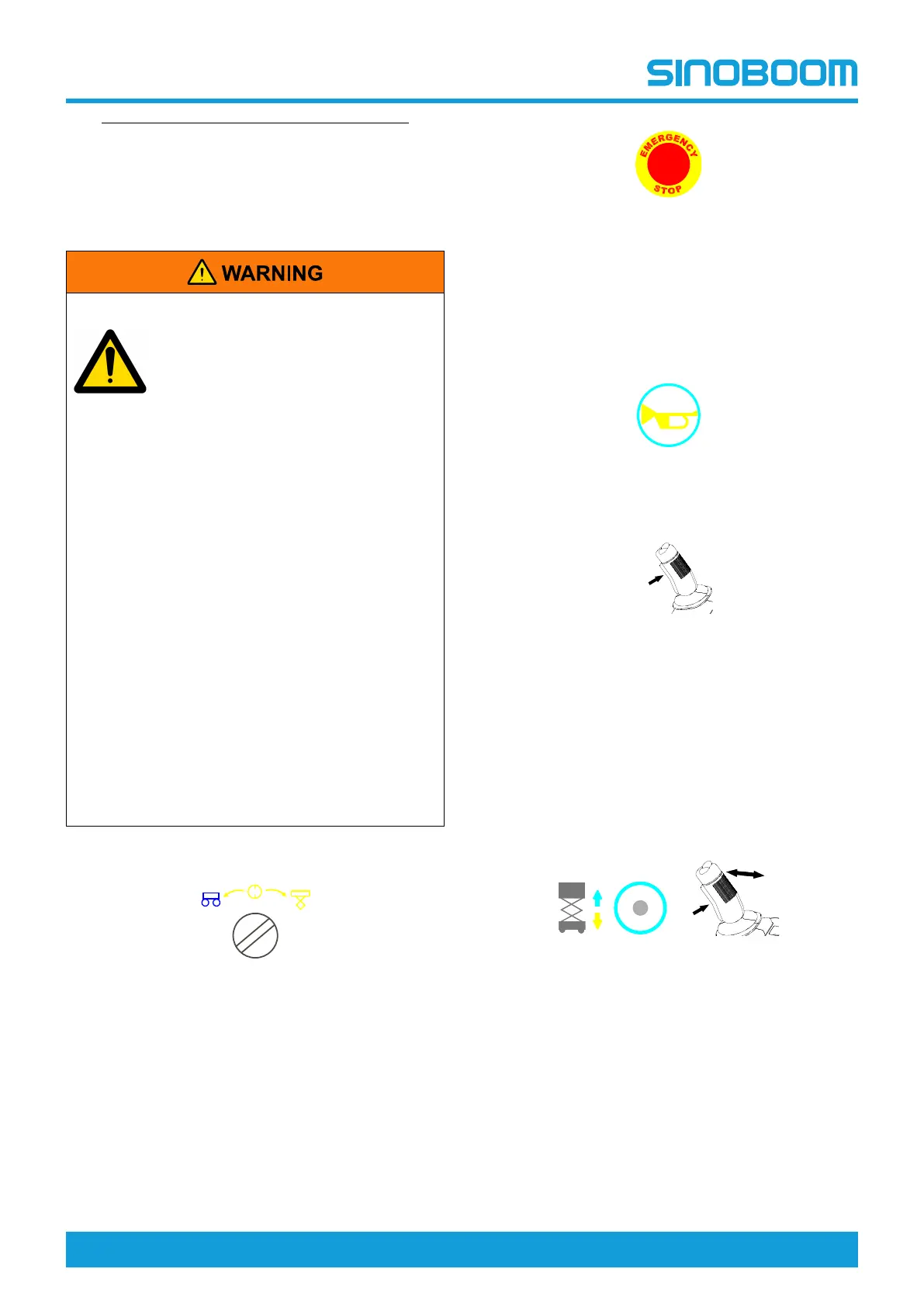

PRE-OPERATION FUNCTION TEST
7. Drive reverse
Note: Refer to the Fault Diagnosis
section of Maintenance Manual for the
fault codes displayed on the screen.
UNSAFE OPERATION HAZARD
• Unless in emergency situations,
never operate from the ground
controller if there are still persons
on the platform.
• Confirm if the joystick is in the
Neutral position before pushing in
the emergency stop button at the
platform controller, and if not, do
not operate the machine to avoid
accidents.
• Never operate the machine if any
joystick or switch that controls
the platform movement does not
return to the OFF position after
being released, or else personal
injuries may result.
• The platform controller joystick of
one brand can’t be used to
replace the joystick of another
brand, otherwise the machine
functions may be damaged or
safety accidents may occur.
• Do not remove, modify or disable
the footswitch (if equipped) by
adding stops or any other means
to prevent death or serious injury.
Ground/Platform select switch
1. Pull out the emergency stop buttons on the
ground and platform controllers to the ON
position.
2. Turn the key switch of the ground controller to the
platform control position.
Emergency stop button
1. Push the emergency stop button on the platform
or ground controller to the OFF position. All
functions should not operate.
2. Pull out the emergency stop button on the
platform and ground to the ON position.
Horn button
Press the horn button. The horn should sound.
Enable button
1. Test the function enable button.
2. With the enable button on the joystick not
pressed, directly deflect forward/backward the
joystick. The lift and drive functions should not
operate.
3. Hold the enable button on the joystick and deflect
forward/backward the joystick. The corresponding
function should operate.
Lift function
1. Press the lift function enable button. The button
should illuminate.
2. Hold the enable button on the joystick and push
the joystick forward to activate the platform up
function. The platform should go up and the
pothole guard device should deploy.
3. Release the joystick. The platform should stop
rising.
4. Hold the enable button of the joystick and pull the
joystick back to activate the platform down
function. The platform should go down with the
alarm sounding.
∅ 52
∅ 22
∅ 35
∅ 55
4X ∅ 7
∅ 12.5
R2.5
∅ 22
4XR6
235
98
78
220
4065
57.540.5
11.2
7.5
1
2
3
4
5
6
7
1
2
3
4
5
6
7
技术要求
1、PVC 不干胶自粘面膜。
2、面膜底色为黑色。
3、颜色要求：上下台切换图标中底座颜色为蓝色，转换方向图案黄色，叉子及平台颜色为黄色，
升降切换图标底座颜色为蓝色，上升图案黄色，下降图案为红色，
急停开关图标底色为黄色、字体颜色为红色,小时指示图标为绿色。
4、所有孔尺寸公差为±0.1；
1
1
2
2
A A
B B
50.0
88.0
更改文件号
审 核
工 艺
处数
标记
设 计
日 期
共 页
签 字
标准化
日期
图 样 标 记
第 页
比 例
重 量
0.45
李申奥
银友国
刘奇志 2018.11.15
1
刘晓
面膜
101013060005
1:1
1
101013060005
∅52
∅22
∅35
∅55
4X ∅7
∅12.5
R2.5
∅22
4XR6
235
98
78
220
4065
57.540.5
11.2
7.5
1
2
3
4
5
6
7
1
2
3
4
5
6
7
技术要求
1、PVC 不干胶自粘面膜。
2、面膜底色为黑色。
3、颜色要求：上下台切换图标中底座颜色为蓝色，转换方向图案黄色，叉子及平台颜色为黄色，
升降切换图标底座颜色为蓝色，上升图案黄色，下降图案为红色，
急停开关图标底色为黄色、字体颜色为红色,小时指示图标为绿色。
4、所有孔尺寸公差为±0.1；
1
1
2
2
A A
B B
50.0
88.0
更改文件号
审 核
工 艺
处数
标记
设 计
日 期
共 页
签 字
标准化
日期
图 样 标 记
第 页
比 例
重 量
0.45
李申奥
银友国
刘奇志 2018.11.15
1
刘晓
面膜
101013060005
1:1
1
101013060005
EMERGENCY
S
T
O
P
4
5
6
7
1
2
3
8
EMERGENCY
S
T
O
P
10
11
12
13
9
Enabling key
EMERGENCY
S
T
O
P
4
5
6
7
1
2
3
8
EMERGENCY
S
T
O
P
10
11
12
13
9
Lowering
Lifting
