PRE-OPERATION FUNCTION TEST
GTJZ0612E&0812E&1012E&1212E Operation Manual 6-5 © Mar. 2022
TIPPING HAZARDS
Make sure to select the low speed
mode to drive when the machine tilts.
When the tilt alarm sounds, stop all
functional operations except
lowering, and do not continue the
work unless the factor that causes
the tilting is removed.
1. With the machine stowed, push forward the drive
high/low speed select switch, the low drive speed
should be selected.
2. With the machine stowed, pull back the drive
high/low speed select switch, the high drive
speed should be selected.
Indoor/outdoor mode select switch
1. With the machine stowed, push forward the
indoor/outdoor mode select switch, the outdoor
mode should be selected.
2. With the machine stowed, pull back the indoor/
outdoor mode select switch, the indoor mode
should be selected.
TESTING THE PLATFORM
CONTROLLER (DTC)

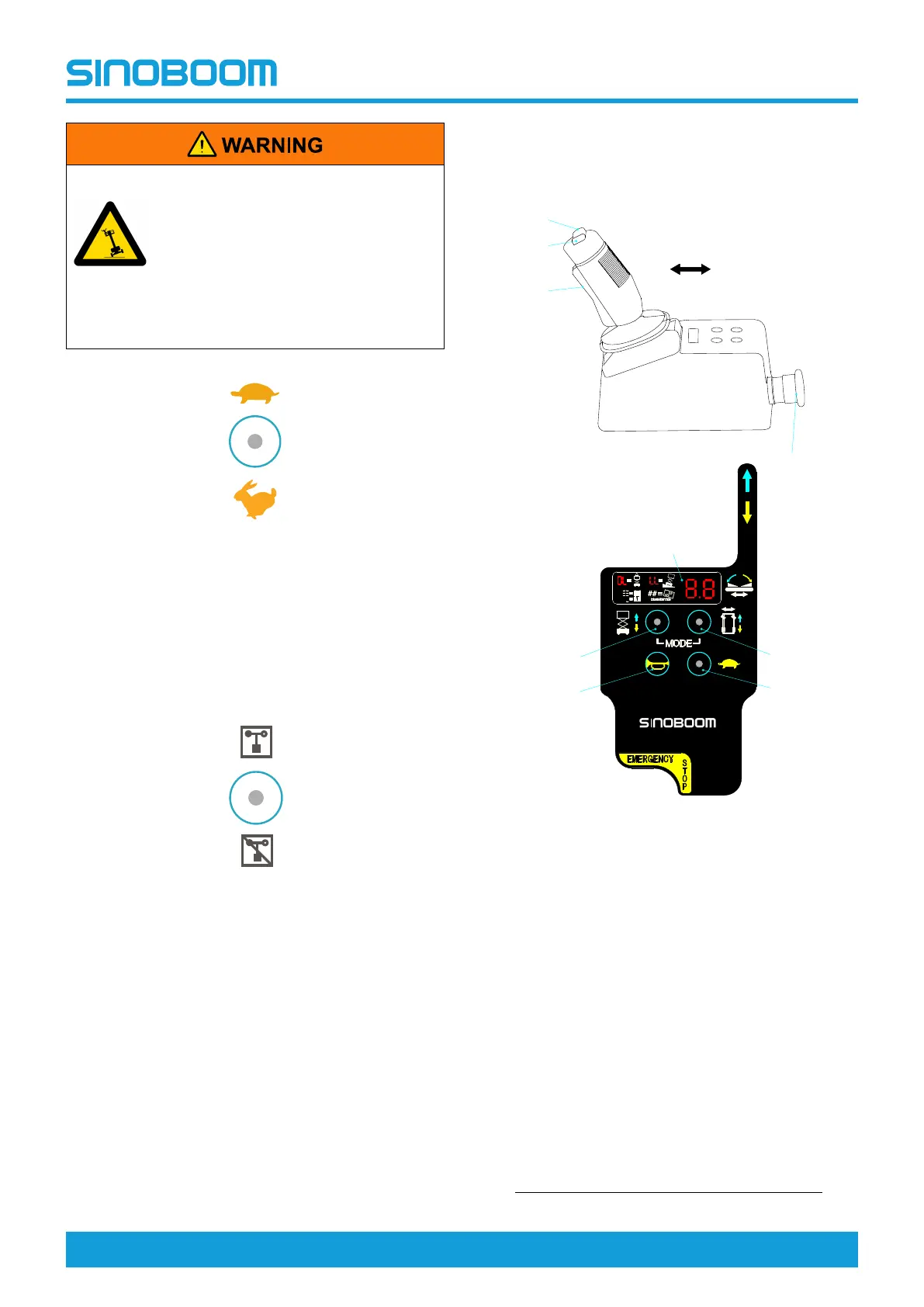

Figure 6-3 Platform controller (DTC)
1. Steer right
8. Emergency stop
button
2. Steer left
9. Display screen
(to display battery
level and fault
codes)
3. Enable switch
10. Lift function
enable switch
4. Platform up
11. Horn
5. Platform down
12. Drive/steer
function enable
switch
6. Drive forward
13. Drive high/low
speed select switch
4
5
6
7
1
2
3
8
KG
9
10
11
12
13
EMERGENCY
S
T
O
P
KG
9
10
11
12
13
