Sintrones SBOX-2600 - VGA Connector

2.0 Internal Connector Specification
User’s Manual Page 2-1
2.0 INTERNALCONNECTORSPECIFICATION
2.1 VGAConnector
Connector size 2 X 8 = 16 Pin
Connecto
r
type JST-2.0m
m
-M-180
Connector location VGA1
Connector pin definition
Pin Signal Pin Signal
1 RED 2 GREEN
3 BLUE 4 NC
5 CER_DET 6 GND
7 GND 8 GND
9 +5V 10 GND
11 NC 12 DAC_SDA
13 HSYNC 14 VSYNC
15 DAC_SCL 16 NC

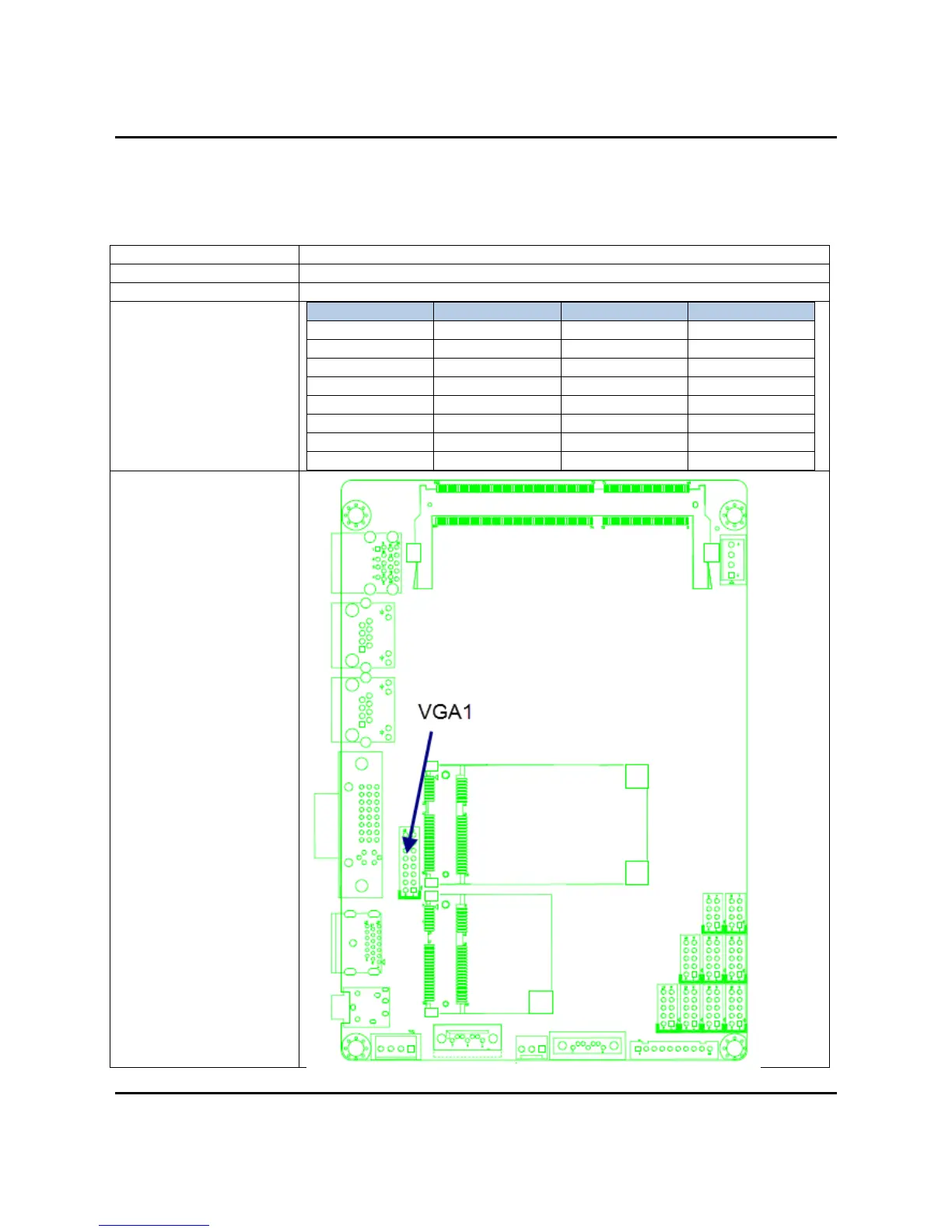

Connector map
