Sintrones SBOX-2600 - COM Connector (COM4)

2.0 Internal Connector Specification
User’s Manual Page 2-10

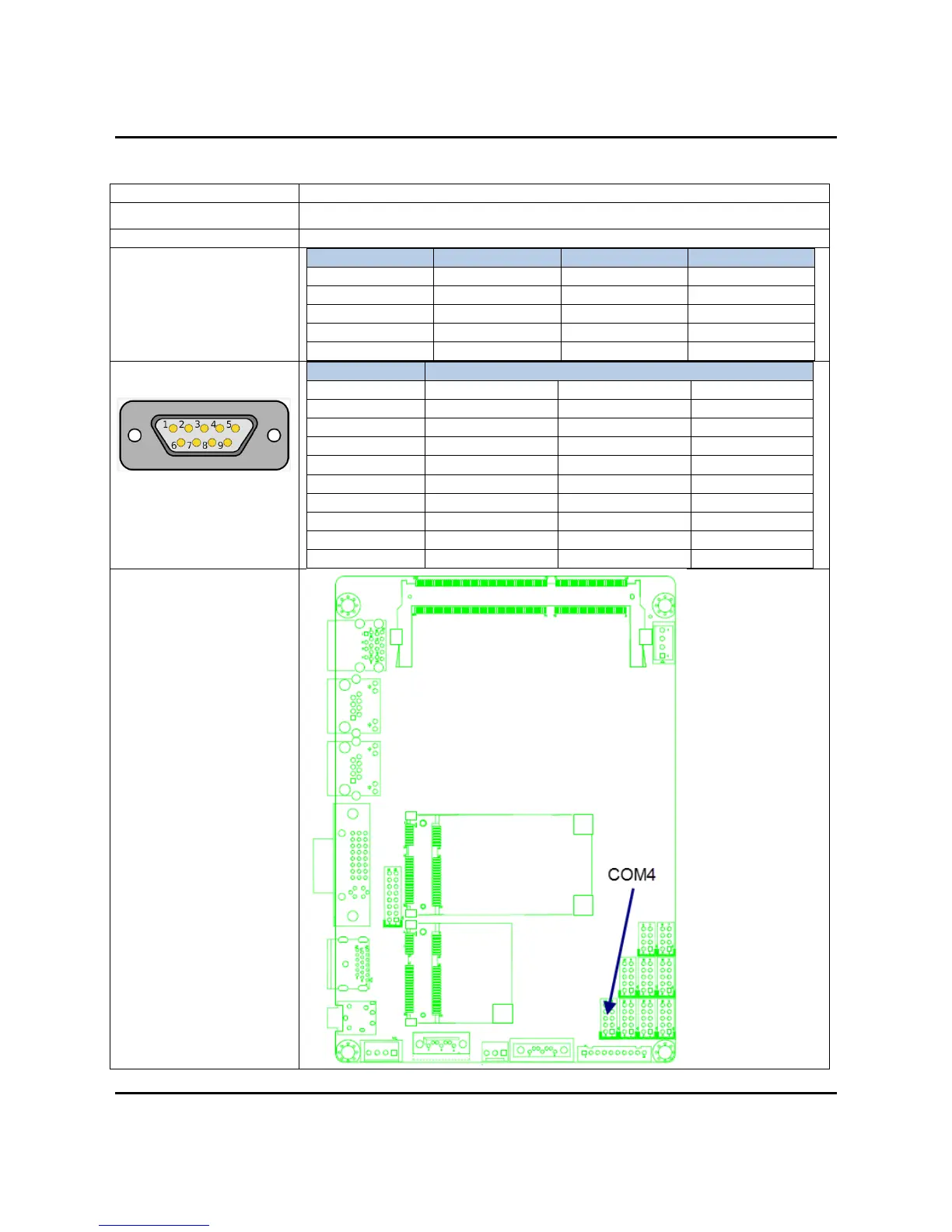

2.10 COMConnector(COM4)
Connector size 2 X 5 = 10 Pin
Connector type JST-2.0mm-M-180
Connector location COM3
Connector pin definition
Pin Signal Pin Signal
1 COM4
_
DCD 2 COM4
_
RXD
3 COM4
_
TXD 4 COM4
_
DT
R
5 GND 6 COM4
_
DS
R
7 COM4
_
RTS 8 COM4
_
CTS
9 COM4
_
RI 10 GND
DB9 pin definition
Pin Signal
RS232
1 COM4_DCD
2 COM4_RXD
3 COM4_TXD
4 COM4_DTR
5 GND
6 COM4_DS
R
7 COM4_RTS
8 COM4_CTS
9 COM4_RI
Connector map
