Sintrones SBOX-2600 - SATA Power Connector (SPWR2)

2.0 Internal Connector Specification
User’s Manual Page 2-20
2.18 SATAPowerConnector(SPWR2)
Connector size 1 X 3 = 3 Pin
Connector type WAFER 2.54mm-M-180
Connector location SPWR2
Connector pin definition
Pin Signal
1 +12V
2 +5V
3 GND

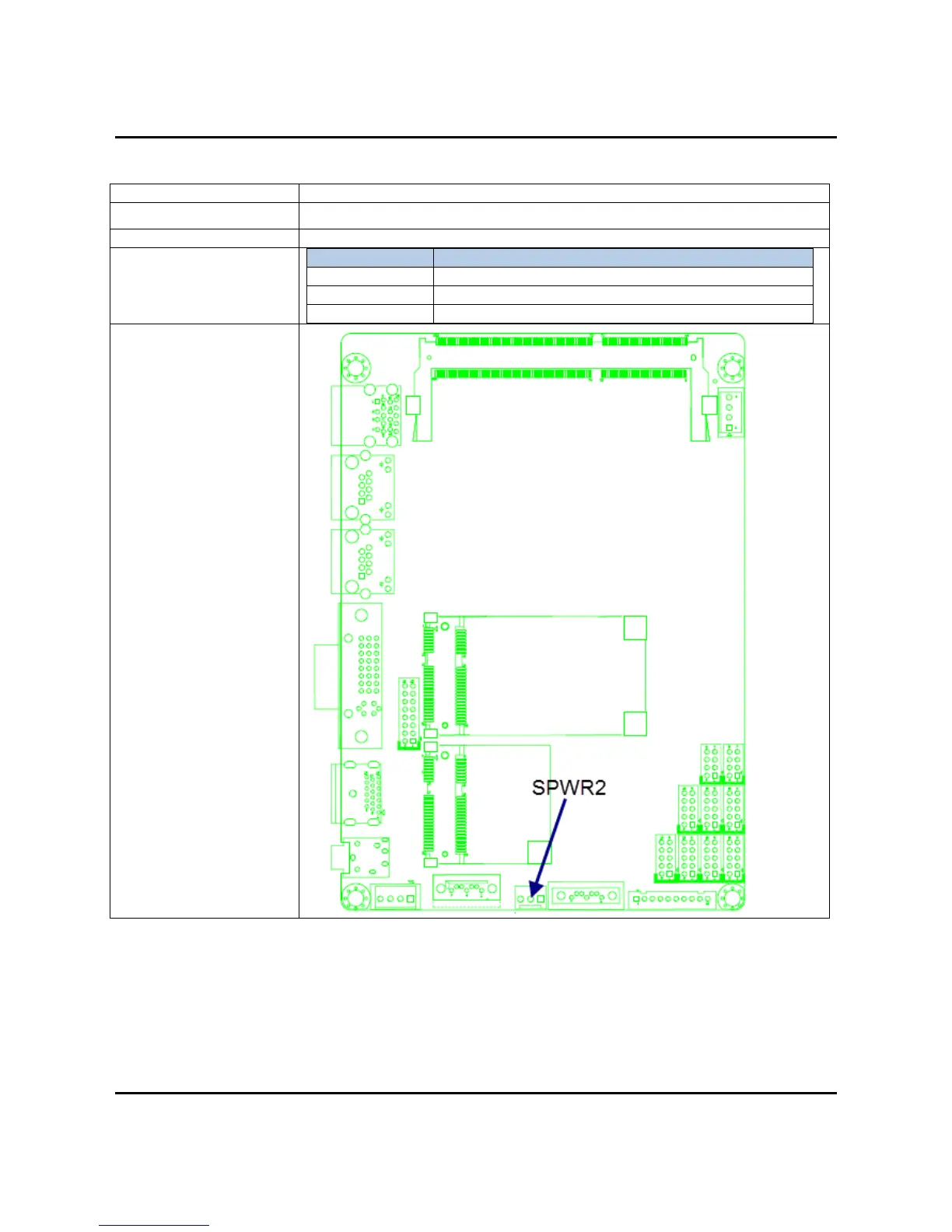

Connector map
