Sintrones SBOX-2600 - GPIO Connector

2.0 Internal Connector Specification
User’s Manual Page 2-4

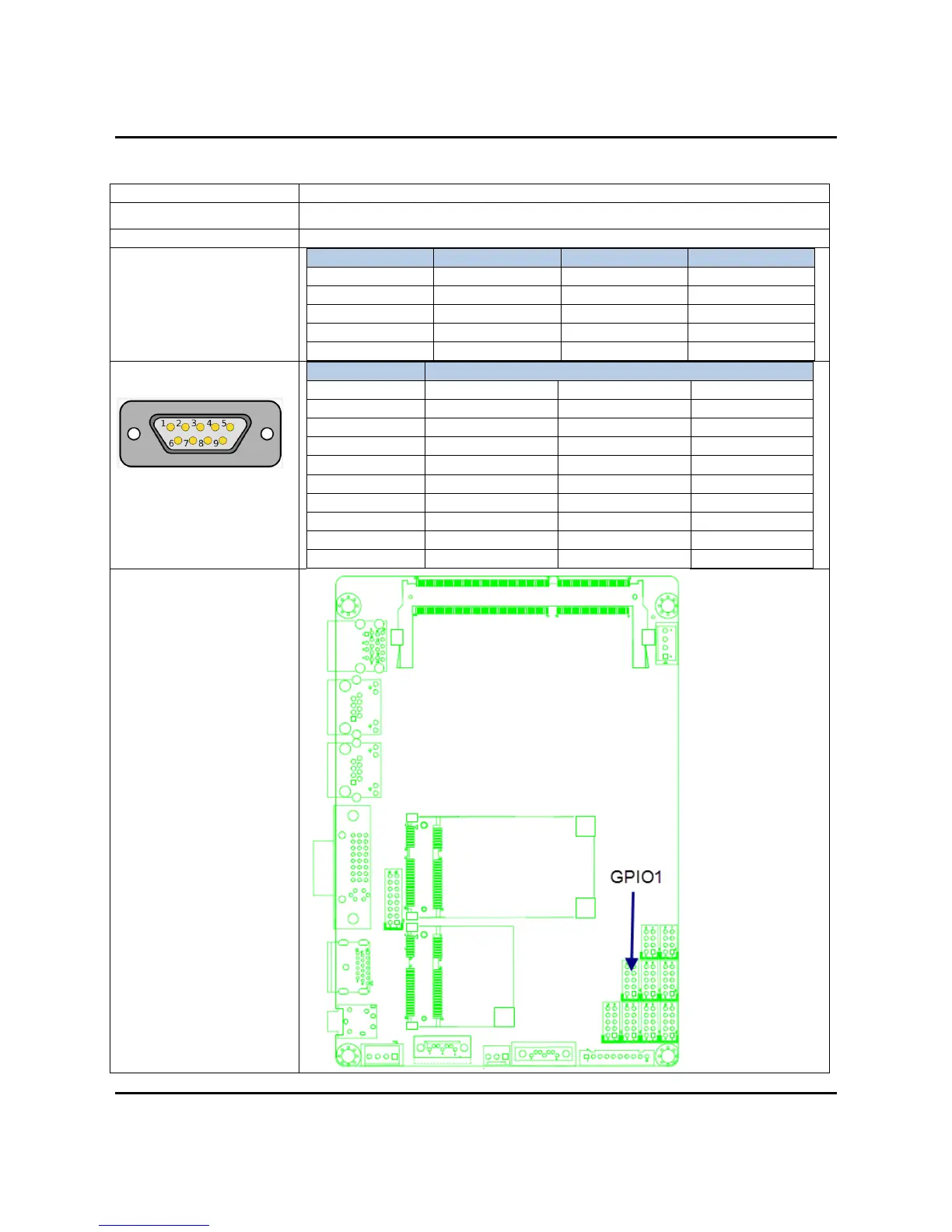

2.4 GPIOConnector 
Connector size 2 X 5 = 10 Pin
Connector type JST-2.0mm-M-180
Connector location GPIO1
Connector pin definition
Pin Signal Pin Signal
1 GND 2 +5V
3 GPI0 4 GPO0
5 GPI1 6 GPO1
7 GPI2 8 GPO2
9 GPI3 10 GPO3
DB9 pin definition
Pin Signal
GPIO
1 GPI0
2 GPI1
3 GPI2
4 GPI3
5 GPO0
6 GPO1
7 GPO2
8 GPO3
9 GND
Connector map
