Sintrones SBOX-2600 - COM Connector (COM1)

2.0 Internal Connector Specification
User’s Manual Page 2-7

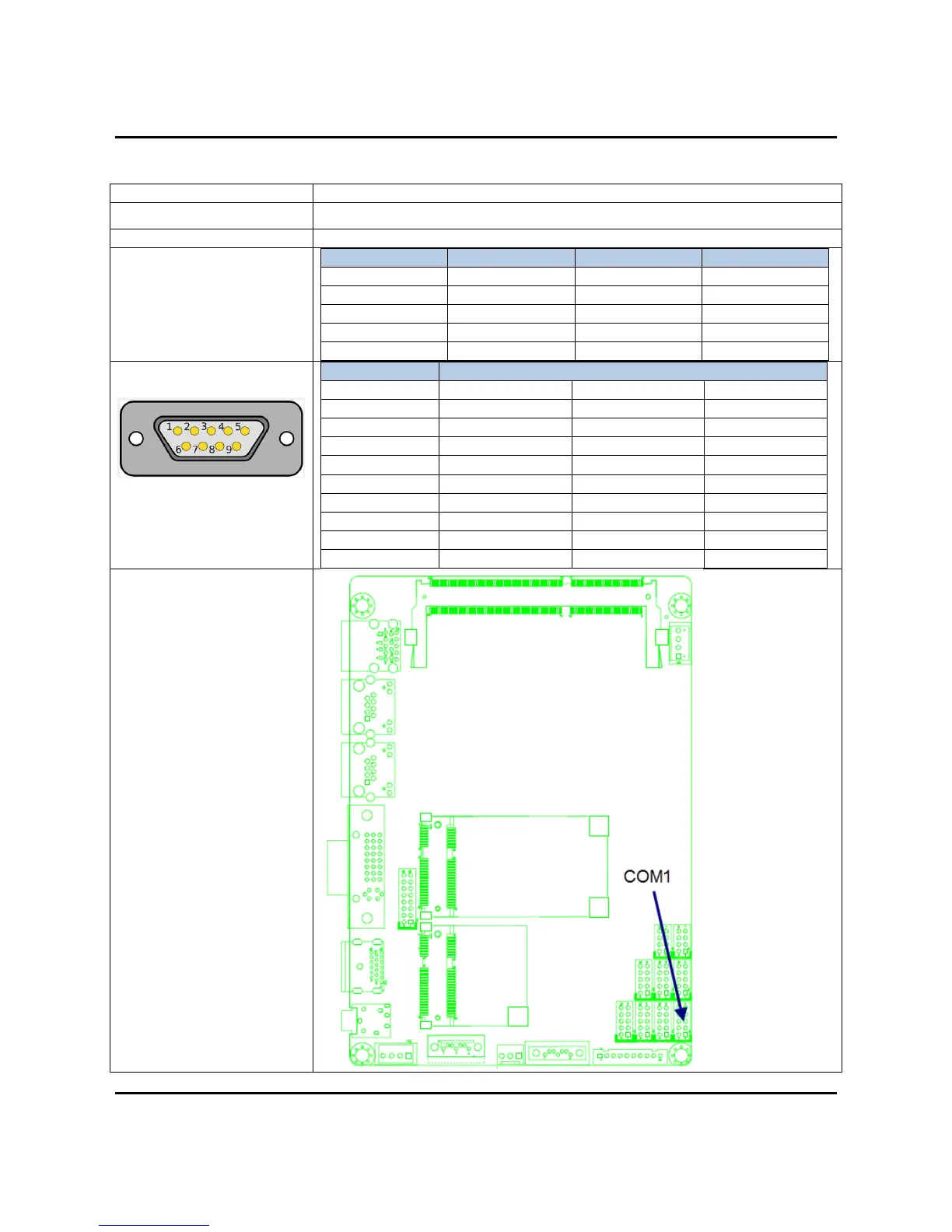

2.7 COMConnector(COM1)
Connector size 2 X 5 = 10 Pin
Connector type JST-2.0mm-M-180
Connector location COM1
Connector pin definition
Pin Signal Pin Signal
1 COM1
_
DCD 2 COM1
_
RXD
3 COM1
_
TXD 4 COM1
_
DTR
5 GND 6 COM1
_
DS
R
7 COM1
_
RTS 8 COM1
_
CTS
9 COM1
_
RI 10 GND
DB9 pin definition
Pin Signal
RS232 RS422 RS485
1 COM1_DCD TXD- TXD-/RXD-
2 COM1_RXD TXD+ TXD+/RXD+
3 COM1_TXD RXD+ NC
4 COM1_DT
R
RXD- NC
5 GND GND GND
6 COM1_DS
R
NC NC
7 COM1_RTS NC NC
8 COM1_CTS NC NC
9 COM1_RI NC NC
Connector map
