Sintrones SBOX-2600 - LAN Connector (LAN2)

4.0 System Installation
User’s Manual
3.3 LANConnector(LAN2)
Connector size 12 Pin
Connector type RJ45+LED
Connector location LAN2
Connector pin definition
Pin Signal Pin Signal
1 LAN1
_
MDI0P 2 LAN1
_
MDI0N
3 LAN1
_
MDI1P 4 LAN1
_
MDI2P
5 LAN1
_
MDI2N 6 LAN1
_
MDI1N
7 LAN1
_
MDI3P 8 LAN1
_
MDI3N
9 LAN1
_
ACT# 10 LAN1
_
ACTPW
11 LAN1
_
LINK# 12 LAN1
_
LINKPW

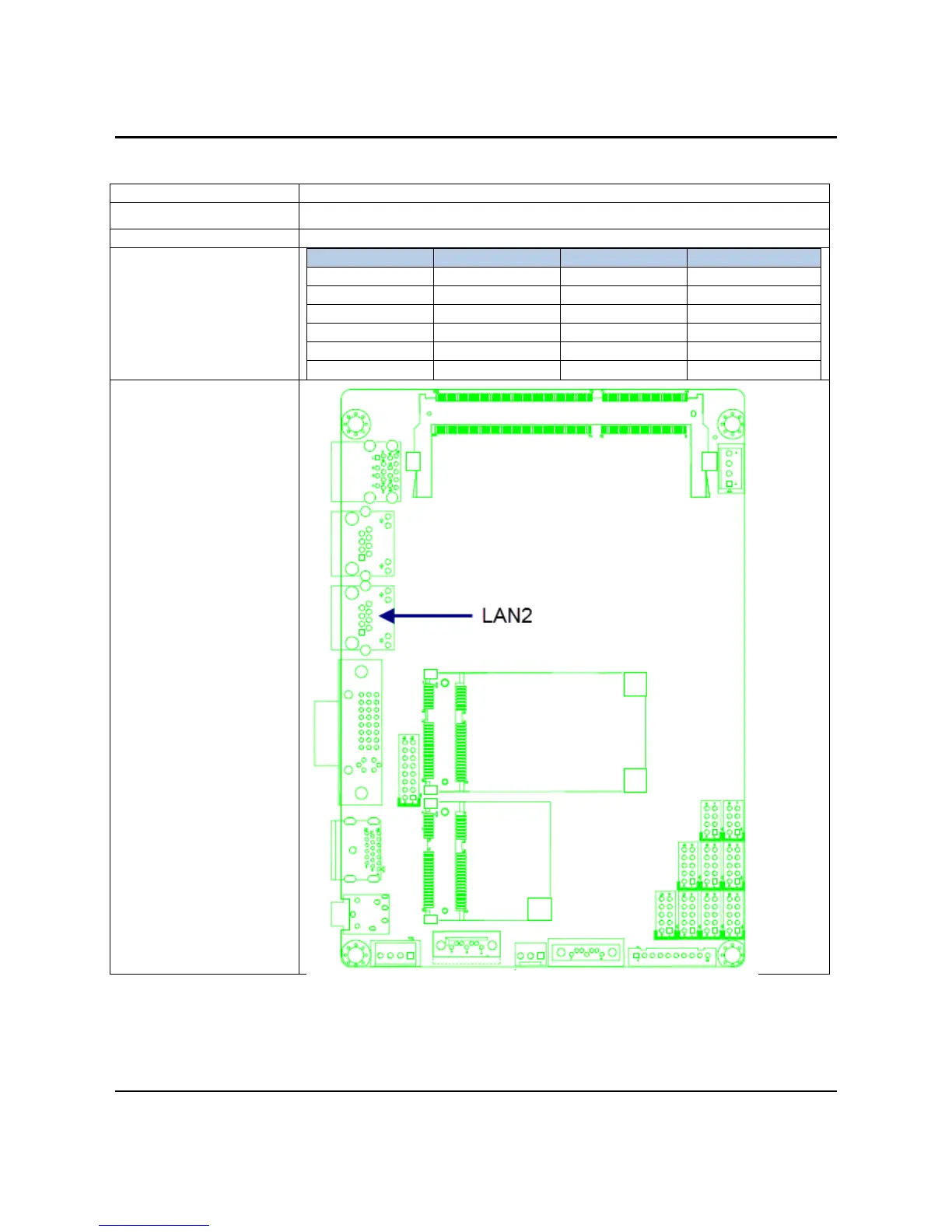

Connector map
