4.0 System Installation
User’s Manual
3.2 LANConnector(LAN1)
5.2 LAN connector
Connector size 12 Pin
Connector type RJ45+LED
Connector location LAN1
Connector pin definition
Pin Signal Pin Signal
1 LAN0_MDI0P 2 LAN0_MDI0N
3 LAN0_MDI1P 4 LAN0_MDI2P
5 LAN0_MDI2N 6 LAN0_MDI1N
7 LAN0_MDI3P 8 LAN0_MDI3N
9 LAN0_ACT# 10 LAN0_ACTPW
11 LAN0_LINK# 12 LAN0_LINKPW

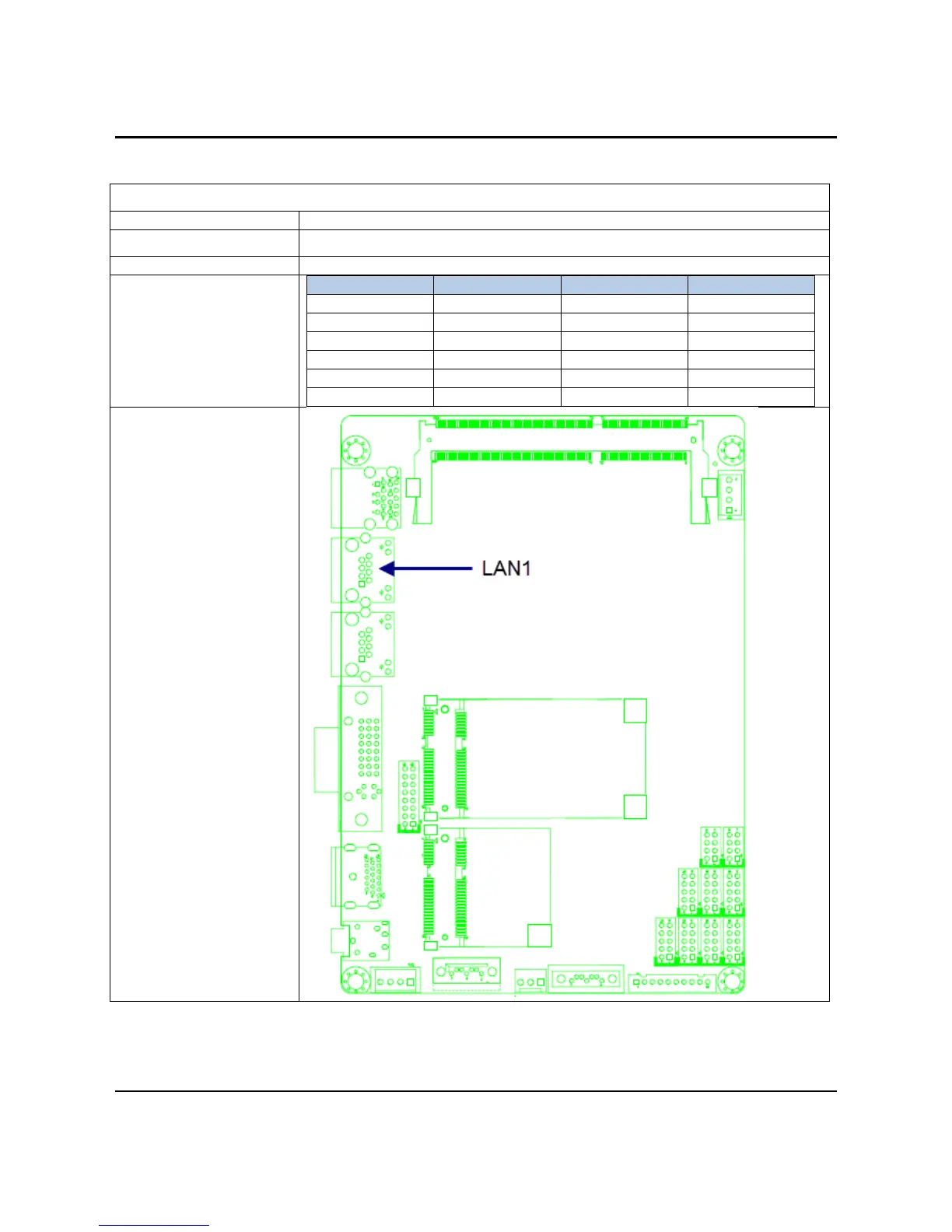

Connector map
