Sintrones SBOX-2600 - HDMI Connector

4.0 System Installation
User’s Manual
3.5 HDMIConnector
Connector size 19 Pin
Connector type HDMI
Connector location HDMI1
Connector pin definition
Pin Signal Pin Signal
1 HDMI_DATA2_P 2 GND
3 HDMI_DATA2_N 4 HDMI_DATA1_P
5 GND 6 HDMI_DATA1_N
7 HDMI_DATA0_P 8 GND
9 HDMI_DATA0_N 10 HDMI_CLK_P
11 GND 12 HDMI_CLK_N
13 NC 14 NC
15 HDMI_SCL 16 HDMI_DATA
17 GND 18 +5V
19 HDMI_HPD

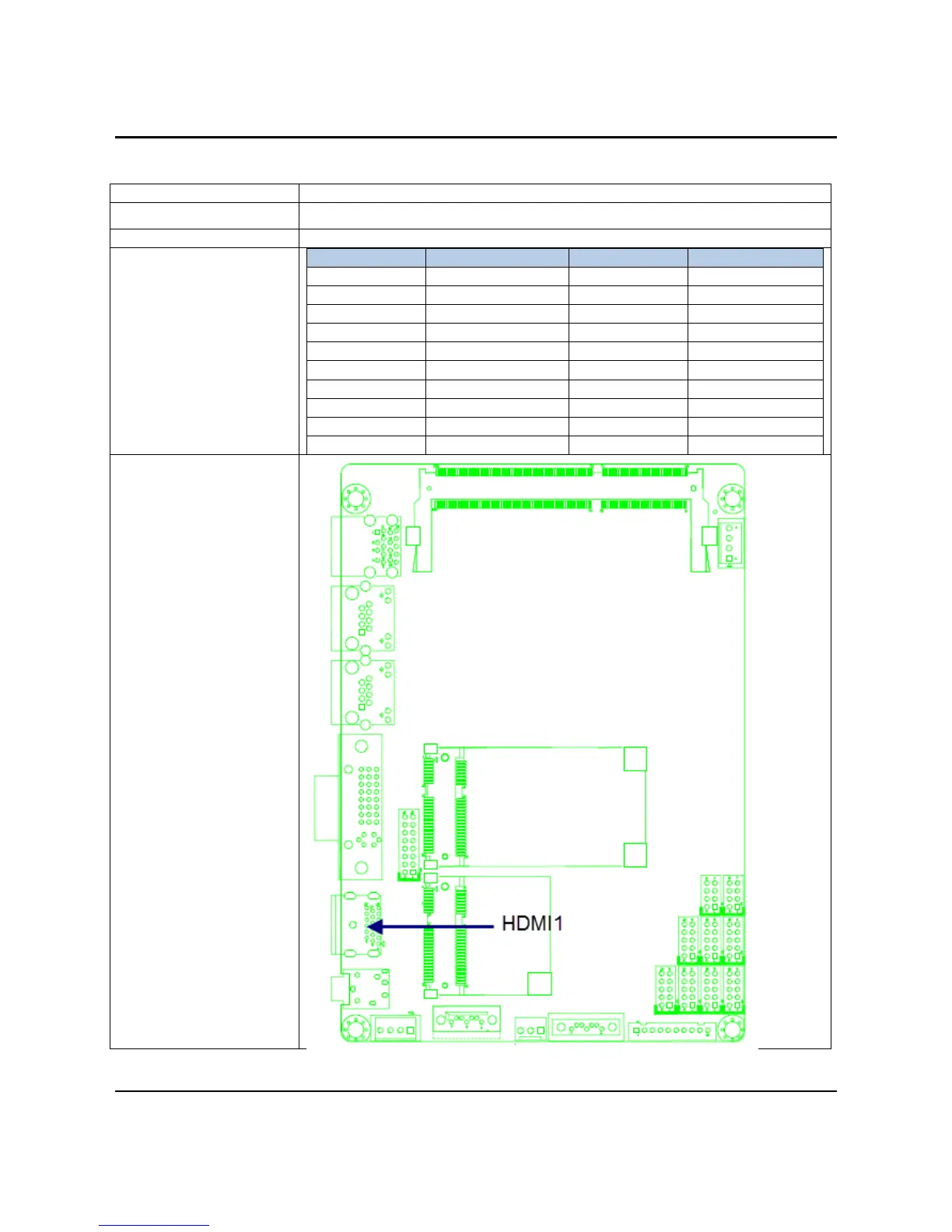

Connector map
