Sintrones SBOX-2600 - LED Connector

2.0 Internal Connector Specification
User’s Manual Page 2-6
2.6 LEDConnector
Connector size 2 X 5 = 10 Pin
Connector type JST-2.0mm-M-180
Connector location LED1
Connector pin definition
Pin Signal Pin Signal
1 HDD_LED
_
N 2 HDD_LED
_
P
3 PWR_LED
_
N4PWR_LED
_
P
5 GND 6 PWRBT#
7 GND 8 HW_RESET#
9 SMB_CLK 10 SMB_DATA

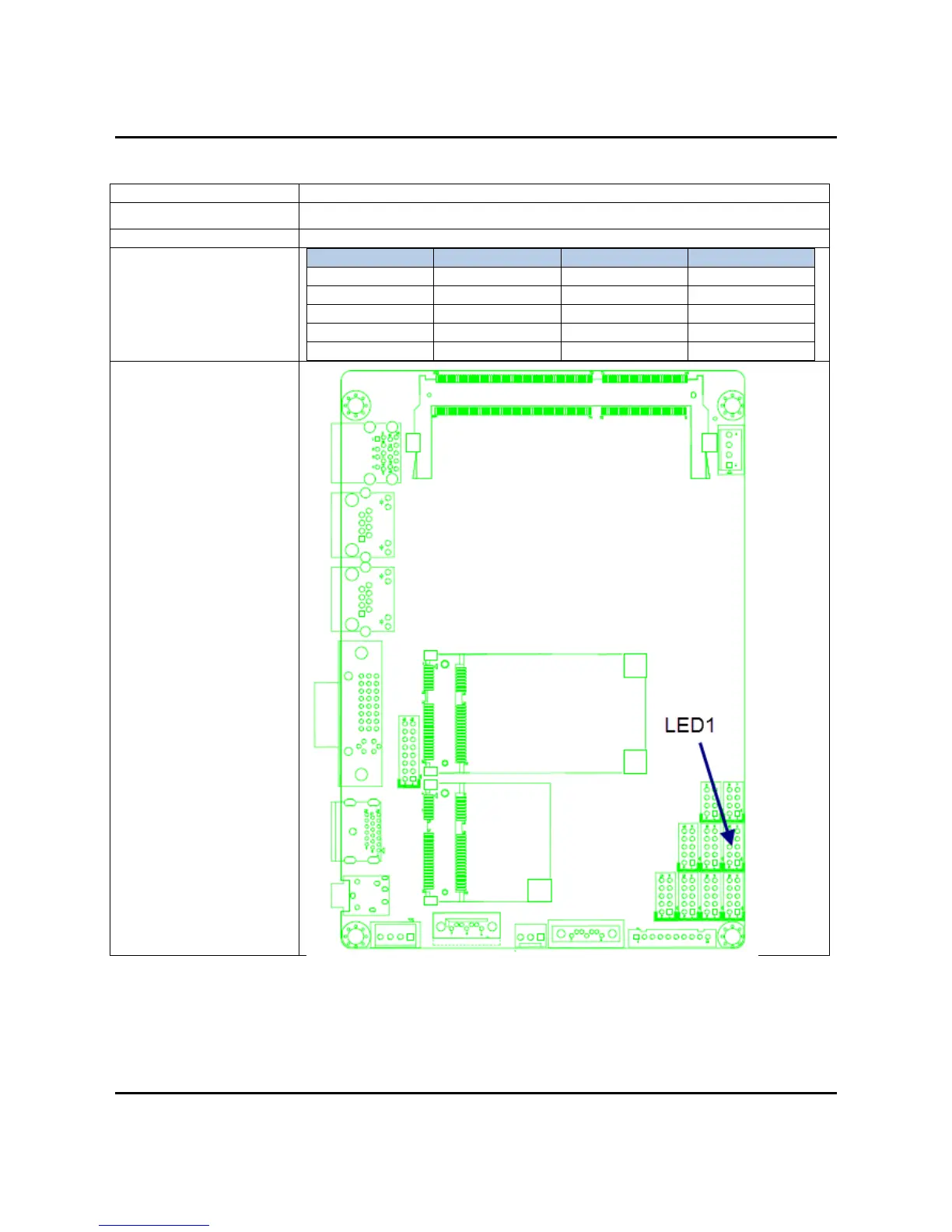

Connector map
