Sintrones SBOX-2600 - SATA Power Connector (SPWR1)

2.0 Internal Connector Specification
User’s Manual Page 2-19
2.17 SATAPowerConnector(SPWR1)
Connector size 1 X 4 = 4 Pin
Connector type WAFER 2.54mm-M-180
Connector location SPWR1
Connector pin definition
Pin Signal
1 +5V
2 GND
3 GND
4 +12V

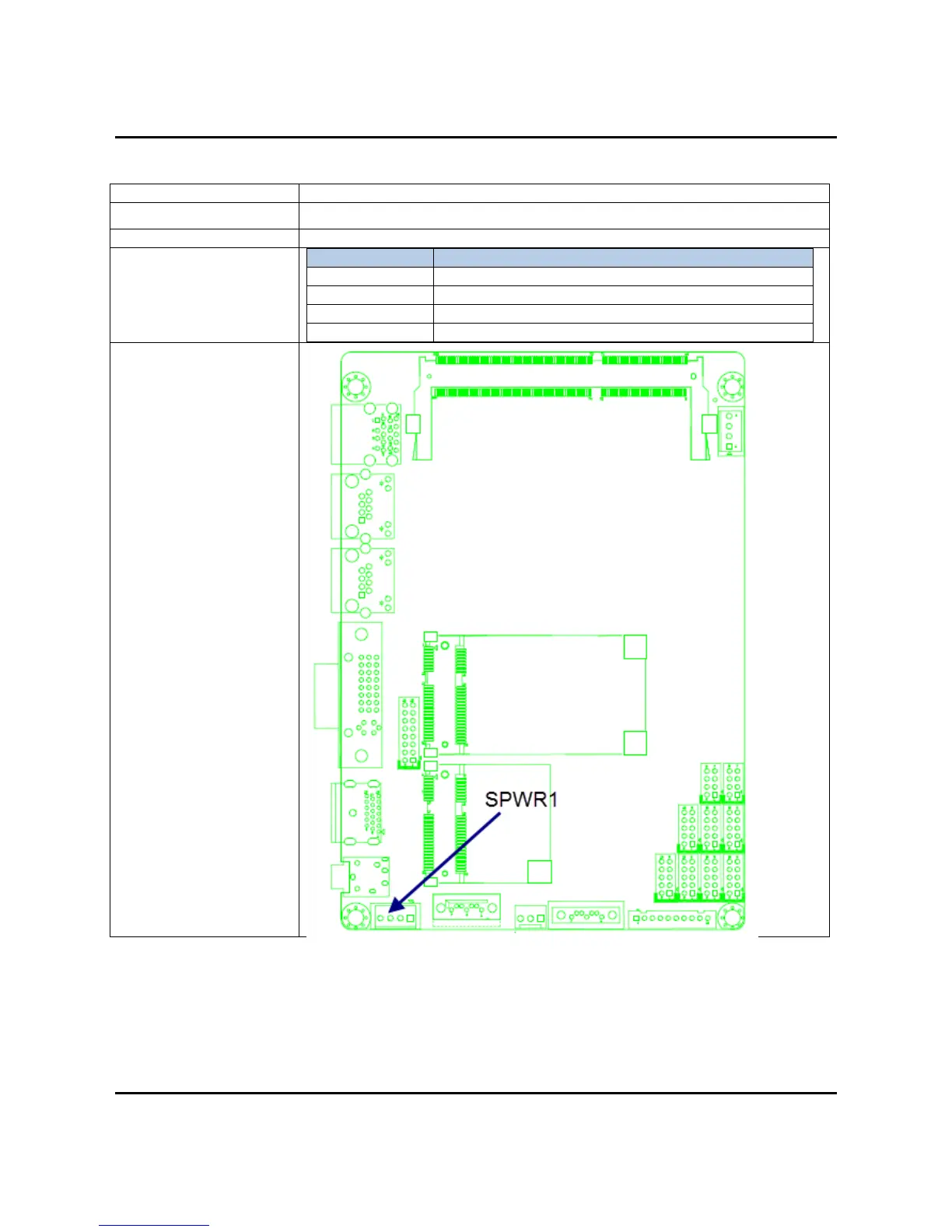

Connector map





