Sintrones SBOX-2600 - UART and GPIO Connector

2.0 Internal Connector Specification
User’s Manual Page 2-5
2.5 UARTandGPIOConnector
Connector size 2 X 5 = 10 Pin
Connector type JST-2.0mm-M-180
Connector location UART1
Connector pin definition
Pin Signal Pin Signal
1 GPIO0 2 GPIO6
3 GPIO5 4 GPIO4
5 GND 6 GPIO3
7 GPIO1 8 GND
9 GPIO2 10 +5V

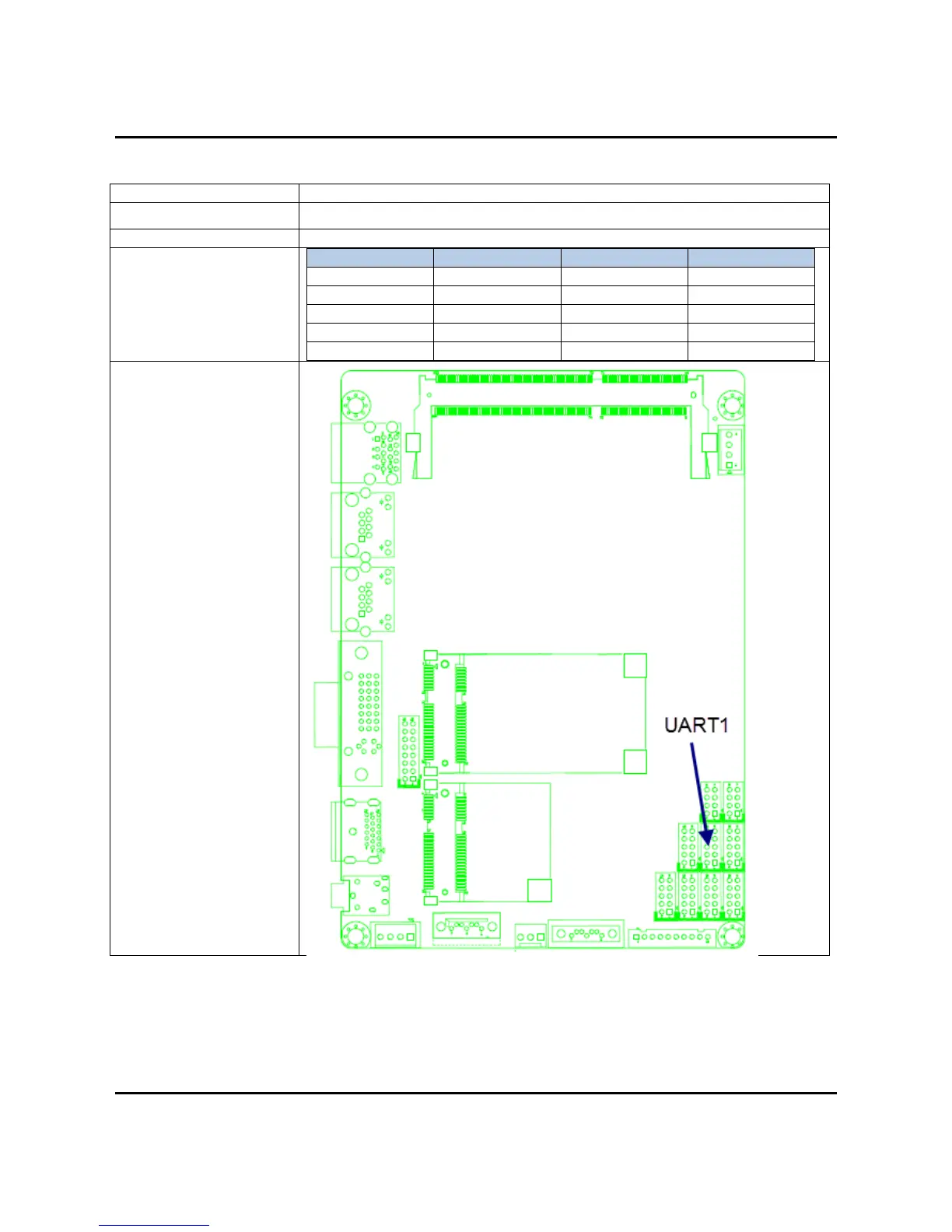

Connector map
