Sintrones SBOX-2600 - USB Connector

4.0 System Installation
User’s Manual
3.0 EXTERNALCONNECTORSPECIFICATION
3.1 USBConnector
Connector size 18 Pin
Connector type Type A
Connector location USB1
Connector pin definition
Pin Signal Pin Signal
1 5VSB 2 USB0_N
3 USB0_P 4 GND
5 SSRX0_N 6 SSRX0_P
7 GND 8 SSTX0_N
9 SSTX0_P 10 5VSB
11 USB1
_
N12USB1_P
13 GND 14 SSRX1
_
N
15 SSRX1_P 16 GND
17 SSTX1_N 18 SSTX1_P

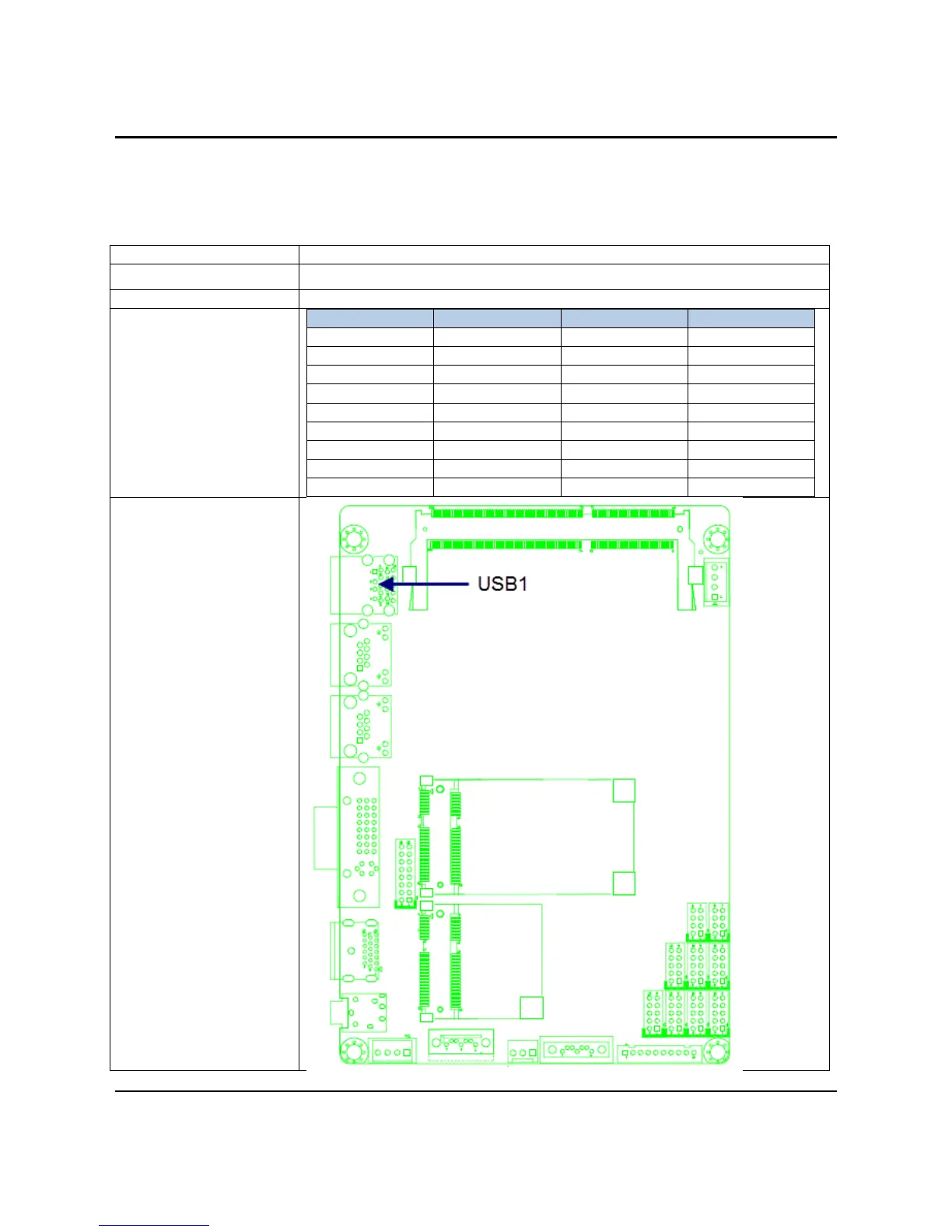

Connector map
