Sintrones SBOX-2600 - Power Input Connector

2.0 Internal Connector Specification
User’s Manual Page 2-18
2.16 PowerInputConnector
Connector size 1 X 4 = 4 Pin
Connector type WAFER 2.54mm-M-180
Connector location PWRIN1
Connector pin definition
Pin Signal
1 +12VSB
2 +12VSB
3 GND
4 GND

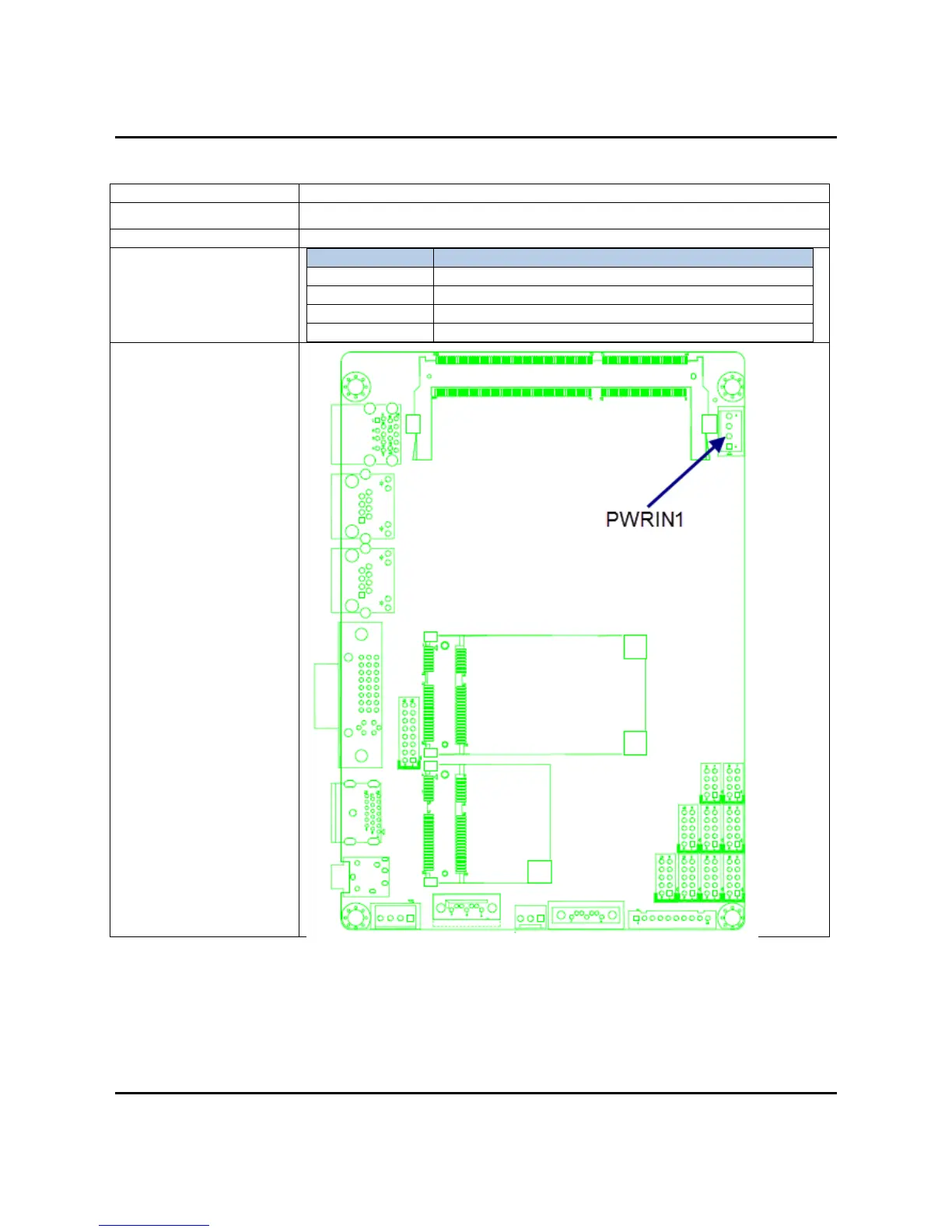

Connector map





