4 Installing and connecting the unit
4.1 Checking the scope of supply
• PerioScan
• PerioSonic handpiece
• Hose for PerioSonic
• PerioSonic set (SIROPERIO PE1, SIROPERIO PE2, SIROPERIO PE3, SIROPERIO 4 PS, tip no. 4L,
5 torque wrenches, tip gauge)
• Power cable
•Foot switch
• Rinsing media tank, large
• Rinsing media tank, small
• Holder for rinsing media tank
• Fresh water supply hose with 2 quick couplings (at unit end and on supply box)
• Operating instructions
• Quick reference guide
• User DVD
• Instruction report
4.2 Attaching the warning label

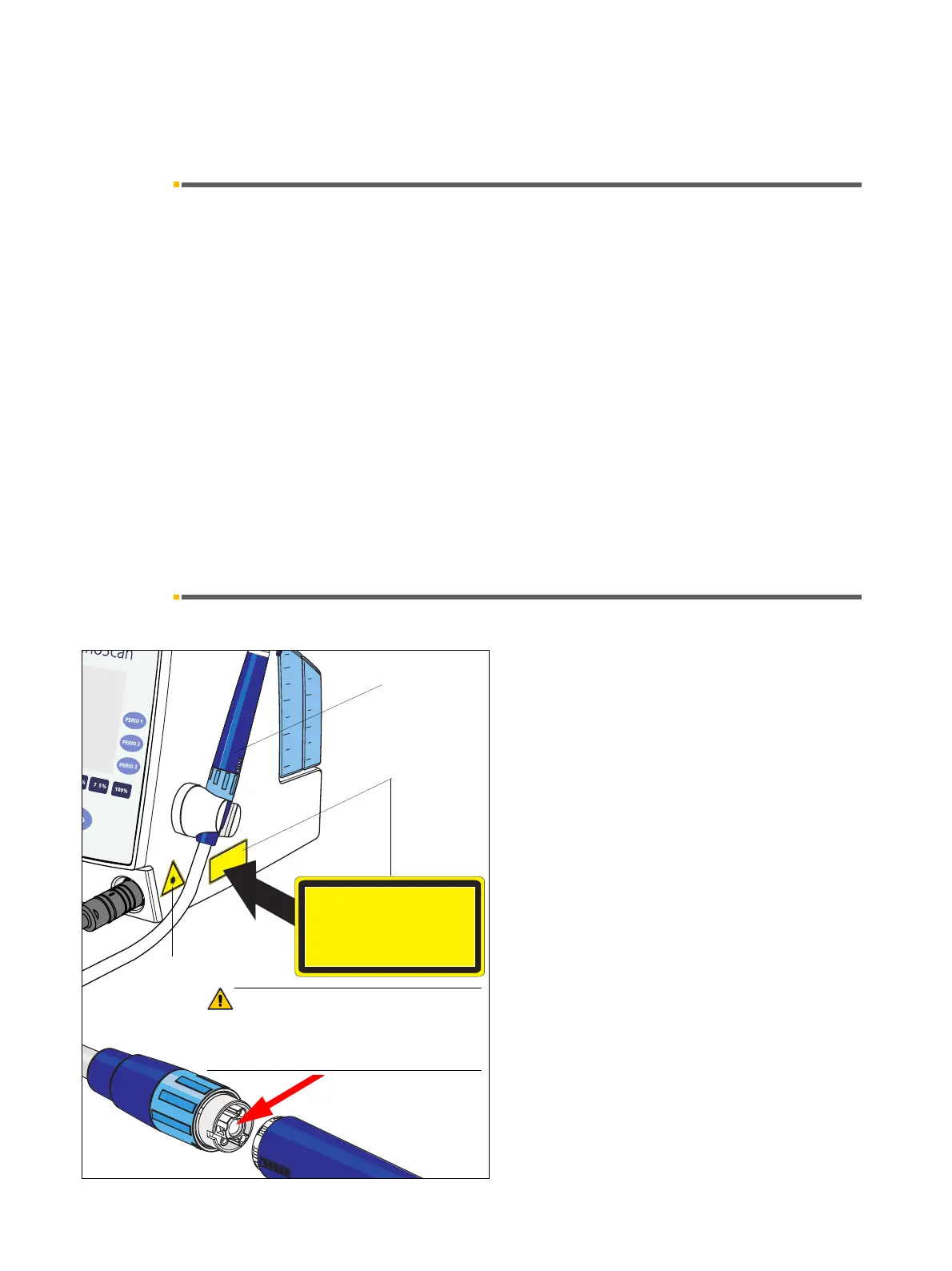

Affix the rectangular laser warning label (A) to the side of
the unit as shown in the illustration.
Do not affix it over the triangular warning label previously
attached (B).
The text on the label must not be concealed by the hand-
piece (C).
Scan
100
ml
400
300
200
100
ml
300
200
La
se
r r
ad
iation
:
D
o
n
o
t stare
in
to
th
e
b
e
a
m
w
h
ile
th
e
h
an
d
p
iec
e
is
d
e
ta
ch
e
d
!
L
ig
h
t-e
m
ittin
g d
io
d
e
c
la
s
s 2
Pe
a
k =
4
6
0
-4
7
0
n
m
P
<
5
m
W
a
lp
h
a
>
2
0
m
r
a
d
IE
C
6
0
8
2
5
(e
d
.
1
.2
)
Laser radiation:
Do not stare into the beam while
the handpiece is detached!
Light-emitting diode class 2
Peak = 460-470nm P < 5mW
alpha > 20 mrad
IEC 60825 (ed. 1.2)
A
B
C
ATTENTION
Laser radiation is emitted from this aperture.
Laser radiation - Do not stare into beam.
Class 2 LED
