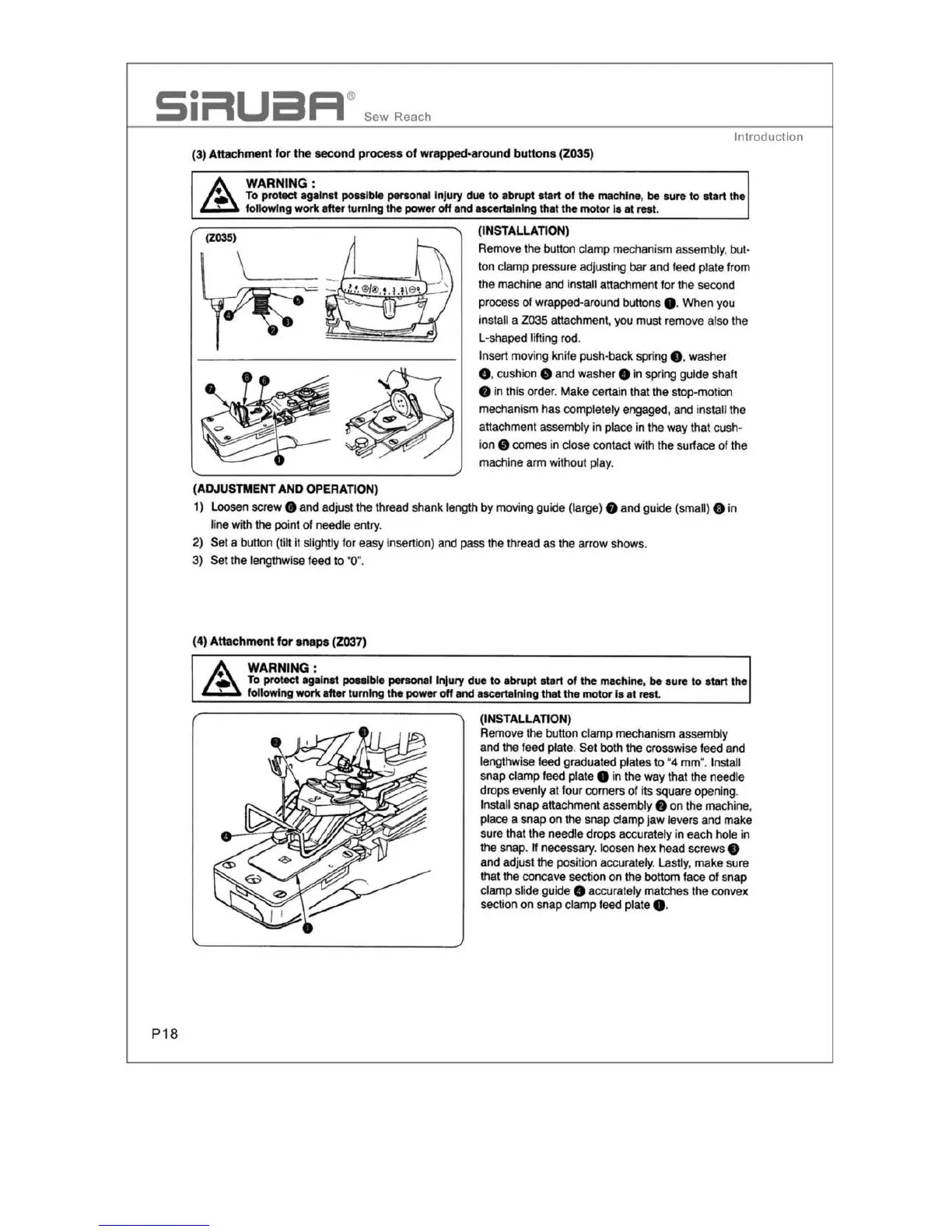

Introduction
(3) Attachment
for
the
second
pr
ocess
of
wrapped-a
ro
und
buttons (Z035)
WARNING :
To
pro
tect
against possible personal Injury
du
e
to
abrupt start
of
the
machine,
be
sure
to
sta
rt
the
fo
llowi
ng
work after turning
the
power
off
and
ascertaining that the motor Is at rest.
(Z035)
L _
(
ADJUSTMENT
AND
OPERATION)
(INSTALLATION)
Remove
t
he
button
clamp mechanism assembly, but-
ton clamp pressure adjusting bar
and
feed plate
from
the machine
and
install attachment for the
second
process of wrapped-around buttons e. When
you
install a 2035 attachment,
you
must
remove also
the
L-shaped lifting
rod
.
Insert moving knife push-back spring
8 , washer
8 , cushion 8
and
washer 8 in
spring
guide shaft
8 in this order. M
ake
certain that the stop-motion
mechanism has completely engaged,
and
install the
attachment assembly in place
in
the way that cush-
ion
• comes in close contact with
the
surface of the
machine
arm without
play.
1)
Loo
sen
screw •
and
adjust the thread shank length by
moving
guide (large) • and guide (small) O in
line with
the
point of needle
entry.
2)
Set
a button (tilt it slightly for easy insertion)
and
pass the thread as
th
e arrow shows.
3) Set the lengthwise
feed
to •o
•.
(4) Attachment
for
snaps
(Z037)
A
WARNING:
To
protect
against possible personal
Injury
due
to
abrupt start
of
the
machine,
be
sure
to
start the
following
wortc
after turning the power off and ascertaining that the
motor
Is
at
rest.
(
INSTALLATION)
Remove
the
button clamp mechanism assembly
and
the feed plate. Set
both
the crosswise
feed
and
lengthwise
feed
graduated plates to "4
mm
".
Install
snap clamp feed plate 8 in the way that
th
e needle
drops evenly at four comers of its square opening.
Install snap attachment assembly
9 on the
machine,
place a snap on the snap ctamp jaw levers
and
make
sure that the needle
dr
ops accurately in each
hole
in
the snap.
If necessary. loosen hex
head
screws e
and adjust the position accurately.
Lastly,
make
su
re
that
the
concave section on the bottom face
of
snap
clamp slide guide
8 accurately matches the convex
section on
snap
clamp
feed
plate e.
