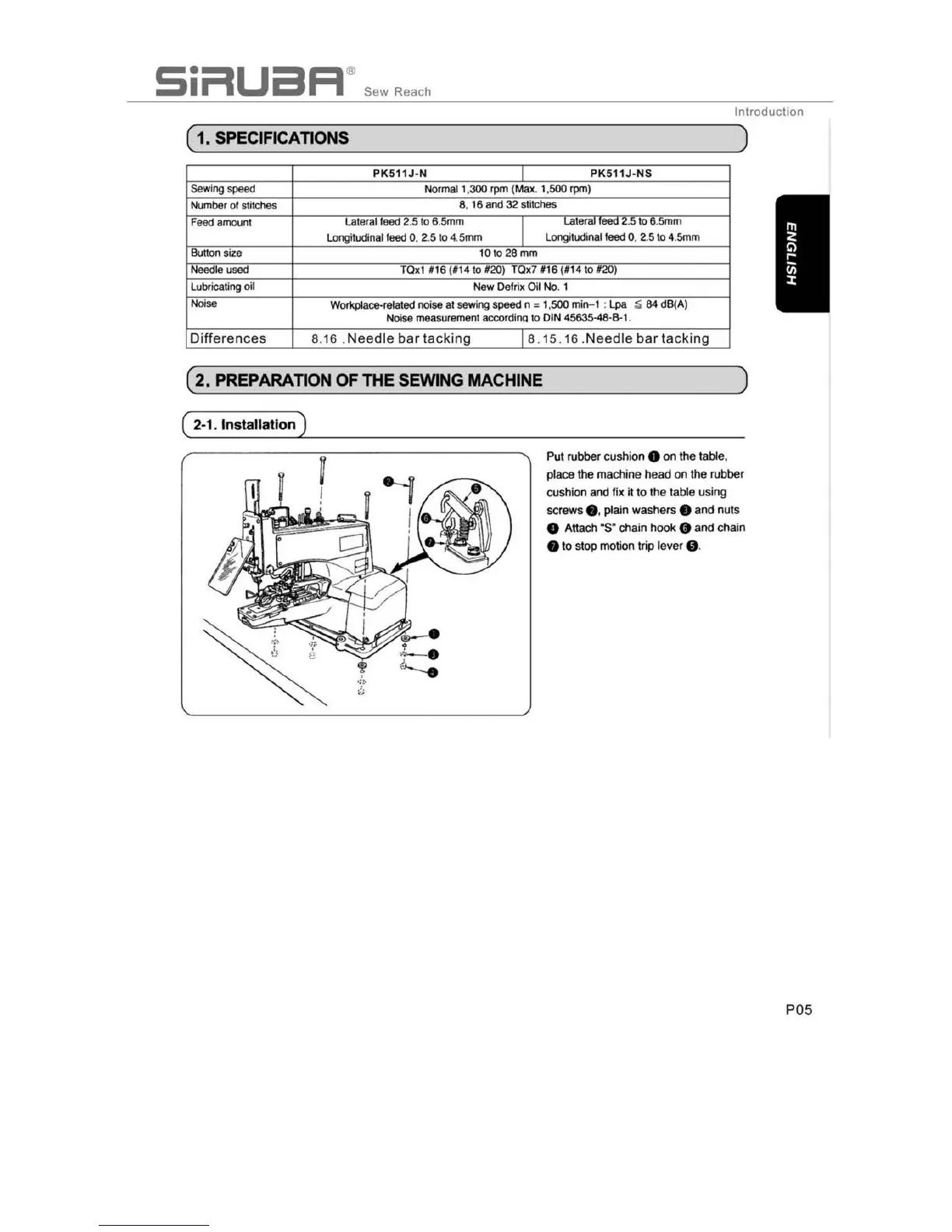

Siruba PK511 - Specifications; Preparation of the Sewing Machine; 2·1. Installation

Sii=IUBA ®
Sew Reach
Int r oduction
(..__ 1_. S_P_E_ CI _ FI _C_ ATI _ O_N_S ______________ __,,)
PK511 J-N
I
PK511J-NS
Sewing speed Normal 1, 300 rpm (Max. 1, 500 rpm)
Number of stitches
8, 16
and 32 stitches
Feed amount
Lateral feed 2.5 to 6.
5mm
I
Lateral 1eeo 2.5 to 6.5mm
Longitudinal feed 0. 2.5
to 4. 5mm
Longitudinal feed O. 2.5 to 4. 5mm
Button size
10 10 28 mm
Needle used
TOx1 # 16 (# 14 to #20) TQx7 l16 (#14 to #20)
Lubricating oil New Oefrix Oil No . 1
Noise
Wor\q>lace-relat ed noise at sew i ng speed n = 1, 500 min-1 : Lpa .:. 84 dB(A)
No ise measurement acc:ordino to DIN 45635-48-8 -1 .
Differences 8. 16 . Needle bar tacking I a. 15. 16 . Needle bar tacking
( ..__2_. P_RE_PARA __ T_IO_N_O_F_T_H_E _SEWI __ NG_MA_C_H_IN_E _______ __,, )
( 2-1. Installation )
Put rubber cushion 8 on the table,
place the machine head on the rubber
cushion and fix it to the table using
screws
9 . plain washers e and nuts
9 Attach •s· chain hook 8 and chain
9 to stop motion trip lever O.
P05
