SIZZIX Eclips - Inserting Blade in Holder; Installing Cutting Blade Holder

7

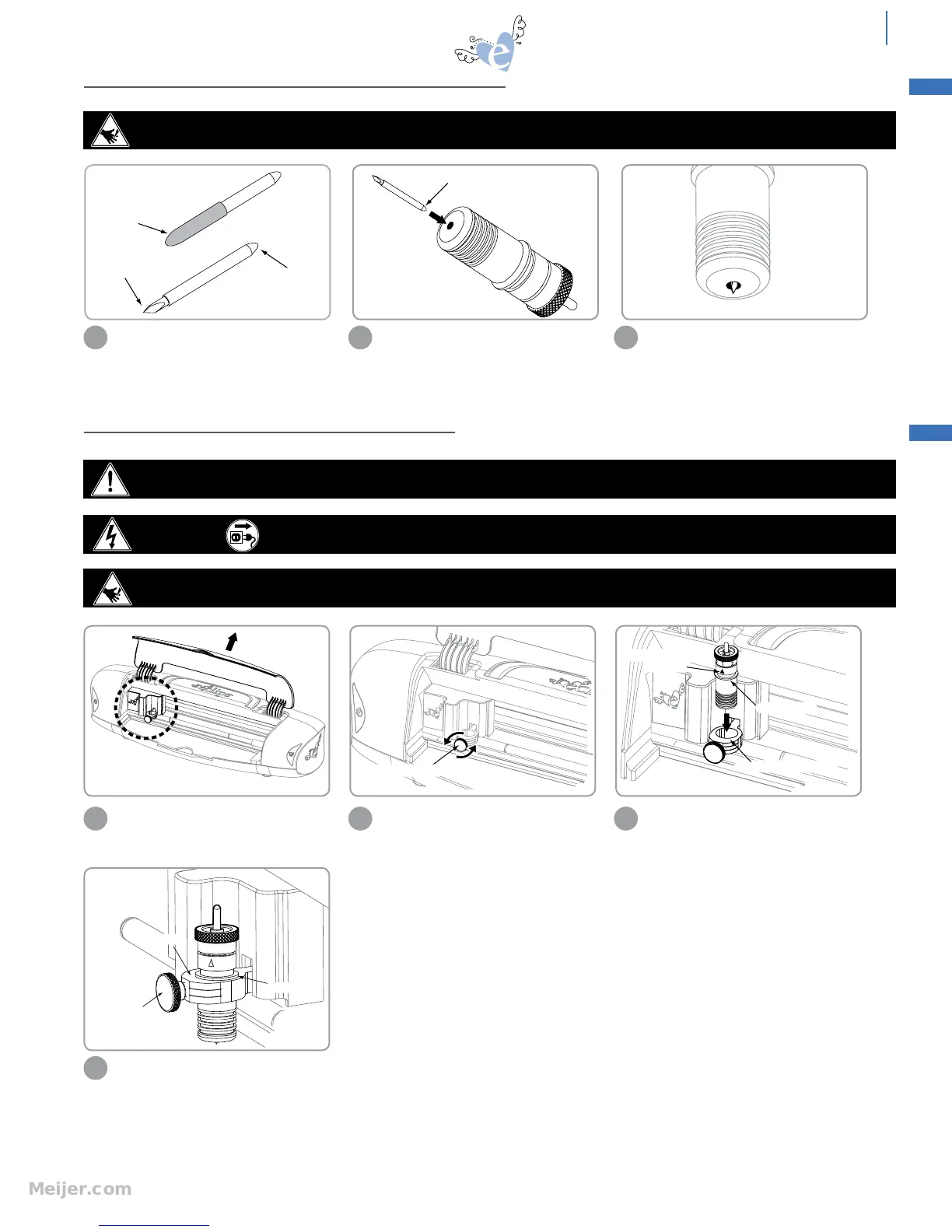

CUTTING BLADE MAINTENANCE
Lift open Machine cover to expose
Carriage and Blade Holder Clamp.
Loosen Clamp by turning Clamp Screw
counterclockwise approximately 1/4 of
a turn. (Important: Spring on end of
Clamp Screw MUST be kept in place.)
Place Blade Holder into Clamp, making
sure that Depth Selection Arrow is
facing out.
1 2 3
Clamp Screw
Top edge of Clamp
Depth Selection
White Ring
Arrow
Angled
Cutting edge
Blue
Safety Cap
Insert this end
into Blade Holder
Non-cutting side
Tighten Blade Holder by turning the
Clamp Screw clockwise until Blade
Holder is secure.
4
Clamp Screw
White Ring
Clamp
set up
CAUTION: CUTTING HAZARD Blade is sharp, handle with care.
WARNING: MOVING PARTS Keep fingers, hair and clothing away.
CAUTION: CUTTING HAZARD Keep fingers away from exposed blade.
CAUTION: Always unplug Machine before removing or installing Blade Holder.
INSTALLING THE CUTTING BLADE HOLDER
Carefully remove Blue Safety Cap from
Blade, exposing angled cutting edge.
Carefully insert non-cutting side of
Blade into hole at bottom of Blade
Holder. Blade is held in place
magnetically.
Note that blade is exposed but barely
visible when inserted properly.
1 2 3
INSERTING BLADE IN BLADE HOLDER
