INSTALLATION AND OPERATING INSTRUCTIONS
SKF Multilog On-line System IMx-16Plus
SKF Multilog On-line System IMx-16Plus
User Manual
Revision Letter A
29 (66)

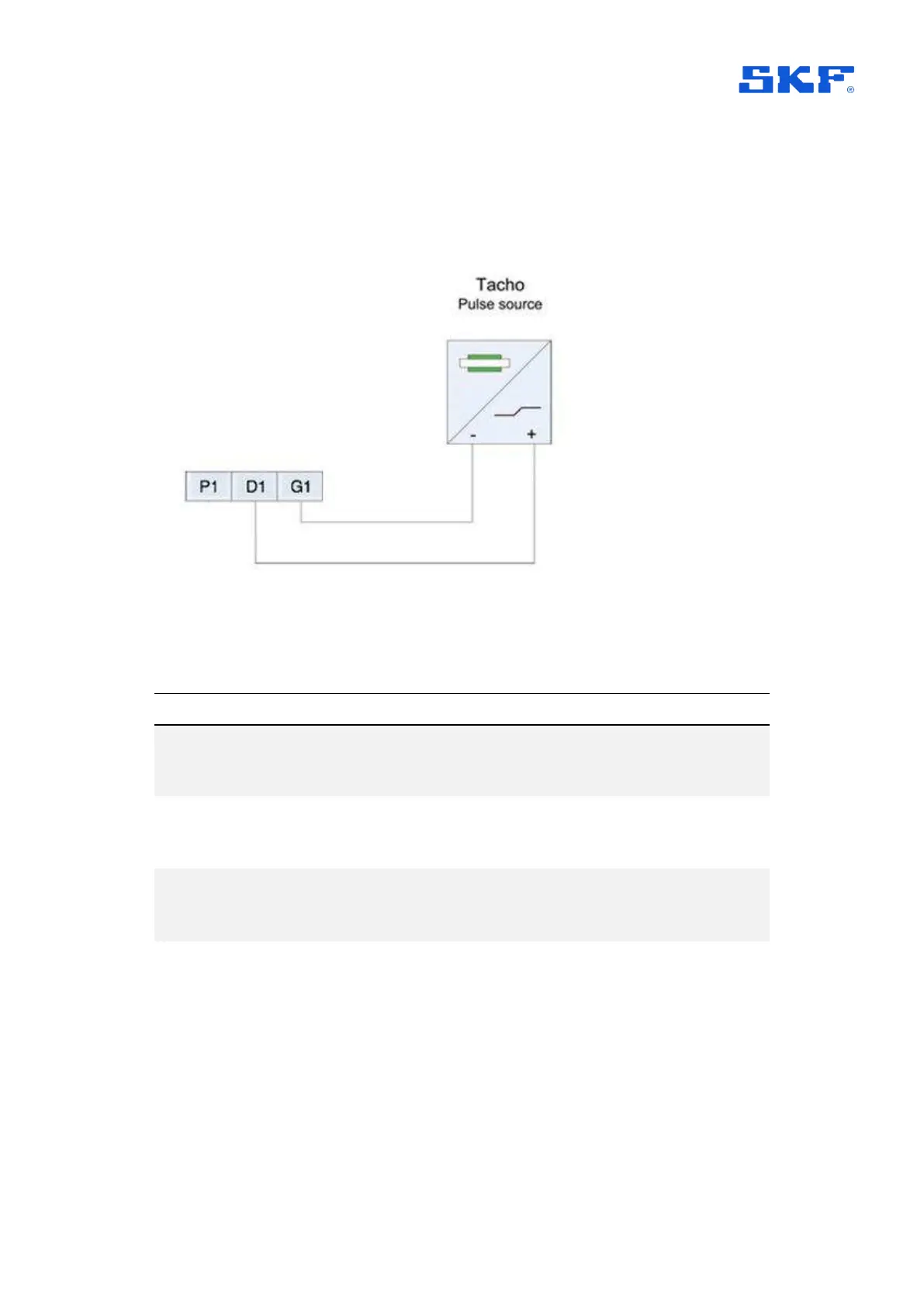

Figure 15 Unpowered or externally powered pulse source, 2-wire, connected to digital input 1
Table 2 Summary of typical connection arrangements for digital inputs and sensors
Sensor type
Wire colour
Wire function
Digital input
2-wire
IMx powered
White
Black
+
-
P
D
G
3-wire PNP
IMx powered
Brown
Black
Blue
+
Output
-
P
D
G
Pulse source
or TTL
External power
(no standard)
+
-
P
D
G
Note: Where it is required to cascade a single sensor signal to multiple digital inputs
on the IMx-16Plus, connect the appropriate D terminals, together.
