INSTALLATION AND OPERATING INSTRUCTIONS
SKF Multilog On-line System IMx-16Plus
SKF Multilog On-line System IMx-16Plus
User Manual
Revision Letter A
The sensor can be connected to the relevant digital input terminals as illustrated in
the following diagrams, Figure 13 to Figure 15. Connect appropriately to the type of
sensor being used.
Note that the different sensor types illustrated in these figures, are supported by all
digital input channels; the channel shown in any particular figure is only an example.

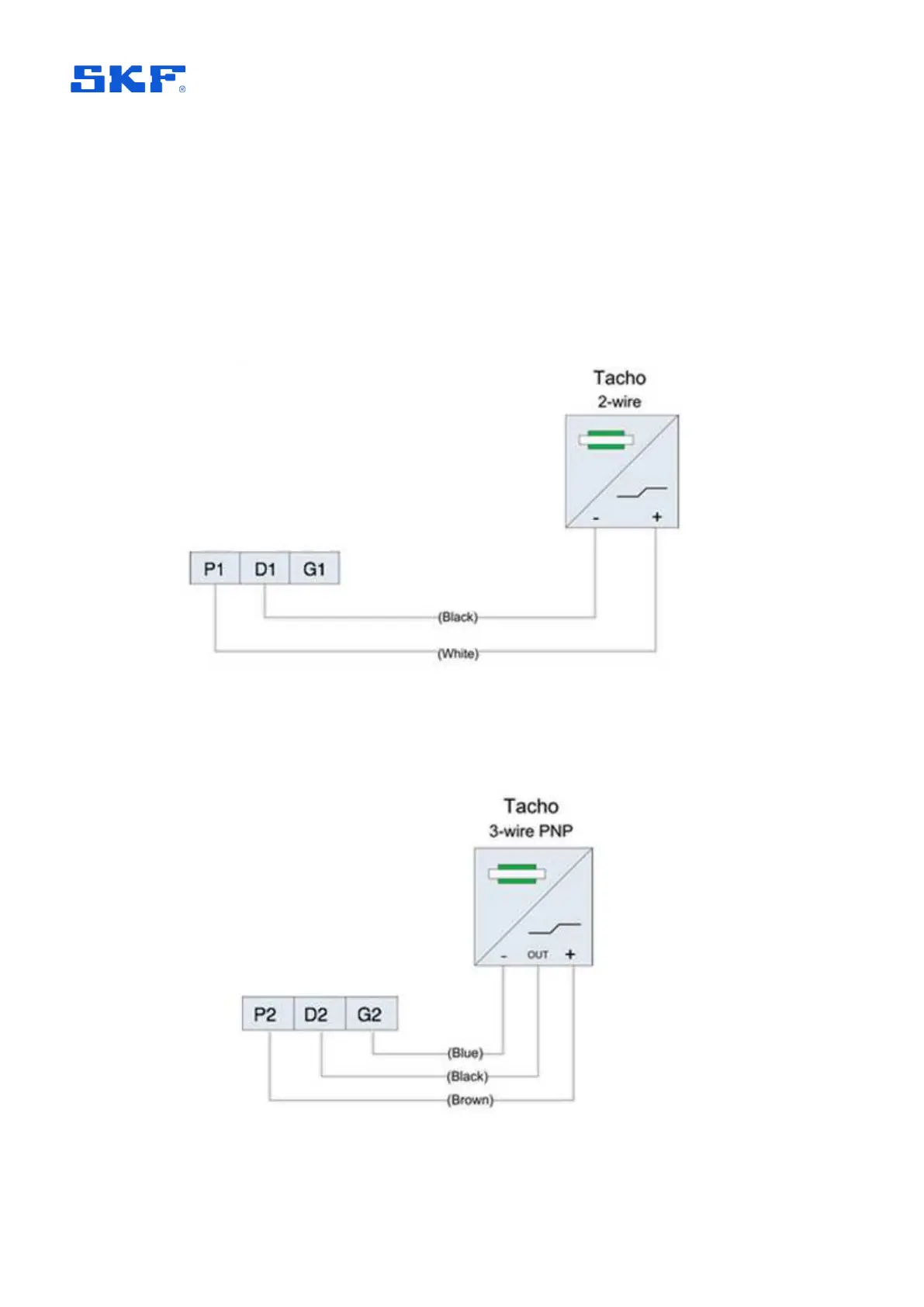

Figure 13 IMx powered, 2-wire sensor connected to digital input 1
Figure 14 IMx powered, 3-wire PNP sensor connected to digital input 2
