Page 43
EN
1
2
3
4
1
2
B C
1 2 3 4 567
X1
BN
RD-BK
BU
PK
BK
BK
VT-GN
CAN-BUS
M12x1
F1
S1
M L+
31 30
15
CS4 (MC)
V4
SL2
RD
KFGS...-...B...
+ + +
––

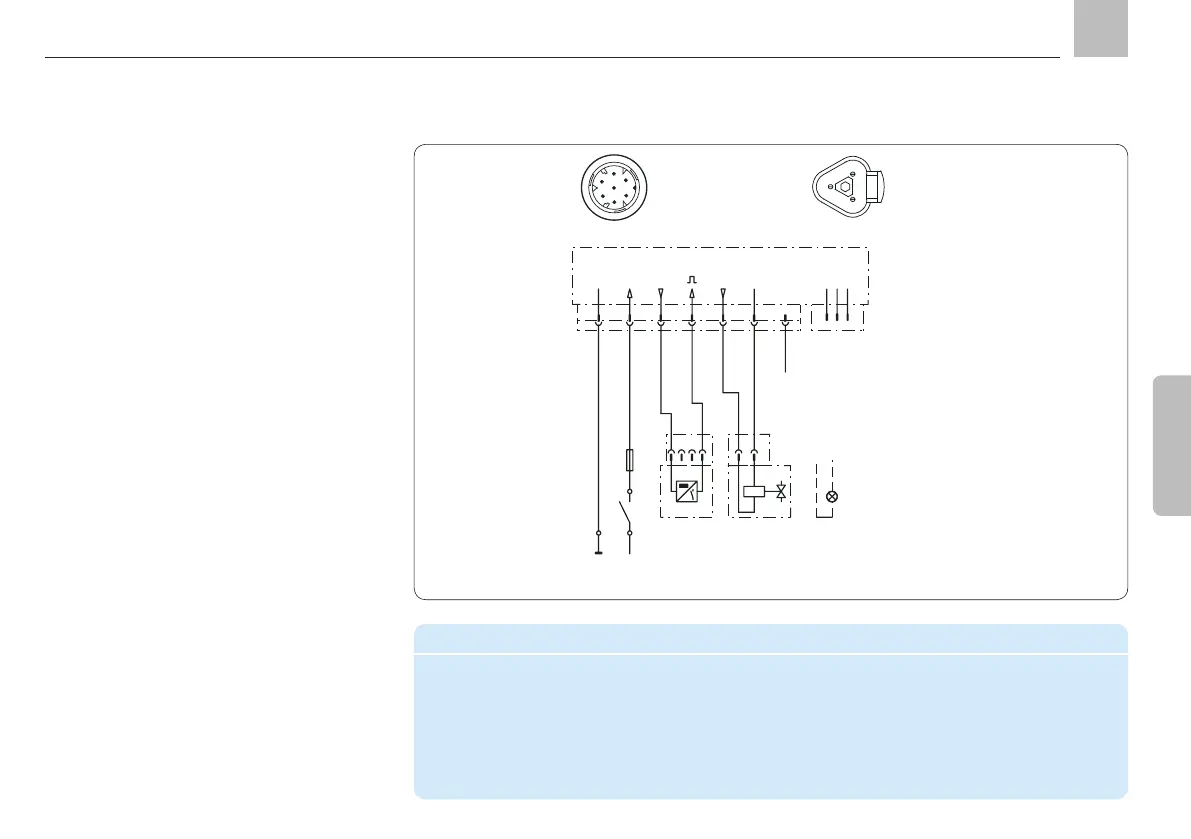

Example of connecting a cycle switch or
machine contact and a reversing valve to a
device with minimum equipment level (without
M12x1 circular connectors) for operating a
progressive feeder system, multiple zones
not used.
Piston detector
Assignment of 7-pin circular connector
2
4
5
3
1
6
7
A
B
C
Legend for connection diagram example with minimum equipment level
CS4 Piston detector 4 V4 Valves 4
MC Machine contact SL2 "Fault" indicator light can alternately
L+ + Supply voltage potential be operated in place of valve 4)
F1 Fuse S1 Switch
Assignment of CAN bus plug
V.. = Reversing valves
