ST-102-C2P control
centre compo
nents

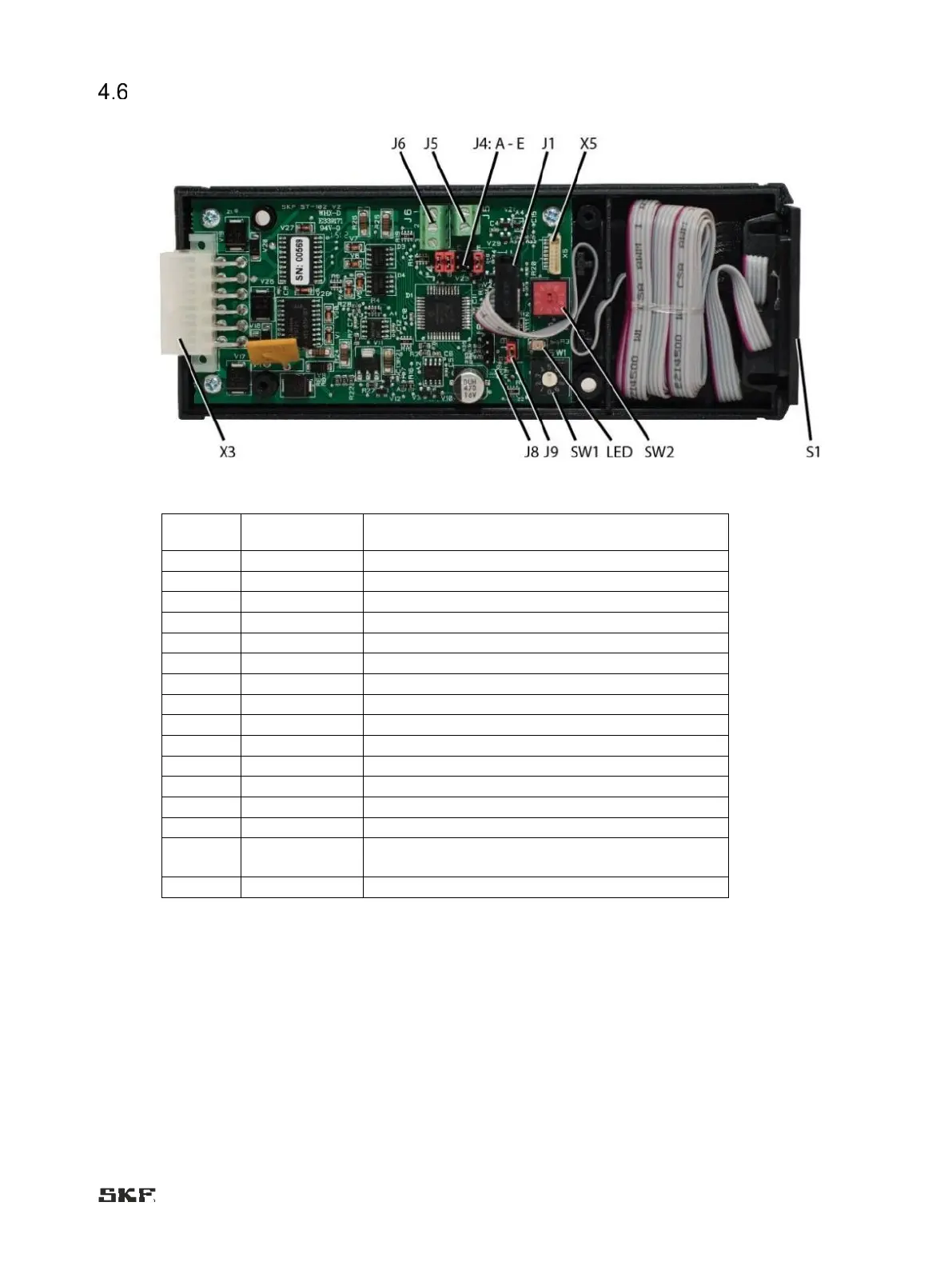

Image 1.
ST102 control centre com
ponents
Symbol
Component
Function
S1
Button
User interface
J1
Connector
User interface connector
J4A
Jumper
Programme selector switch
J4B
Jumper
Programme selector switch
J4C
Jumper
Programme selector switch
J4D
Jumper
Programme selector switch
J4E
Jumper
Programme selector switch
J5
Screw terminal
No activity ST-102-C2P
J6
Screw terminal
External alarm indicator connector
J8
Jumper
Lubrication schedule table selector switch
J9
Jumper
Extra function selector switch
SW1
Rotary switch
No activity ST-102-C2P
SW2
Rotary switch
No activity ST-102-C2P
LED
LED indicator
Indicator
X3
Connector
Power supply and
pump control
X5
Connector
Programming connector
18
20
Table of Contents
Masthead
3
Table of Contents
4
Safety Alerts, Visual Presentation, and Layout
5
Safety Instructions
6
General Safety Instructions
6
General Electrical Safety Instructions
6
General Behaviour When Handling the Product
6
Intended Use
6
Persons Authorized to Use the Product
7
Foreseeable Misuse
7
Referenced Documents
7
Prohibition of Certain Activities
7
Painting Plastic Components and Seals
7
Safety Markings on the Product
7
Notes on the Type Plate
8
Notes on CE Marking
8
Notes Related to the UKCA Marking
8
Note on China Rohs Mark
8
Emergency Shutdown
8
Assembly, Maintenance, Fault, Repair
9
First Start-Up, Daily Start-Up
9
Delivery, Returns, Storage
10
Delivery
10
Return Shipment
10
Storage
10
Storage Temperature Range
10
Lithium Batteries
10
Cleaning
11
Basics
11
Interior Cleaning
11
Exterior Cleaning
11
SKF ST-102-C2P Control Centre
12
Operation
12
Use of the Function Button
12
Channel Selection and Operation of the LED Indicators
12
Indicators above the Function Button
13
Starting the Functions
14
Changing Lubrication Parameter Settings Using the Function Button
15
Setting the Lubrication Cycle
16
Setting the Maximum Pressurisation Time
17
Setting the Progressive Distributor Pulse Count Setting
18
Saving the Set Values and Exiting the Setting Mode
18
Exiting the Setting Mode Without Saving Settings
18
ST-102-C2P Control Centre Components
19
Settings of the Lubrication System
20
Lubrication Programme Selector Switches
20
Electrical Connections
21
ST-102-C2P Power Input and Signal Connector, X3
21
External Alarm Indicators (J6)
21
Technical Information
22
Troubleshooting Table
23
Appendix
25
Wiring Diagram
25
China Rohs Table
26
