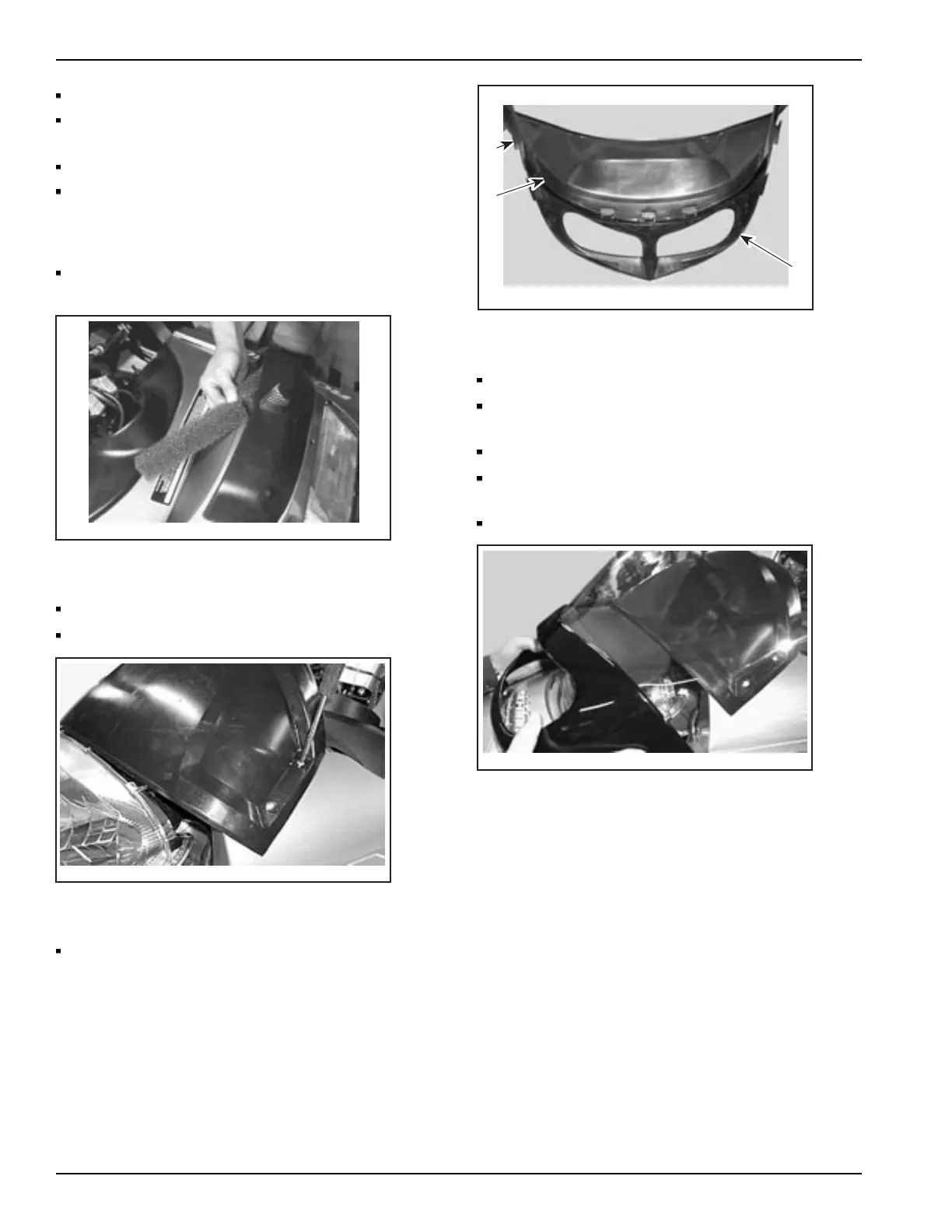

SET-UP
Reinstall plastic plate.
Secure with latches, clips and nuts (for
rubber expansion nuts).
Reinstall headlamp molding.
Make sure to properly position lower edge of
plastic molding under head lamp.
Model(s): WT/SWT/WT LT Only
Secure inside plastic hood with supplied green
clips (if not already secured).
A29H0Y6
Model(s): All except TUV
Addfoaminsidecover.
Take care to position foam correctly.
A29H1D6
Model(s): TUV 600 HO SDI Only
Install and secure air intake dashboard cover
using 4 screws from predelivery kit.
A32H2M6
1
3
2
Model(s): All TUV
Remove the headlamp protector [
[[
[1]
]]
] from hood.
Unclip the inner protector [
[[
[3]
]]
] from the
headlamp protector [
[[
[1]
]]
].
Remove protective films from the windshield [
[[
[2]
]]
].
Insert tabs of headlamp protector [
[[
[1]
]]
]in
windshield square holes.
Clip the inner protector [
[[
[3]
]]
] in place.
A29H1E6
Model(s): TUV 600 HO SDI Only
N
NN
NO
OO
OT
TT
TE
EE
E:
::
: Take care to slide the windshield support
underneath the air intake dashboard cover.
12 / 24 2006-1 Predelivery
