UNCRATING
UNCRATING
Procedure
3
2
1
A00A2F6

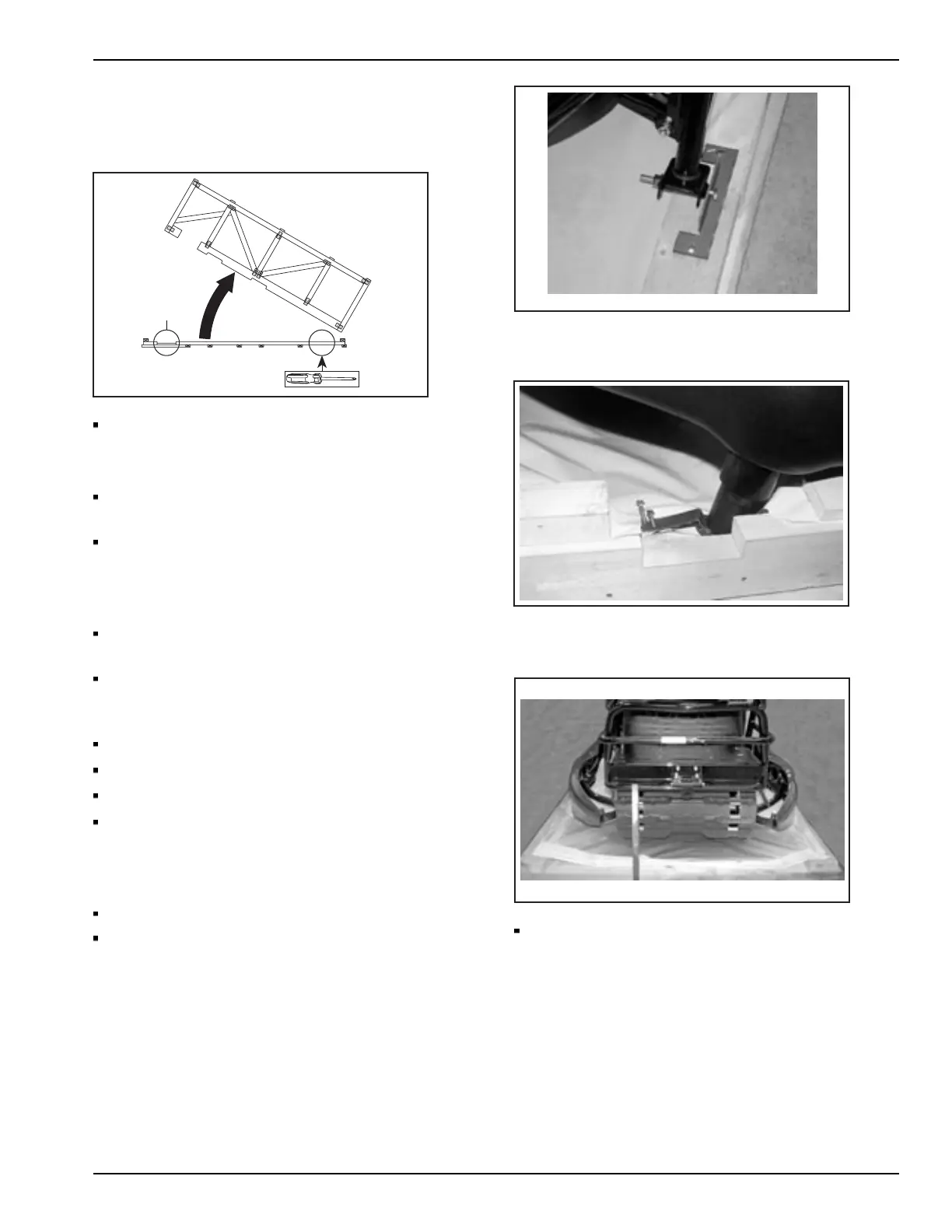

Carefully lay the crate on its bottom.
CAUTION: Allowing the crate to drop may
cause serious damage to the vehicle.
Using a drill or a screwdriver, remove all screws
[
[[
[1]
]]
] retaining crate cover to crate base.
Tilt [
[[
[3]
]]
] the crate cover toward the front
or the rear of the vehicle.
N
NN
NO
OO
OT
TT
TE
EE
E:
::
: There is a notch at the front of the crate
that indicates the front of the vehicle [
[[
[2]
]]
].
Lift the crate cover slowly to avoid
damaging the vehicle.
Remove the predelivery kit and parts to be
installed from part box or from under the seat
compartment according to the model.
Detach skis from crate base.
Discard screws and washers.
Remove polyethylene foam protective sheets.
If applicable, detach windshield from seat.
CAUTION: Make sure vehicle is properly
supported before removing ski legs and rear
suspension from crate brackets.
Detach the ski legs from the crate base.
Discard screws.
A29G12A
Model(s): TUV and SUV
Model(s): All Models except TUV and SUV
A29F166
Remove the rear retaining strap.
Predelivery 2006-1 3 / 24
