FINAL PREPARATION
A32A1N6

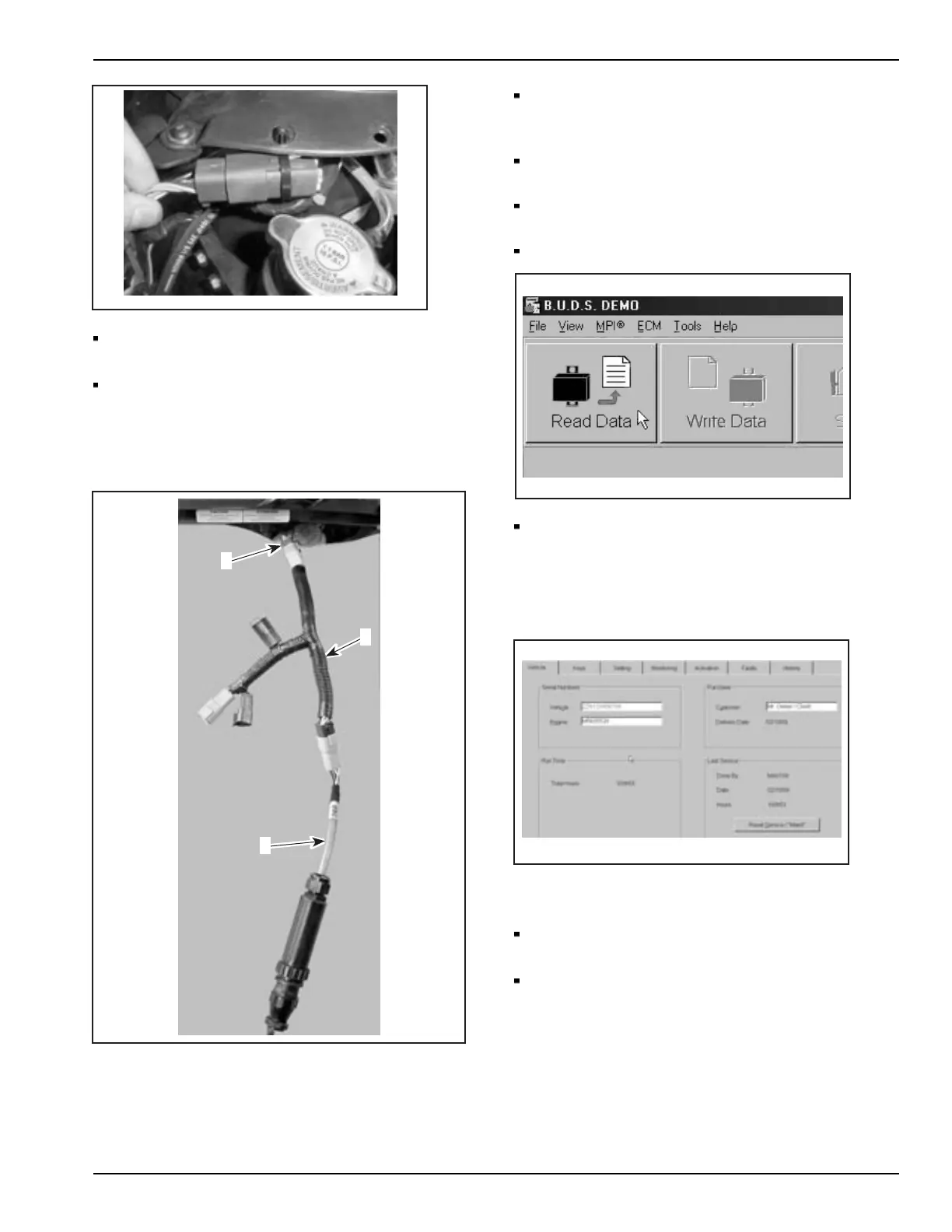

Connect power supply harness [
[[
[1]
]]
],
(P/N 529 035 869), to 6 pin connector [
[[
[2]
]]
].
Connect the 6 pin diagnostic cable [
[[
[3]
]]
]to
power supply harness [
[[
[1]
]]
].
N
NN
NO
OO
OT
TT
TE
EE
E:
::
: Injection vehicles already have a 12 V
battery; they do not need any external 9 V or 12 V
power to allow programming and troubleshooting.
A33E0YA
2
3
1
N
NN
NO
OO
OT
TT
TE
EE
E:
::
: The use of the power supply harness [
[[
[1]
]]
]
will keep the vehicle's ECM ON. Not using it will
make the ECM shut off after a few seconds.
Select the vehicle’sprotocolinCHOOSE
PROTOCOL from the MPI menu. The
protocol is KW 2000.
Turntheengineshutdownswitchtothe
engine off position.
Insert the grey DESS cap (P/N 529 035 896)
onto the vehicle DESS post.
Press the start/stop button to wake up the ECM.
A32A1O6
Click on the READ DATA from the tool
bar to initiate communication and to read
the content of the ECM.
B.U.D.S. (Customer Name)
A32A1P6
Model(s): TUV Only
Click on the VEHICLE tabtoopenthe
vehicle information page.
Type the name of the customer in the
CUSTOMER zone.
N
NN
NO
OO
OT
TT
TE
EE
E:
::
: After you are finished typing the
name, B.U.D.S. automatically updates the
delivery date on the screen.
Predelivery 2006-1 17 / 24
