SET-UP
– flat washers [
[[
[2]
]]
]and[
[[
[5]
]]
]
– flat washers (spacer) [
[[
[4]
]]
].
Torque to 11 N•m(97 lbf•in).
N
NN
NO
OO
OT
TT
TE
EE
E:
::
: A wire route along handlebar. To
avoid pinching it, make sure to keep wire
outofretainingclip.

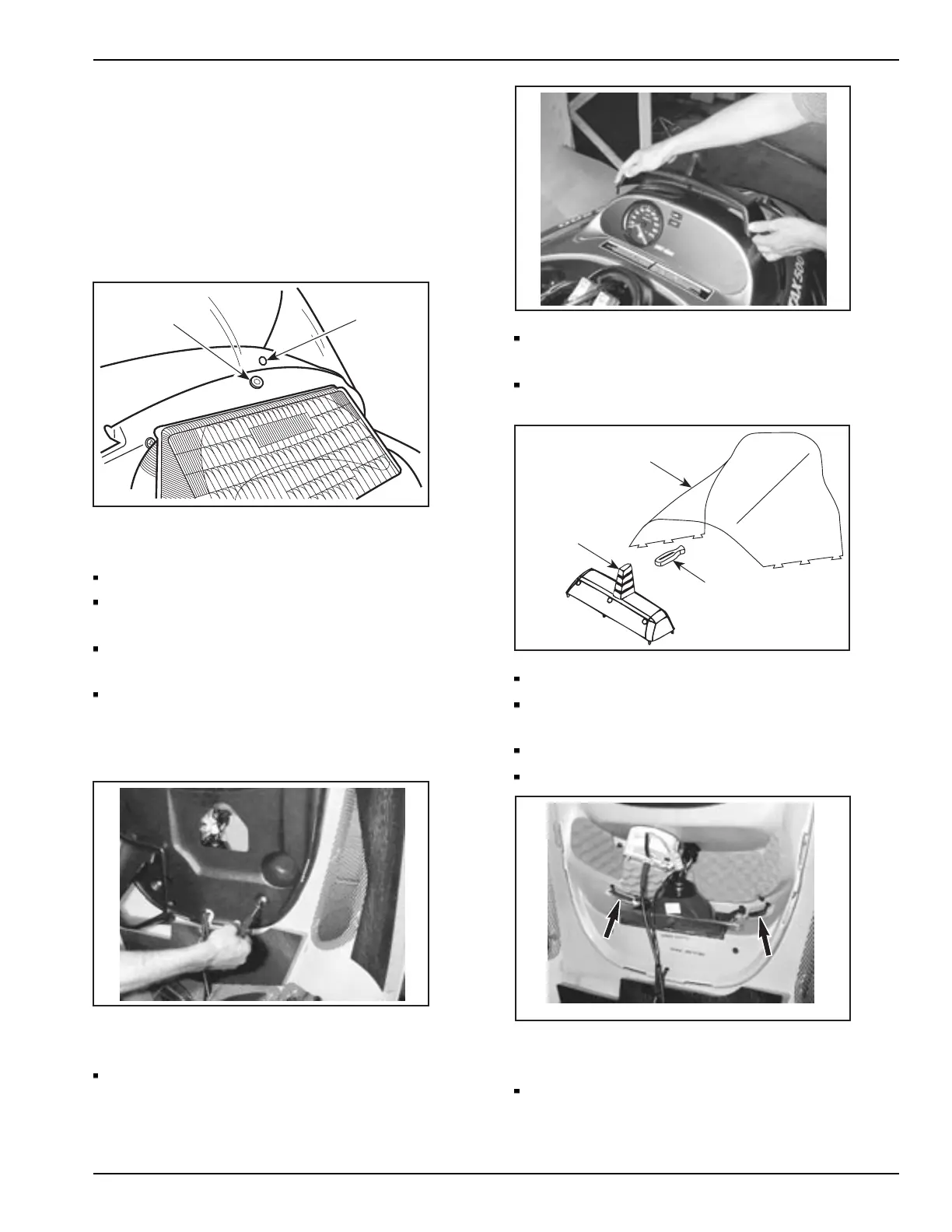

Windshield
1
2
A29H066
Model(s): All except TUV
Remove headlamp molding.
Install rubber expansion nut [
[[
[1]
]]
]inhole
above headlamp.
Line up hole in windshield [
[[
[2]
]]
] with rubber
expansion nut and install screw with cup.
Tighten slightly so that rubber expands
inside hood.
N
NN
NO
OO
OT
TT
TE
EE
E:
::
: Skandic SUV model have two
rubber expansion nuts.
Model(s): WT/SWT Only
Remove plastic plate from hood.
Install air intake cover with filter and rubber
support assembly in predrilled holes on the hood.
Retain with 4 supplied push nuts, using
2 end pins on each side.
2
1
3
Pry out headlamp molding.
Install air intake cover with filter, rubber
support and push nuts [
[[
[1]
]]
].
Install windshield [
[[
[2]
]]
].
Install latches (10) [
[[
[3]
]]
].
A29H0X6
Model(s): All except TUV
Install windshield and secure with latches
inside hood.
Predelivery 2006-1 11 / 24
