Screw drive belt installer/remover in the free threaded hole and tight-
en to open the pulley. Remove belt.

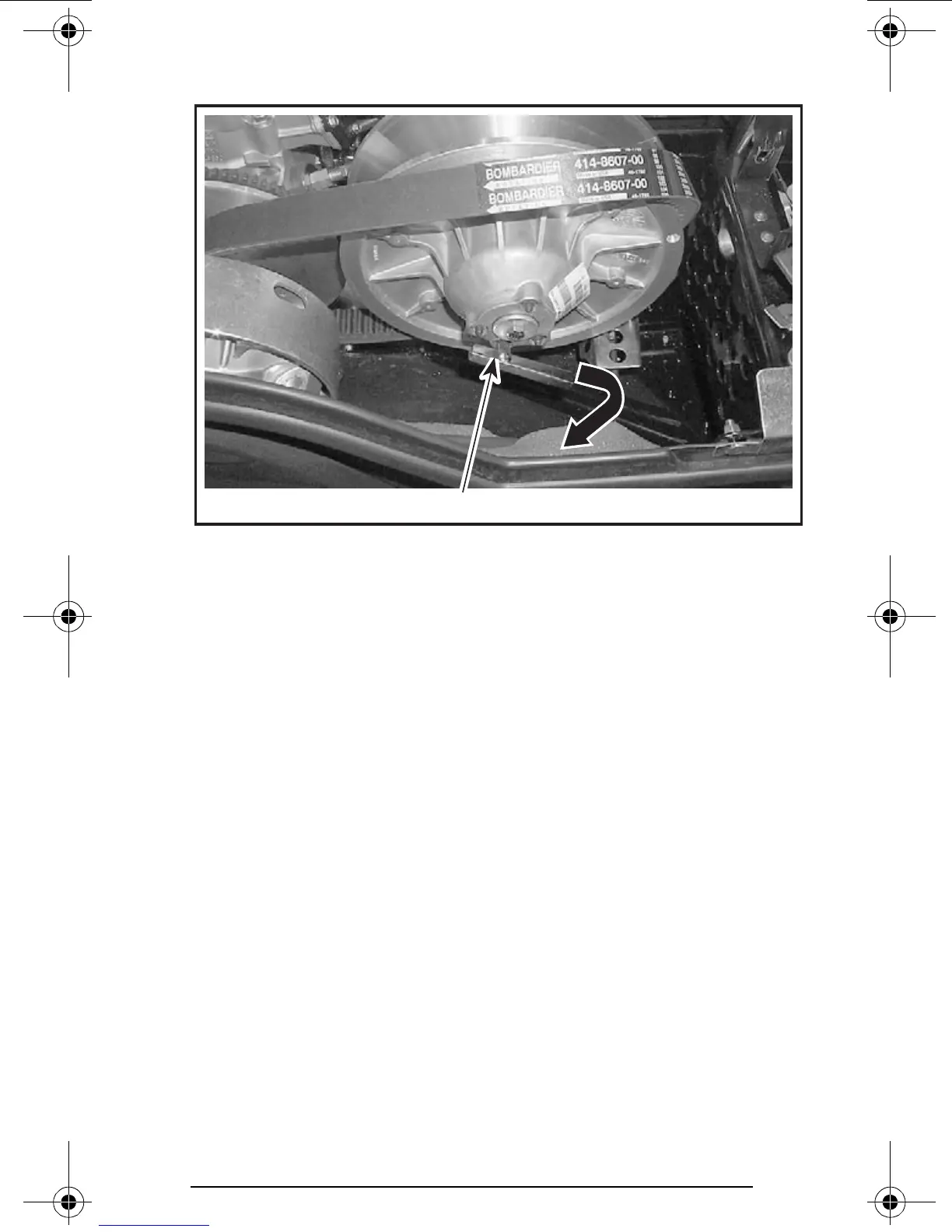

TYPICAL
1. Tighten to open pulley
Slip the belt over the top edge of the sliding half of driven pulley, as
shown in previous photo.
1
A32D13A
