124

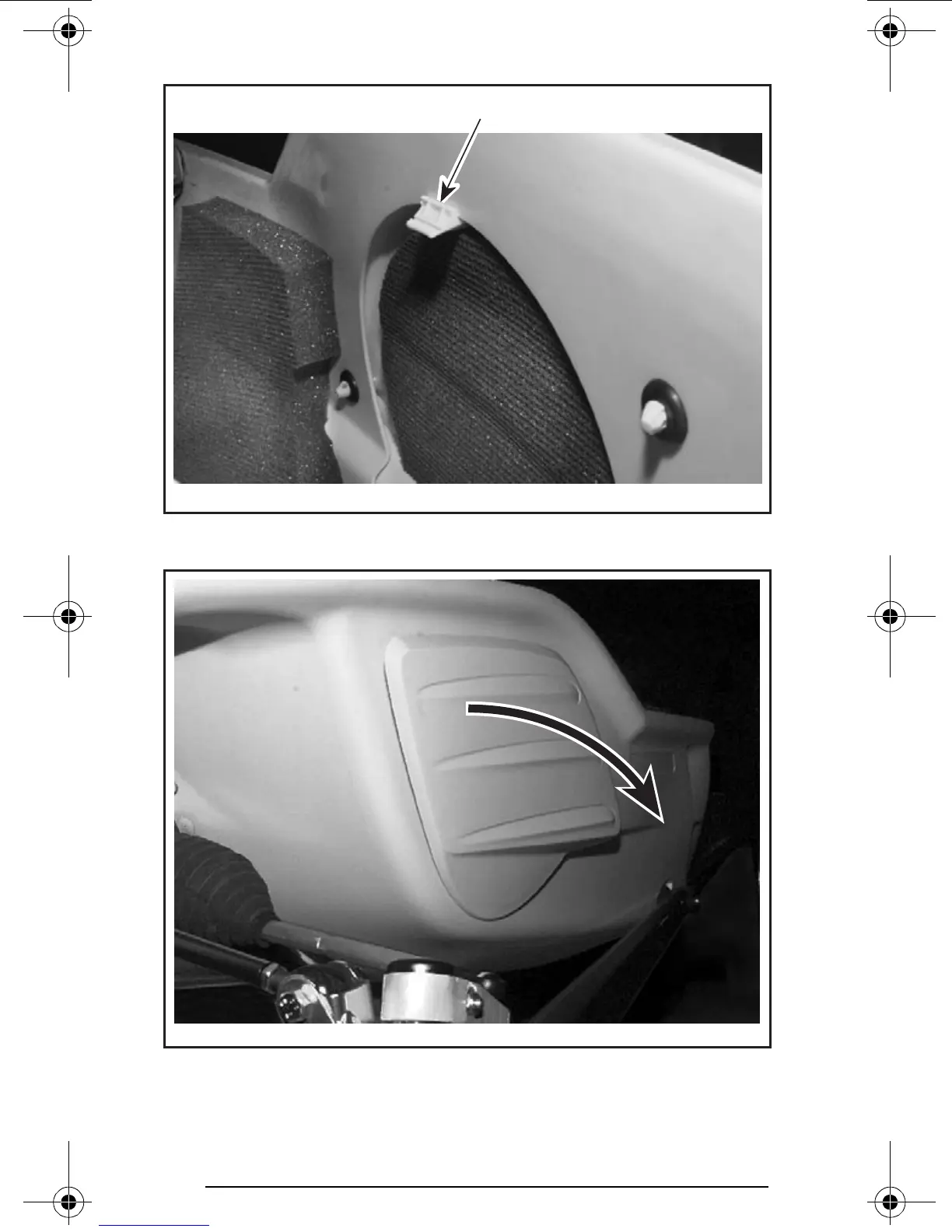

Remove access panel from bottom pan.

1. Push tab down and remove panel out of bottom pan

PULL PANEL OUT OF BOTTOM PAN

A32H07A

A32H06A
