Ski-Doo Summit - Page 142

To Next Page

To Previous Page

140

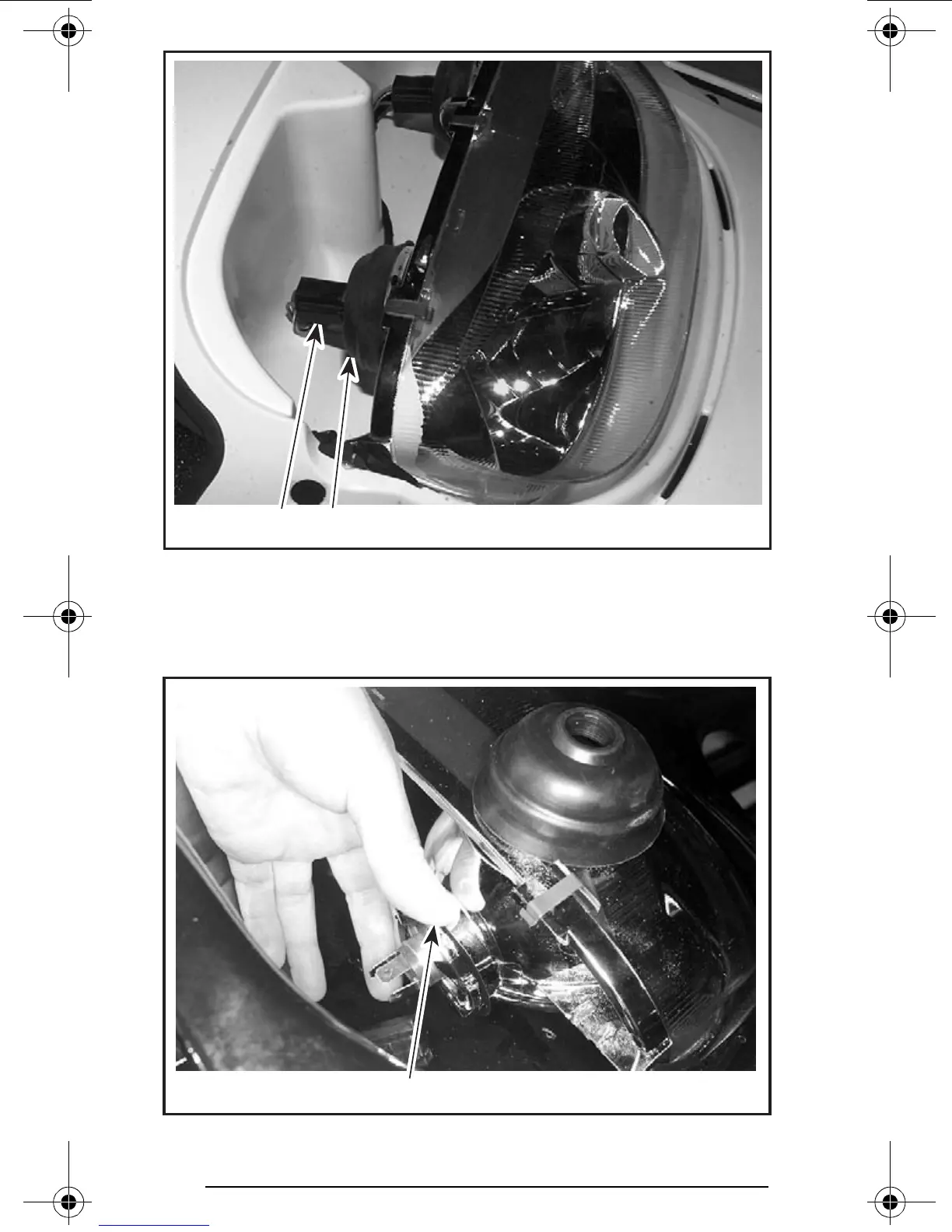

1. Bulb connector

2. Rubber boot

Turn bulb locking ring counterclockwise to remove it. Detach the bulb

and replace. Properly reinstall parts.

1. Locking ring

A32E02A

1 2

A30E05A

Mmo2003-003a.book Page 140 Tuesday, March 19, 2002 2:22 PM
