Instrument(s)

Fan-Cooled Models Only

Remove air duct from underneath hood.

TYPICAL

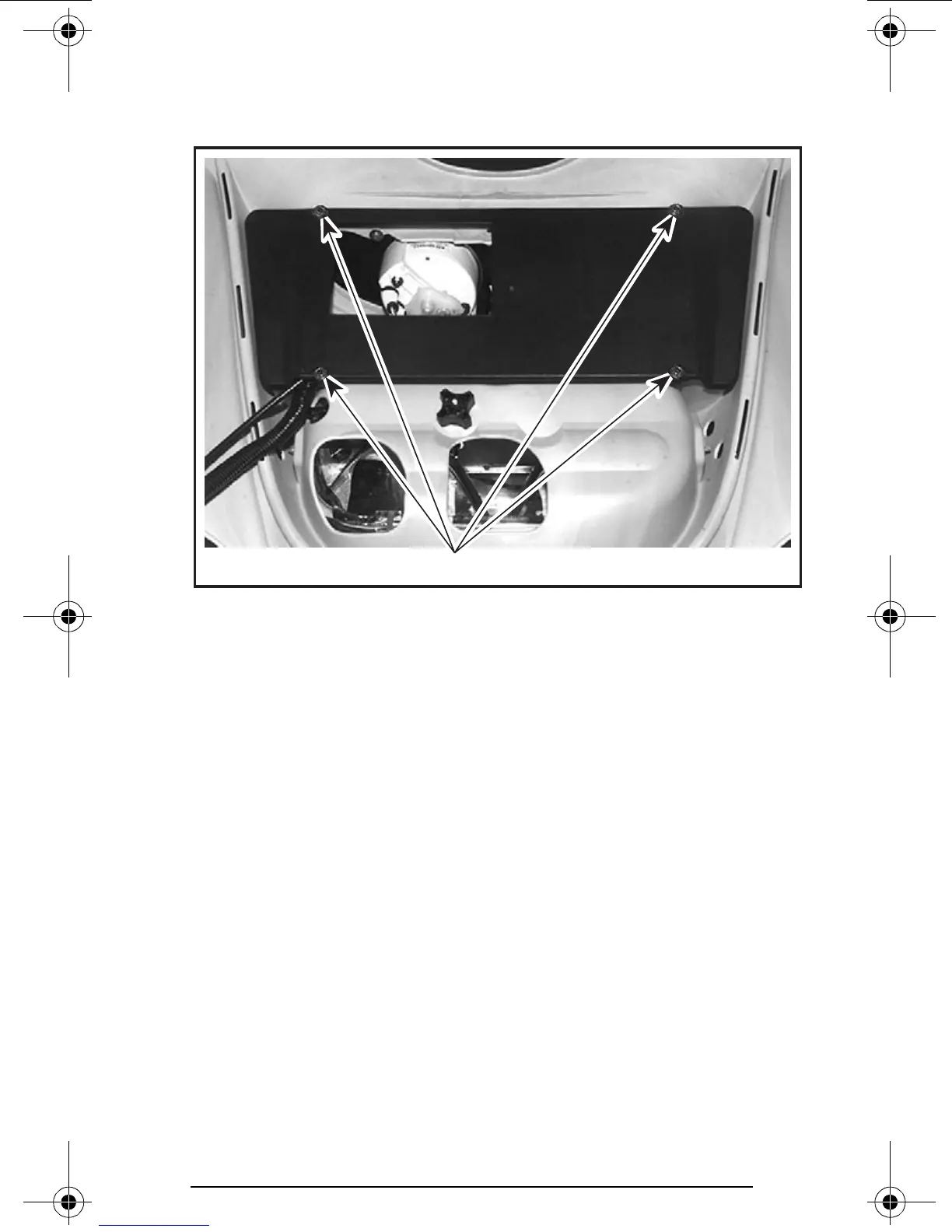

1. Remove these screws

A32E03A
