142
Bulb socket is always behind the instrument under a black rubber boot.
Pull rubber boot and socket to expose bulb. Pull bulb out of socket.

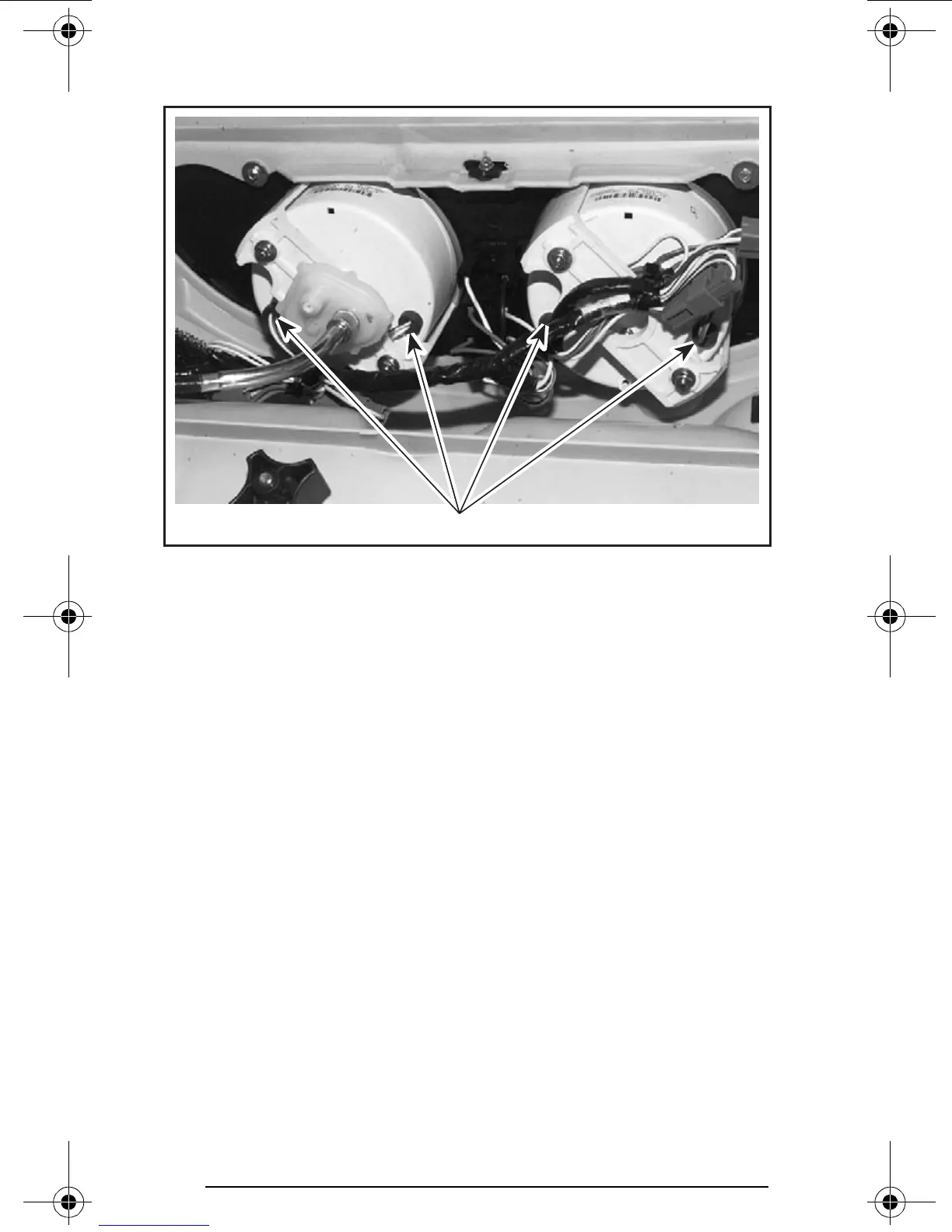

TYPICAL — ALL MODELS
1. Instruments sockets
Taillight
All Models
If taillight bulb is burnt, expose the bulb by removing the red plastic lens.
To remove, unscrew the 2 lens screws.
1
A32E04A
